Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2HW-BL202MSWITCH SNP ACT SPST-NC 0.1A 125V |
133 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
V7-1A38E9-201-2SWITCH SNAP ACT SPST-NC 5A 125V |
173 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 25gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.015" (0.38mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
83181001SWITCH SNAP ACTION SPDT 6A 250V |
612 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
D2HW-C263MSWITCH SNP ACT SPST-NO 0.1A 125V |
433 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
E3111CAAAASWITCH FRIDGE DOOR ON-MOM |
534 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

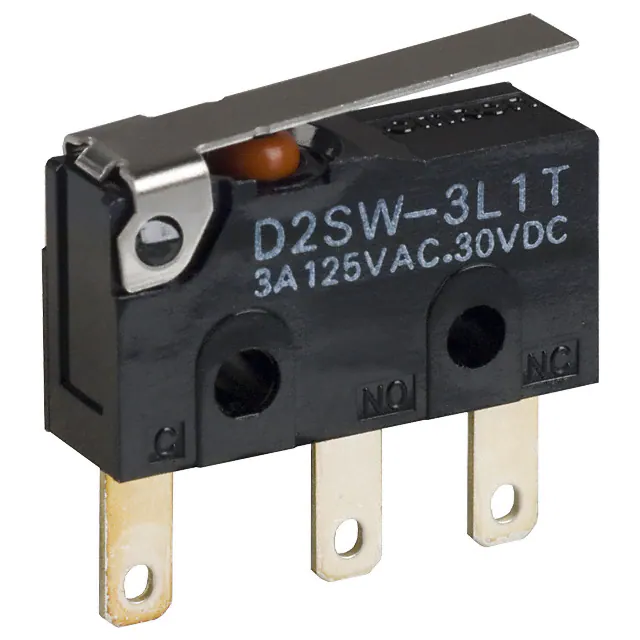

D2SW-3L12DSSWITCH SNAP ACT SPST-NC 3A 125V |
409 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NC | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
V7-9W2AE9-048SWITCH SNAP ACT SPST-NO 15A 125V |
144 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 4.000gf | 0.602" (15.3mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.125" (3.2mm) | -40°C ~ 177°C |
|
|
ASQ10237SWITCH SNAP ACT SPST-NO 0.1A 30V |
200 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|

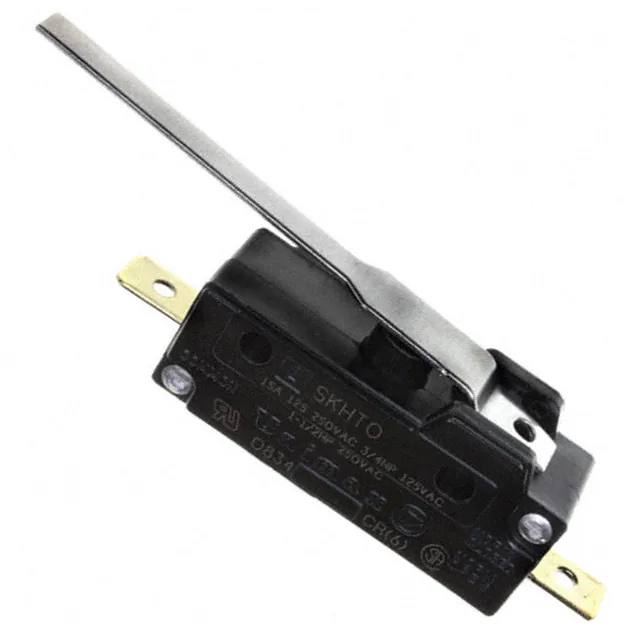

ASKHC2T04AYSWITCH SNAP ACT SPST-NO 15A 125V |
574 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
VM3SCGF1802L02SWITCH LIMIT SPDT 10A 125V |
197 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
D2D-1100SWITCH SNAP ACTION SPDT 16A 250V |
173 |
|
Datasheet |
D2D | Bulk | Active | SPDT (DB/DM) | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.468" (11.9mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
VM3SCGF1802L01SWITCH LIMIT SPDT 10A 125V |
138 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 140gf | 50gf | 0.807" (20.50mm) | 0.100" (2.5mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
E3111AAAABSWITCH DETECTOR SPDT 5A 250V |
1,064 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
V15W2-EZ200A05-W21SWITCH SNAP ACTION SPDT 5A 125V |
934 |
|
Datasheet |
V15W2 | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 40gf | 0.825" (21.0mm) | 0.047" (1.2mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

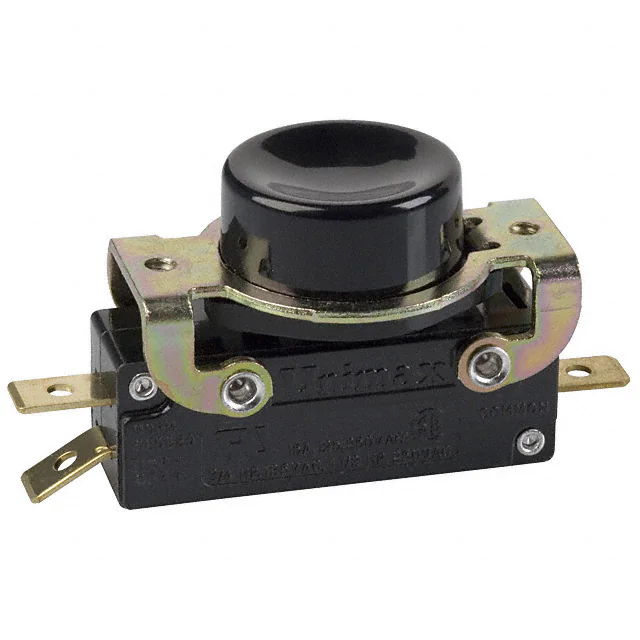

ASKHC2B14ACSWITCH SNAP ACTION SPDT 15A 125V |
325 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Black Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
VM3SCGF1803L01SWITCH LIMIT SPDT 10A 125V |
159 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 140gf | 50gf | 0.807" (20.50mm) | 0.100" (2.5mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
W16-111SWITCH SNAP ACT SPDT-DB 10A 125V |
513 |
|
Datasheet |
W16 | Bulk | Active | SPDT-DB | On-On | 10A (AC/DC) | 125 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 142gf | 28gf | 0.406" (10.3mm) | 0.050" (1.27mm) | 0.020" (0.51mm) | 0.012" (0.3mm) | -55°C ~ 125°C |
|
D2VW-01-1SWITCH SNAP ACT SPDT 0.1A 125V |
193 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
H3141CAKAASWITCH DETECTOR DPDT 5A 250V |
395 |
|
Datasheet |
3140 | Bulk | Active | DPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
D2SW-3-3MSSWITCH SNAP ACT SPST-NO 3A 125V |
193 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
