Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
D2SW-3L3MSWITCH SNAP ACTION SPDT 3A 125V |
141 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
LCGHF5A10LCESWITCH SNAP ACTION SPDT 1A 125V |
155 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | Epoxy Sealed Terminals | 57gf | 12gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|

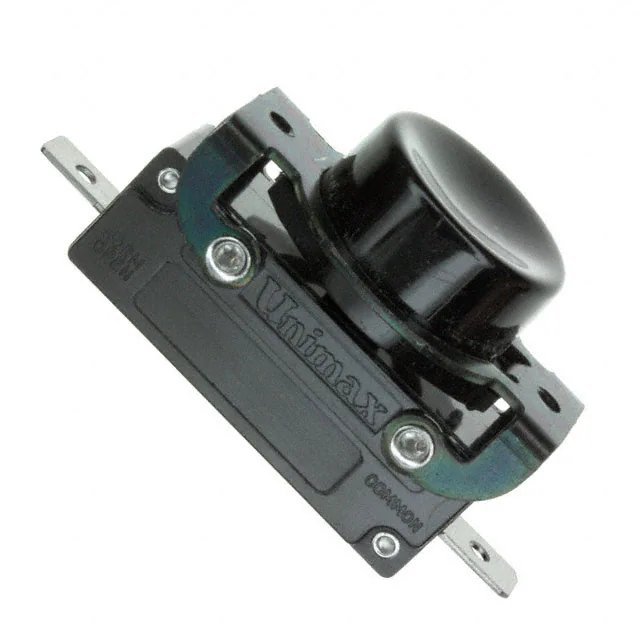

ASKHF3B14AYSWITCH SNAP ACT SPST-NO 25A 125V |
236 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Black Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
ZW50F15AD1SWITCH SNAP ACTION SPDT 5A 125V |
129 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
V7-1C17D844SWITCH SNAP ACTION SPDT 15A 125V |
202 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
V7-1Z33E9SWITCH SNAP ACT SPST-NC 25A 277V |
200 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 150°C |
|
|
ZW50F90HW1SWITCH SNAP ACTION SPDT 5A 125V |
992 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 95gf | 19gf | 0.420" (10.7mm) | 0.180" (4.6mm) | 0.026" (0.65mm) | 0.039" (1.0mm) | -40°C ~ 105°C |
|
VM3SAQF1803L06SWITCH LIMIT SPST-NO 10A 125V |
205 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 240gf | 100gf | 0.807" (20.50mm) | 0.060" (1.5mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|

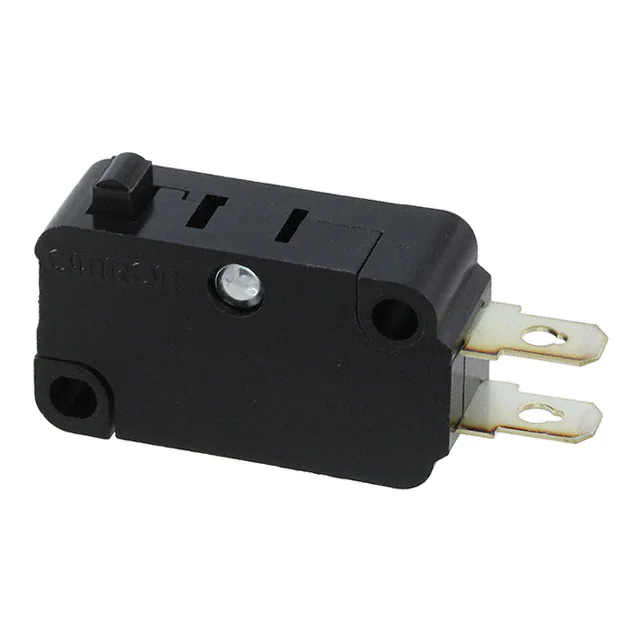

D2RV-ESWITCH SNAP SPST-NO 0.25A 100V |
102 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | - | 0.567" (14.4mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -10°C ~ 60°C |
|
BZ-R1691SWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0007" (0.018mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
311SM6-H4SWITCH SNAP ACTION SPDT 5A 250V |
114 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
1SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
207 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
D2RV-L13SWITCH SNAP SPST-NO 0.25A 100V |
113 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | - | 0.713" (18.1mm) | 0.157" (4.0mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -10°C ~ 60°C |
|
111SM2SWITCH SNAP ACTION SPDT 5A 250V |
160 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 198gf | 57gf | 0.562" (14.3mm) | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|

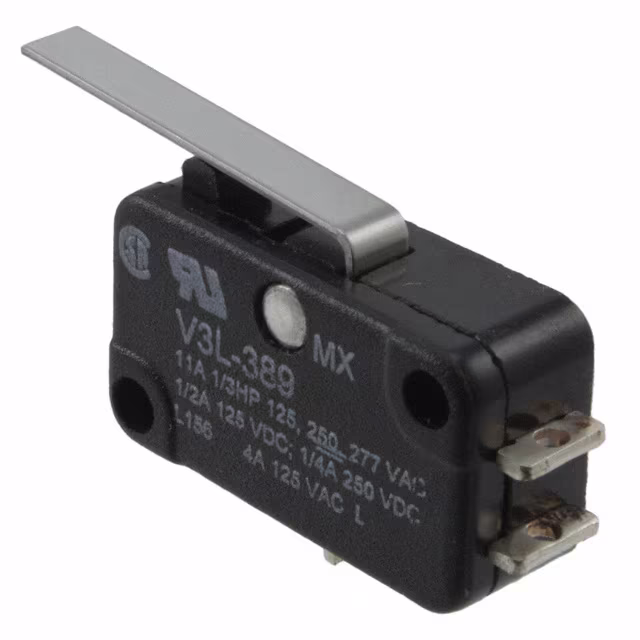

V3L-389SWITCH SNAP ACTION SPDT 11A 125V |
183 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 113gf | 14gf | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.050" (1.3mm) | 0.090" (2.3mm) | - |
|
D2HWC203MRS100SWITCH SNP ACT SPST-NO 0.1A 125V |
214 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
BZ-R178SWITCH SNAP ACTION SPDT 15A 125V |
180 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
D2HW-C213MRSSWITCH SNP ACT SPST-NO 0.1A 125V |
280 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
BZ-3RD-A2SWITCH SNAP ACTION SPDT 15A 125V |
267 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 397 ~ 567gf | 113gf | 0.835" (21.2mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|

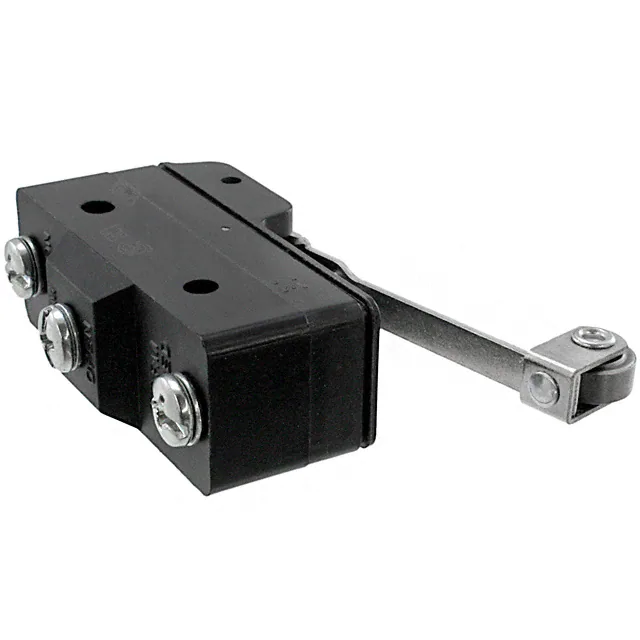

BZ-7RW82132T-SSWITCH SNAP ACTION SPDT 15A 125V |
485 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 141gf | 21gf | 1.188" (30.2mm) | - | 0.090" (2.3mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
