Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-01GLTSWITCH SNAP ACT SPDT 0.1A 125V |
7,848 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V-10G2-1C24-KSWITCH SNAP ACTION SPDT 10A 250V |
17,199 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
.jpg)
|
D3V-16G-1C25SWITCH SNAP ACTION SPDT 16A 250V |
7,169 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
ASQM11620SWITCH SNP ACT SPST-NC 0.05A 16V |
433 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NC | On-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.541" (13.75mm) | - | - | 0.062" (1.6mm) | -40°C ~ 85°C |
|

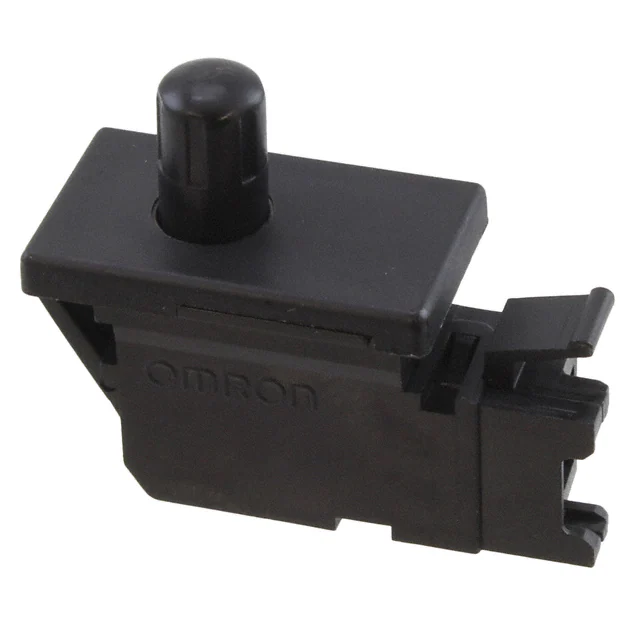

D3DC-3NSWITCH SNAP ACT SPST-NO 0.1A 30V |
1,277 |
|
Datasheet |
D3DC | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount, Snap-In | Connector | IP00 | Black Actuator | 102gf | - | 0.264" (6.7mm) | - | - | - | -25°C ~ 85°C |
|
V7-2B17D8-207SWITCH SNAP ACTION SPDT 11A 125V |
766 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 3.000gf | 0.812" (20.6mm) | 0.114" (2.9mm) | 0.025" (0.6mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
D3V-015-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
3,488 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 85°C |
|

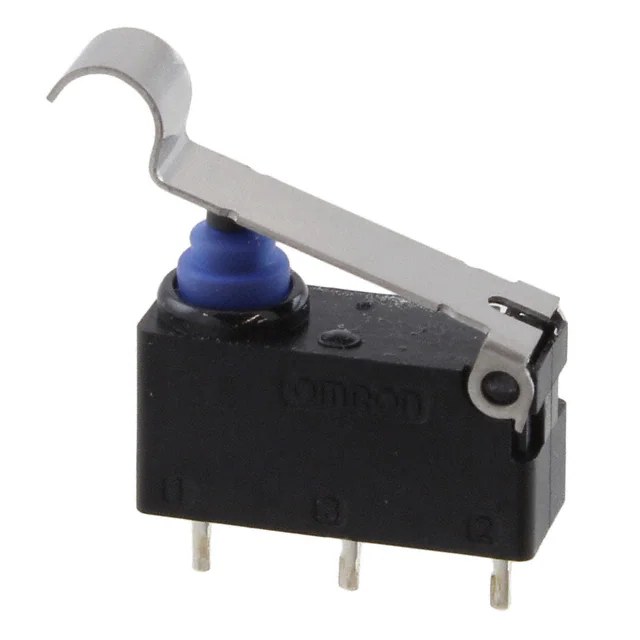

D2HW-A231DSWITCH SNAP ACT SPDT 0.1A 125V |
1,413 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.600" (15.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
V7-1C17D8-201SWITCH SNAP ACTION SPDT 15A 125V |
16,278 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 175gf | 19gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.120" (3.05mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

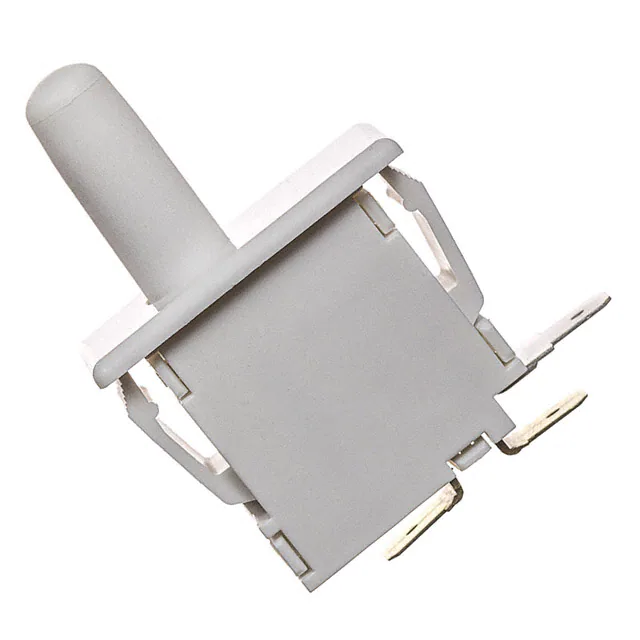

DS1D6BQ3SWITCH SNAP ACTION SPDT 10A 125V |
4,439 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
D3DC-2SWITCH SNAP ACT SPST-NC 0.1A 30V |
5,874 |
|
Datasheet |
D3DC | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount, Snap-In | Connector | IP00 | Black Actuator | 102gf | - | 0.264" (6.7mm) | - | - | - | -25°C ~ 85°C |
|
ASQM11630SWITCH SNP ACT SPST-NO 0.05A 16V |
13,467 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.541" (13.75mm) | - | - | 0.062" (1.6mm) | -40°C ~ 85°C |
|

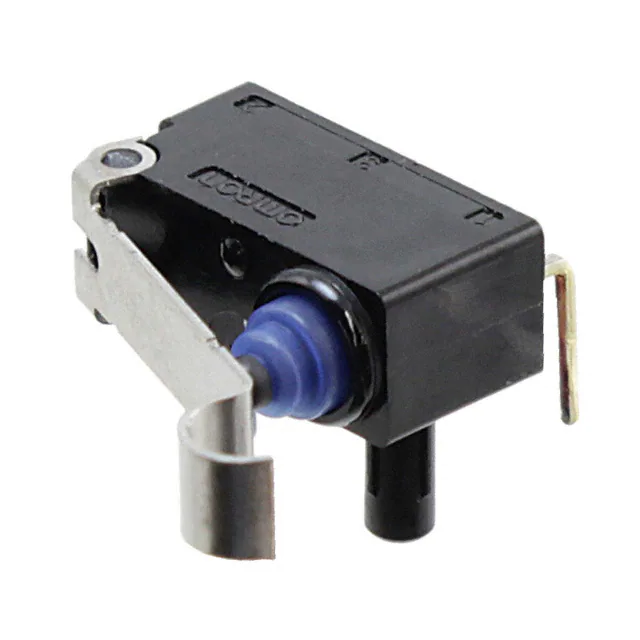

D2HW-BR231DRSWITCH SNAP ACT SPDT 0.1A 125V |
237 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
DS1D6CQ2SWITCH SNAP ACTION SPDT 10A 125V |
1,928 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
V-10G-1C24-KSWITCH SNAP ACTION SPDT 10A 250V |
891 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V7-1C17D8SWITCH SNAP ACTION SPDT 15A 125V |
671 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

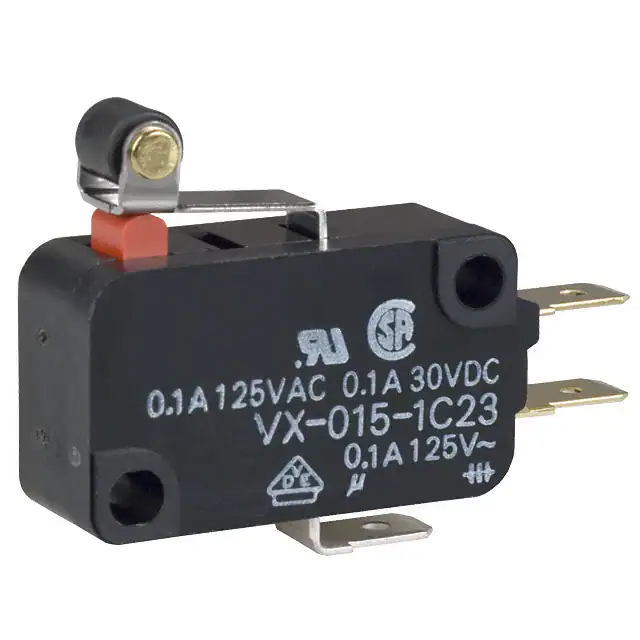

VX-015-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
489 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 4.079gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V7-2B17D8-201SWITCH SNAP ACTION SPDT 11A 125V |
1,680 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 88gf | 7.000gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
V7-1C17D8-207SWITCH SNAP ACTION SPDT 15A 125V |
948 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 9.000gf | 0.812" (20.6mm) | 0.114" (2.9mm) | 0.025" (0.6mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
E69-00ASWITCH SNAP ACTION SPDT 10A 125V |
9,241 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
