Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7-2B17D8-048SWITCH SNAP ACTION SPDT 11A 125V |
1,778 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 20gf | 1.000gf | 0.602" (15.3mm) | 0.236" (6.0mm) | 0.050" (1.3mm) | 0.115" (2.9mm) | -40°C ~ 85°C |
|
V-152-1A5SWITCH SNAP ACTION SPDT 15A 250V |
1,346 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D2FD-01L30-1TSWITCH SNAP ACT SPDT 0.1A 125V |
270 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP60 - Dust Tight | - | 66gf | 5.099gf | 0.445" (11.3mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -20°C ~ 70°C |
|
SS-01GL-ESWITCH SNAP ACT SPDT 0.1A 125V |
487 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 8.158gf | 1.020gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-01GL13-ESWITCH SNAP ACT SPDT 0.1A 125V |
268 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 8.158gf | 1.020gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
PP1-EB7-1A2SWITCH SNAP ACTION SPDT 16A 125V |
5,468 |
|
Datasheet |
PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | 300gf | - | 0.738" (18.7mm) | - | - | - | 0°C ~ 85°C |
|
VX-01-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
2,606 |
|
Datasheet |
VX | Tray | Last Time Buy | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V7-1B10E9-207SWITCH SNAP ACTION SPDT 11A 125V |
348 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 86gf | 9.000gf | 0.812" (20.6mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
83170405SWITCH SNAP ACTION SPDT 5A 250V |
2,162 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
83170408SWITCH SNAP ACTION SPDT 5A 250V |
924 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
SS-10GL2SWITCH SNAP ACTION SPDT 10A 250V |
969 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
V7-6C17D8-263SWITCH SNAP ACTION SPDT 15A 125V |
210 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 227gf | 57gf | 0.730" (18.5mm) | 0.090" (2.3mm) | 0.065" (1.7mm) | 0.080" (2.03mm) | -40°C ~ 85°C |
|
V-15G1-1C25-KSWITCH SNAP ACTION SPDT 15A 250V |
1,047 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V-15G6-1C26-KSWITCH SNAP ACTION SPDT 15A 250V |
3,441 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 25gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D2MQ-1LSWITCH SNAP ACTION SPDT 0.5A 30V |
999 |
|
Datasheet |
D2MQ | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Leaf | Through Hole | PC Pin | IP40 | - | 60gf | 8.158gf | 0.264" (6.7mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|
SS-01-FTSWITCH SNAP ACT SPDT 0.1A 125V |
490 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|

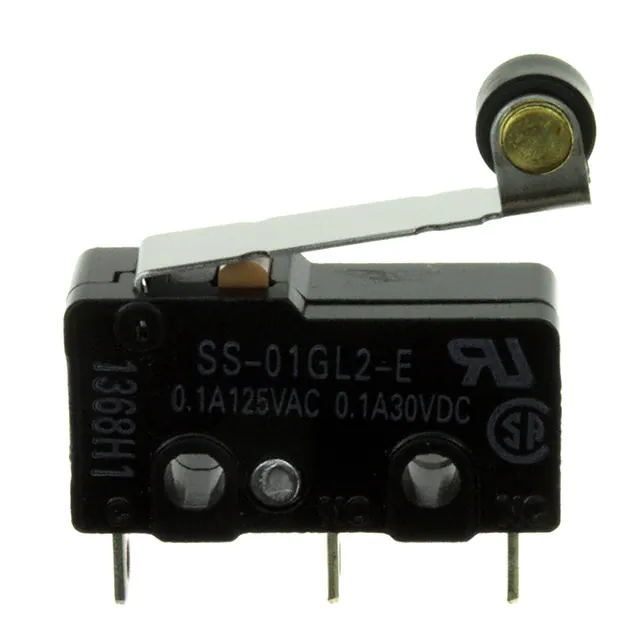

SS-01GL2-ESWITCH SNAP ACT SPDT 0.1A 125V |
218 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 8.158gf | 1.020gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
463093370402SWITCH LIMIT SPDT 3A 125V |
309 |
|
Datasheet |
WS-MITV | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 80gf | 5.000gf | 0.512" (13.0mm) | 0.138" (3.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V-156-1C25SWITCH SNAP ACTION SPDT 15A 250V |
306 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V7-1Z19E9SWITCH SNAP ACTION SPDT 25A 277V |
5,845 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
