Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

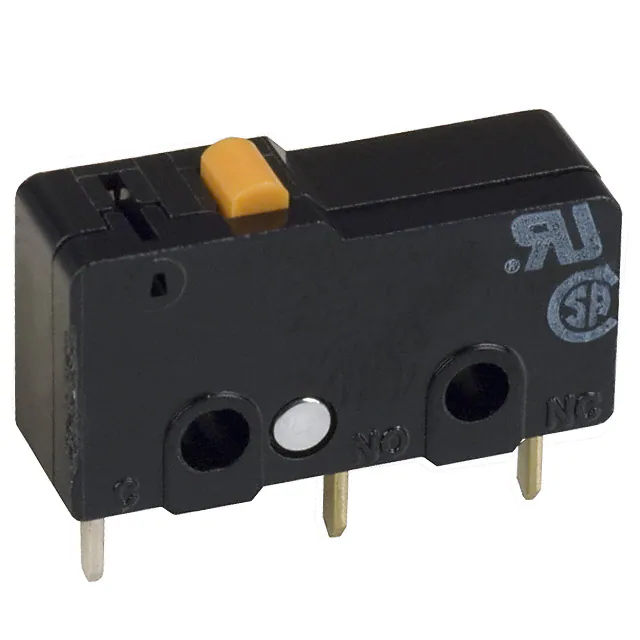

SS-5DSWITCH SNAP ACTION SPDT 5A 125V |
92,973 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D2HW-C261HSWITCH SNAP ACT SPDT 0.1A 125V |
925 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2F-01L-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
620 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
LS0851503F040C1ASWITCH SNAP ACTION SPDT 15A 125V |
1,676 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 15gf | 0.602" (15.3mm) | 0.335" (8.5mm) | - | - | -25°C ~ 85°C |
|
V19S05-HZ015A03SWITCH SNAP ACTION SPDT 5A 125V |
899 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 5.000gf | 2.000gf | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.150" (3.8mm) | 0.079" (2.0mm) | -25°C ~ 85°C |
|
V15T16-CZ300SWITCH SNAP ACTION SPDT 16A 250V |
10,466 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | 75gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
V7-1B37D8SWITCH SNAP ACT SPST-NC 11A 125V |
2,402 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
AV4424SWITCH SNAP ACTION SPDT 0.5A 30V |
500 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | - | 0.228" (5.8mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|

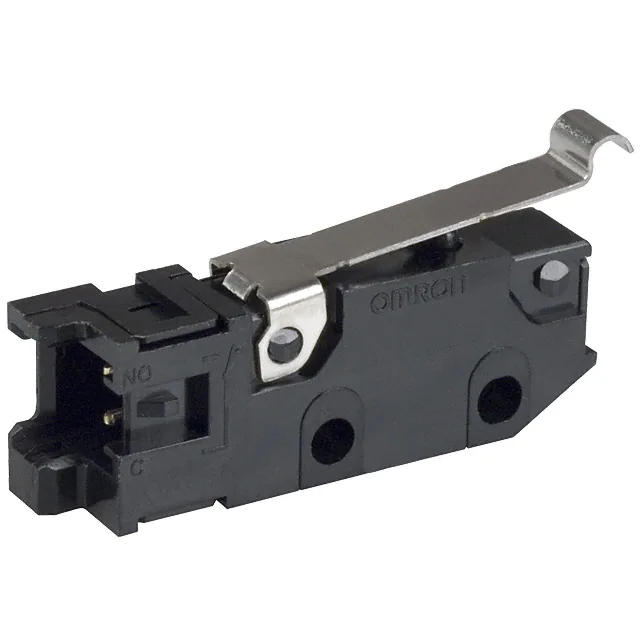

D3M-01L3-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
7,520 |
|
Datasheet |
D3M | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.445" (11.3mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
D3V-115M-1A4SWITCH SNAP ACTION SPDT 11A 250V |
826 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 120gf | 15gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
SS-5GL-FSWITCH SNAP ACTION SPDT 5A 125V |
7,093 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
AV400461SWITCH SNAP ACTION SPDT 0.1A 30V |
937 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 100gf | - | 0.213" (5.4mm) | 0.012" (0.3mm) | 0.004" (0.1mm) | 0.004" (0.1mm) | -25°C ~ 80°C |
|
SS-5GL13TSWITCH SNAP ACTION SPDT 5A 125V |
7,073 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-5SWITCH SNAP ACTION SPDT 5A 250V |
6,382 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|

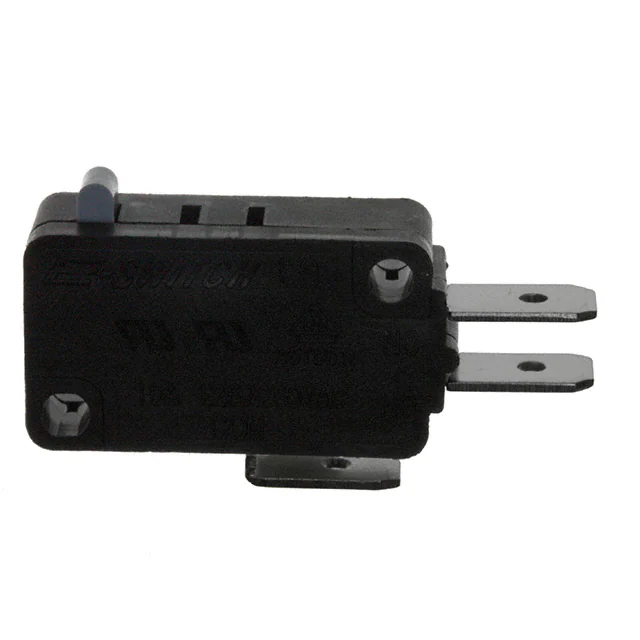

LS0851500F100C2ASWITCH SNAP ACTION SPDT 15A 125V |
240 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 30gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

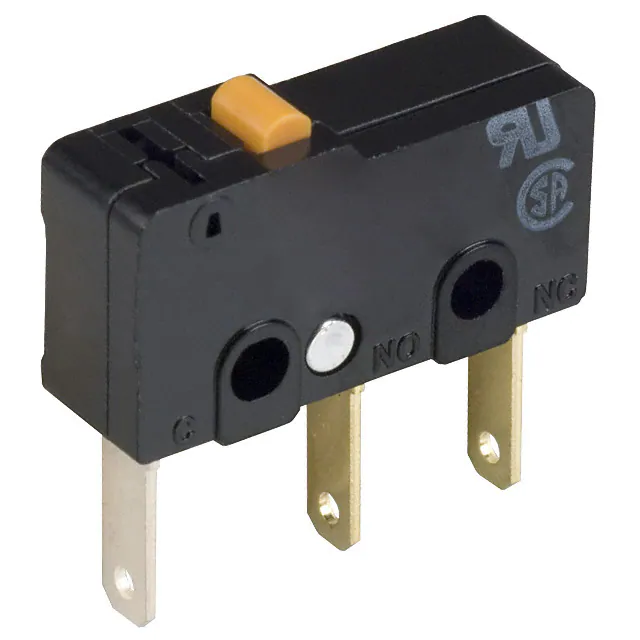

SS-5TSWITCH SNAP ACTION SPDT 5A 125V |
13,919 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
LS0851502F075C1ASWITCH SNAP ACTION SPDT 15A 125V |
9,097 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 25gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
LS0851502F045C1ASWITCH SNAP ACTION SPDT 15A 125V |
3,780 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 20gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|

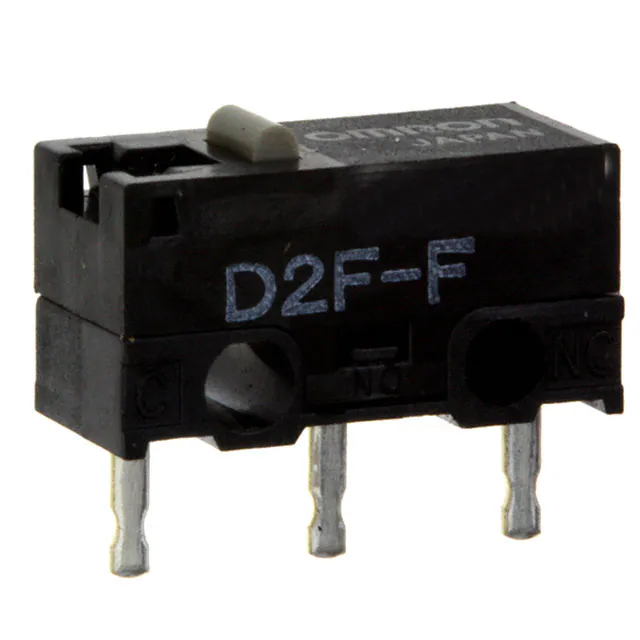

D2F-FSWITCH SNAP ACTION SPDT 1A 125V |
1,902 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
SS-01SWITCH SNAP ACT SPDT 0.1A 125V |
8,486 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
