Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSAA01DSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 969gf | - | - | - | 0.065" (1.7mm) | - | -25°C ~ 80°C |
|
|
GSAA04A1BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gf | - | - | - | 12° | - | -25°C ~ 80°C |
|
|
GSAA20BSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | - | - | 0.035" (0.9mm) | - | -25°C ~ 80°C |
|
|
GSAA20CSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | - | - | 0.035" (0.9mm) | - | -25°C ~ 80°C |
|
|
GSAA20DSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 969gf | - | - | - | 0.065" (1.7mm) | - | -25°C ~ 80°C |
|
|
GSAC07CSWITCH ROTARY SIDE |
0 |
|
Datasheet |
GSA | Bulk | Active | - | - | - | - | - | - | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 80°C |
|

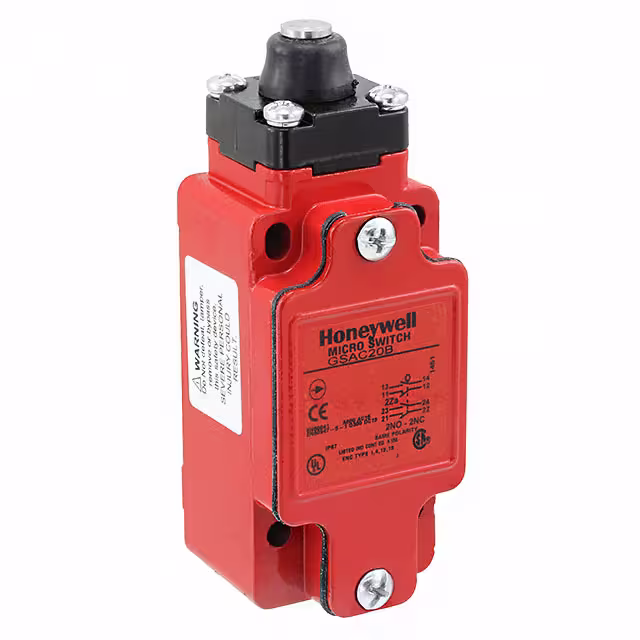

GSAC20BSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | 3773gf | 1.380" (35.0mm) | - | 0.035" (0.9mm) | - | -25°C ~ 85°C |
|
|
LSA1A1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Clockwise Rotation | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSA1A-2DSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSH1ESWITCH SNAP ACT SPDT 50MA 250V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 19gfm | - | - | 9° | 3° | 66° | -1°C ~ 121°C |
|
|
LSU8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 5° | 3° | 70° | -12°C ~ 121°C |
|
|
LSXYAB3K-1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|
|
LSXYAB4L4SWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
LSYPC1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 121°C |
|
|
SSCEA31CSWITCH SNAP ACT SPDT 600MA 120V |
0 |
|
Datasheet |
SSCE | Bulk | Obsolete | SPDT | On-Mom | 600mA (AC), 220mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP68 - Dust Tight, Waterproof | Cable Length 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -40°C ~ 90°C |
|
|
V15T16-EZ200A05-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 240gf | 60gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V7-2A19D8-271-1SWITCH LIMIT SPDT 5A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-4A17E9B4-000-1SWITCH PIN PLUNGER SPDT 5A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-5F23D8-636-1SWITCH PADDLE LEVER SPST 3A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
WGLA1A02AA1BSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
WGLA | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | Steel Roller | 998gf | 1179gf | 2.638" (67.0mm) | - | 12° | 75° | -40°C ~ 85°C |
