Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
914CE1-3GSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
914CE18-12SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 12' | 2300gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE29-QSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
914CE | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Cross Roller Plunger | Panel Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 1.673" (42.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE55-3SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1785gf | 450gf | 1.354" (34.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
914CE3-3ASWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
914CE66-6SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Ball Bearing Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 1200gf | 450gf | 0.961" (24.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE16-3ASWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 34gfm | 7.200gfm | - | 30° | 3° | 40° | 0°C ~ 105°C |
|
|
914CE19-12SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Adjustable Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 12' | 1200gf | 450gf | 1.398" (35.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
4HS4-118SWITCH SNAP ACTION SPDT 1A 115V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | SPDT | On-Mom | 1A (AC), 15A (DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Wire Leads | - | - | 283 ~ 624gf | 113gf | 0.615" (15.6mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
|
12HM1-1SWITCH HERM SEALED BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
14HM6SWITCH SNAP ACTION SPDT 0.1A 28V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 198gf | 28gf | - | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 121°C |
|
|
BX24C4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
BX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 46gf | - | 15° | 15° | 5° | 60° | -40°C ~ 70°C |
|
|
GSAA36A1BSWITCH SNAP ACT DPST-NC 0.1A 50V |
0 |
|
Datasheet |
GSA | Bulk | Active | DPST-NC | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gf | - | - | - | 12° | - | -25°C ~ 80°C |
|
|
GSAA01BSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | DPDT | On-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | - | - | 0.035" (0.9mm) | - | -25°C ~ 80°C |
|
|
GLCB07E7BSWITCH SNAP ACTION SPDT 0.1A 50V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 132gf | - | 16° | 16° | 10° | 35° | -25°C ~ 85°C |
|
|
GLAA22BSWITCH SNAP ACTION DPDT 0.1A 50V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.380" (35.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|

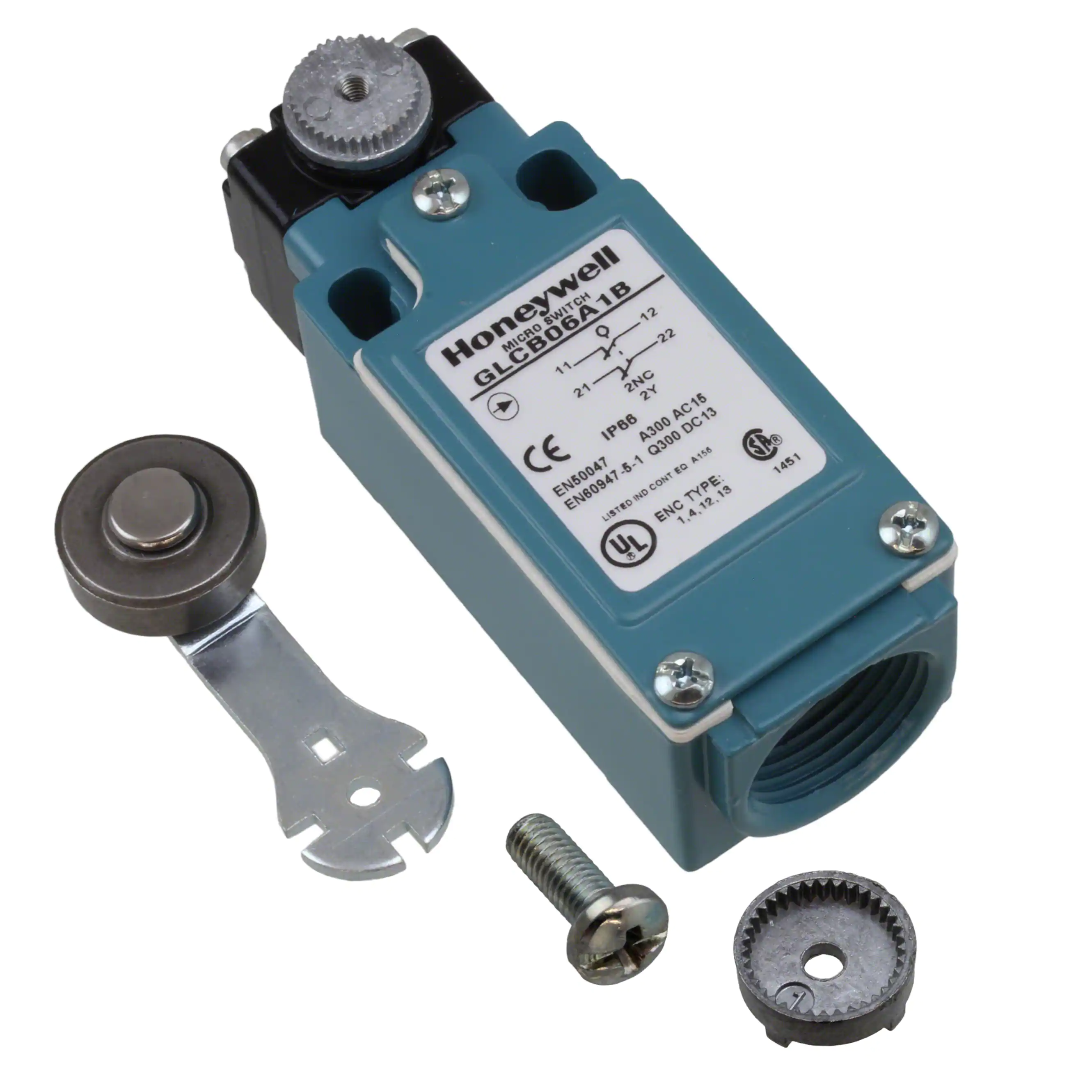

GLCB06A1BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPST-NC (DB) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
GLLC01FSWITCH SNAP ACTION SPDT 10A 300V |
0 |
|
Datasheet |
GLL | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 816gf | 153gf | - | 0.197" (5.0mm) | 0.094" (2.4mm) | 0.175" (4.5mm) | -10°C ~ 80°C |
|
|
GLLC03FSWITCH SNAP ACTION SPDT 10A 300V |
0 |
|
Datasheet |
GLL | Bulk | Active | SPDT (BBM) | On-Mom | 10A (AC/DC) | 300 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 306gf | 153gf | - | 0.100" (2.5mm) | 0.177" (4.5mm) | 0.295" (7.5mm) | -10°C ~ 80°C |
|
|
GLLC04CSWITCH SNAP ACTION SPDT 10A 300V |
0 |
|
Datasheet |
GLL | Bulk | Active | SPDT (MBB) | On-Mom | 10A (AC/DC) | 300 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 612gf | 153gf | 1.122" (28.5mm) | 0.100" (2.5mm) | 0.040" (1.0mm) | 0.130" (3.3mm) | -10°C ~ 80°C |
