Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

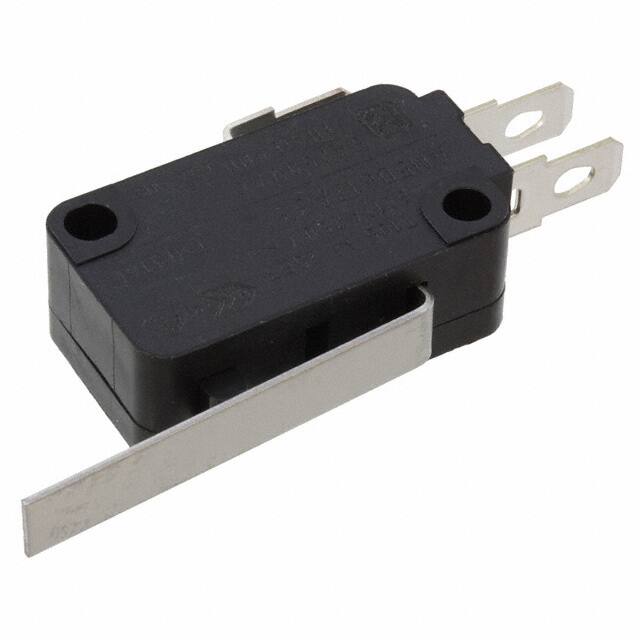

AM50612A33-ASWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
AM5 | Tray | Obsolete | SPDT | On-Mom | 6A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 5.099gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
WLCA12-RPSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Corrosion Resistance | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WLSD3-LDKGMSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Ball Bearing Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
WLG12-LDSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
|
WLCA2-LDASSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Spatter Prevention, Status Indicator | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WLD2-G1SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
|
WL01D-LDSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 2720gf | 910gf | 1.339" (34.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.252" (6.4mm) | -10°C ~ 80°C |
|
|
WLNJ-RPSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Corrosion Resistance | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
|
WLHL-LDK43SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 290gf | 25gf | - | 15° | 12° | 55° | -10°C ~ 80°C |
|
|
WLHL-LDK13SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 290gf | 25gf | - | 15° | 12° | 55° | -10°C ~ 80°C |
|
|
WLCA12-P1SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Weather Resistant | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
831810C2.BLSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 125°C |
|
831860CFG0.FLSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 85gf | 27gf | 0.512" (13.0mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 105°C |
|
|
1172CX12SWITCH SNAP ACT SPDTX2 1A 125V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-On | 1A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 51gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
12CX12SWITCH SNAP ACT SPDTX2 20A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-On | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 50gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
21CX13SWITCH SNAP ACTION SPDT 15A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
GLAA01A2D-F024SWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
GLAA26J2BSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | Mom-Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 16° | 16° | 8° | - | -25°C ~ 85°C |
|
|
GLDB03C-6SWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Roller Perpendicular to Mounting Surface | 1632gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
GLFB01DSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 953gf | - | 2.400" (61.0mm) | 0.165" (4.2mm) | 0.065" (1.7mm) | 0.350" (9.0mm) | -25°C ~ 85°C |
