Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB3CD5AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
12CX2AESWITCH SNAP ACT SPDTX2 20A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|

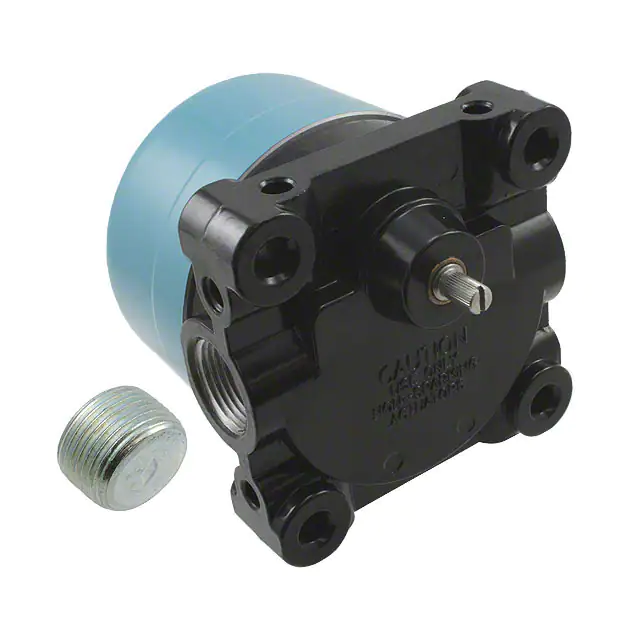

16CX12SWITCH SNAP ACT SPDTX2 1A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-On | 1A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 50gfm | - | - | 30° | 20° | 75° | -25°C ~ 85°C |
|
|
16CX1CSWITCH SNAP ACTION SPDT 1A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT | On-Mom | 1A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 30° | 20° | 75° | -40°C ~ 85°C |
|
|
1EN107-RSWITCH LIMIT PB PNL MT DPDT 4A |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
402EN122-RBSWITCH AERO SEALED |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404HE99-6SWITCH AERO SEALED |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZX40E10J01SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | - | - | 0.350" (8.9mm) | 0.400" (10.1mm) | 0.118" (3.0mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|
|
ZM50E70J01SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 12gf | 2.500gf | 0.465" (11.8mm) | 0.524" (13.3mm) | 0.114" (2.9mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
ZM50E10L01SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Solder Lug | - | - | 20gf | 4.000gf | - | 0.188" (4.8mm) | 0.075" (1.9mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
LS2YAB4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Stainless Steel | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
LSYJC6B-7MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -12°C ~ 121°C |
|
|
LSYKC1AC-8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cat Whisker | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 6' | 141gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 121°C |
|
|
LSD5ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | Status Indicator | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LS4C1ASWITCH SNAP ACTION SPDT 10A 600V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 600 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.070" (1.78mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSYAC2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
LSH2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 19gfm | - | - | 9° | 4° | 66° | -1°C ~ 121°C |
|
|
LSM6D-1PSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
LS4J1A-7MSWITCH SNAP ACTION SPDT 10A 600V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 600 V | 250 V | Spring, Wire | Chassis Mount | Screw Terminal | - | - | 142gf | - | - | 4.000" (102mm) | - | - | -12°C ~ 93°C |
|
|
LSYJB1E-7MSWITCH SNAP ACT SPDT 0.05A 250V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -40°C ~ 121°C |
