Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSYJB1A-7MSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -40°C ~ 121°C |
|
|
LSYDB1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -40°C ~ 93°C |
|
|
LSYUB1A3SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Actuator Mounted Right Side | 46gfm | - | - | 5° | 3° | 70° | -40°C ~ 121°C |
|

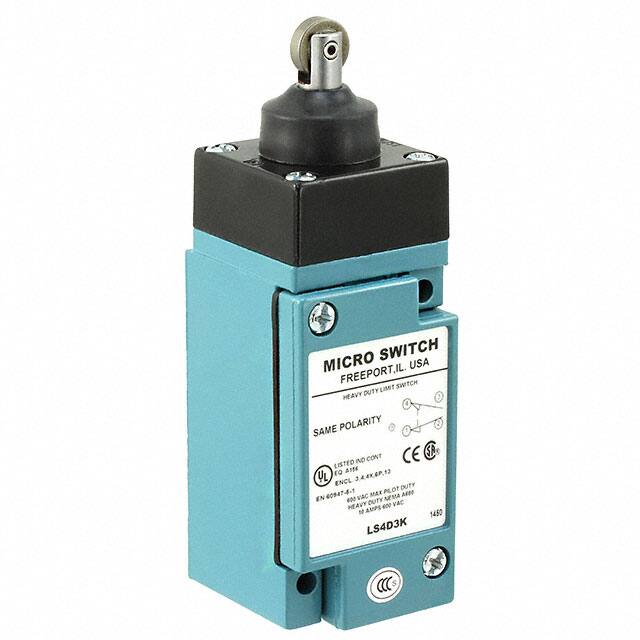

LS4D3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 2.200" (55.9mm) | 0.070" (1.78mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

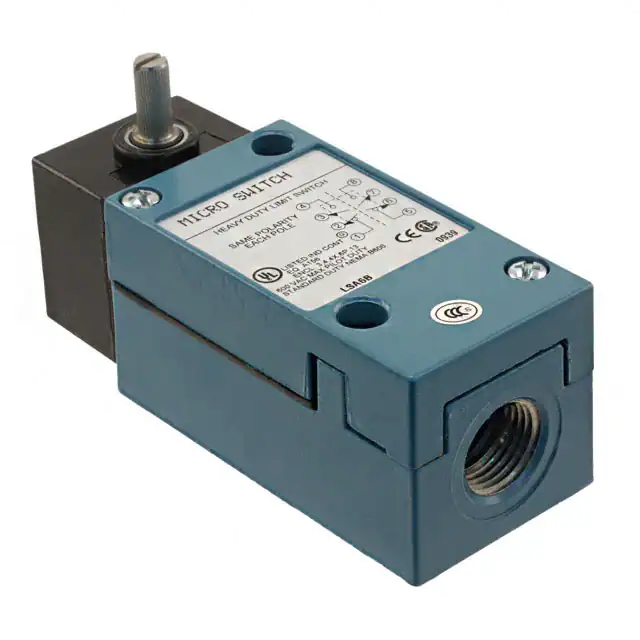

LSN7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 65° | 40° | 20° | -1°C ~ 121°C |
|
|
LSA7L-1ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
LSL4MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -12°C ~ 121°C |
|
|
LSYMC7NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
LSYFB3K3SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
LSYKB3K-8CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Screw Terminal | - | - | 198gf | - | 0.305" (7.75mm) | 2.000" (50.8mm) | - | - | -29°C ~ 121°C |
|
|
LSYDB7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 93°C |
|
|
LSYPB4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 4° | 66° | -40°C ~ 121°C |
|
|
LSYAB4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
LSYNB3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 65° | 40° | 20° | -29°C ~ 121°C |
|
|
51ML17SWITCH HEAVY DUTY LIMIT ROLLER |
0 |
|
Datasheet |
- | Bulk | Active | SPDT | On-On | - | 120 V | - | Side Rotary, Roller | Panel Mount | Screw Terminal | - | - | 1361gf | - | - | 0.118" (3.0mm) | 0.156" (4.0mm) | 0.197" (5.0mm) | - |
|
|
914CE2-9CSWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 1814gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE31-9VSWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 1785gf | 450gf | 1.354" (34.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE2-27SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 27' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
914CE31-12ASWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 12' | 1785gf | 450gf | 1.354" (34.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
914CE27-QSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 1.154" (29.3mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
