Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5GL111-FD1SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 12gf | 2.039gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-5GL111-FD2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 12gf | 2.039gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-5GL1112TSWITCH SNAP ACTION HINGE SPDT |
0 |
|
Datasheet |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-5GL1131SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
SS-5GL4025SWITCH SNAP ACTION HINGE SOLDER |
0 |
|
Datasheet |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-5T-07SWITCH SNAP ACTION SUBMINIATURE |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

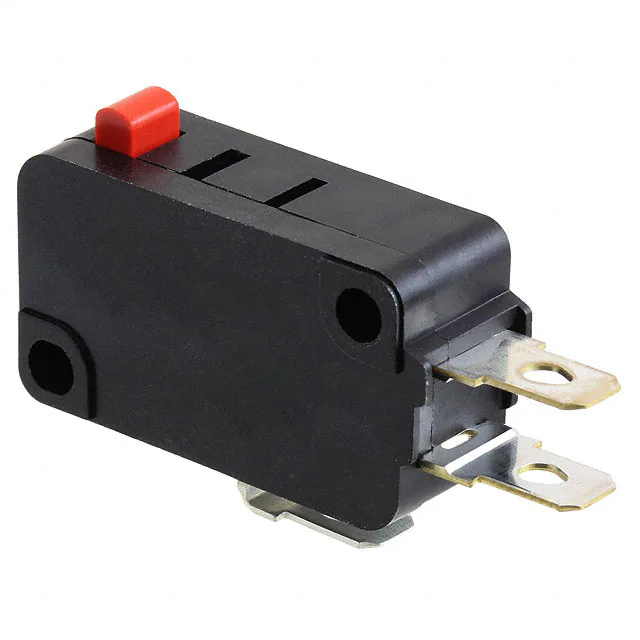

V-10-7A5SWITCH SNAP ACTION 10A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | - | - | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 80°C |
|

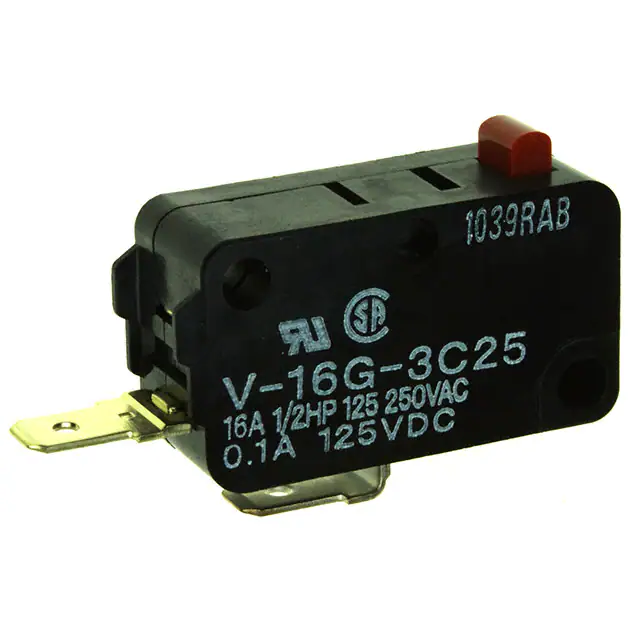

V-16G-3C25-L(R)SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
VX-5514-1C22SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 4.079gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|

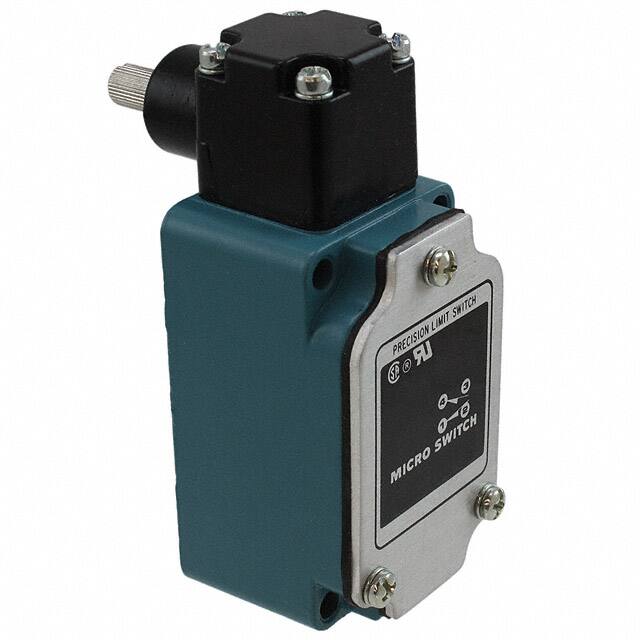

1LS29-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
1LS6SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 19gfm | 3.225gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
201LS19SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
204LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 1.600" (40.6mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.250" (6.35mm) | -29°C ~ 71°C |
|
205LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 3175gf | 907gf | 1.730" (43.9mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
206LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 34gfm | - | - | 55° | - | - | -29°C ~ 71°C |
|
2LS1-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Plunger | 3175gf | 907gf | 1.330" (33.8mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -29°C ~ 71°C |
|

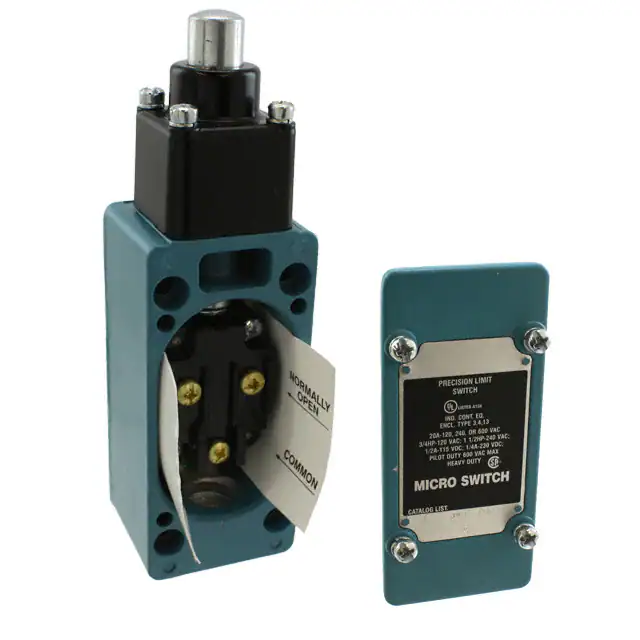

2ML1SWITCH SNAP ACTION SPDT 20A 120V |
0 |
|
Datasheet |
ML | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Sealed | 2722gf | 1814gf | 2.953" (75.0mm) | 0.025" (0.65mm) | 0.005" (0.13mm) | 0.500" (12.7mm) | - |
|
4SE1SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
5SE1SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|

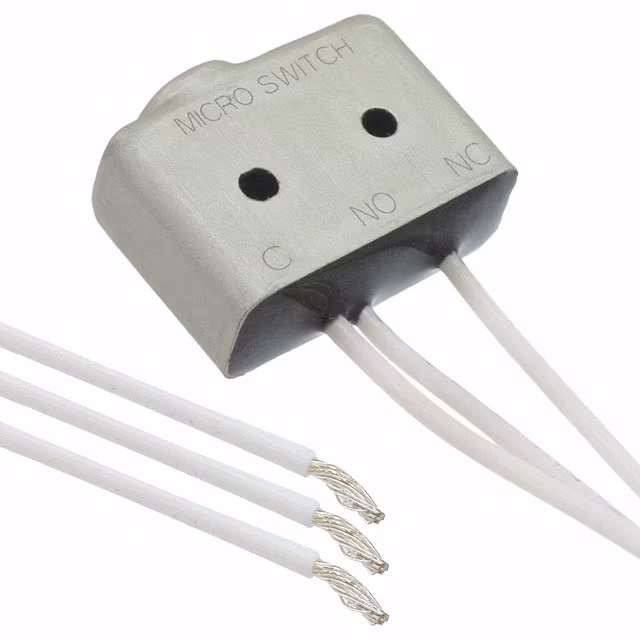

5SE1-6SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
