Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2VW-01L1A-1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 20gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
D2VW-01L1A-1MSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 20gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

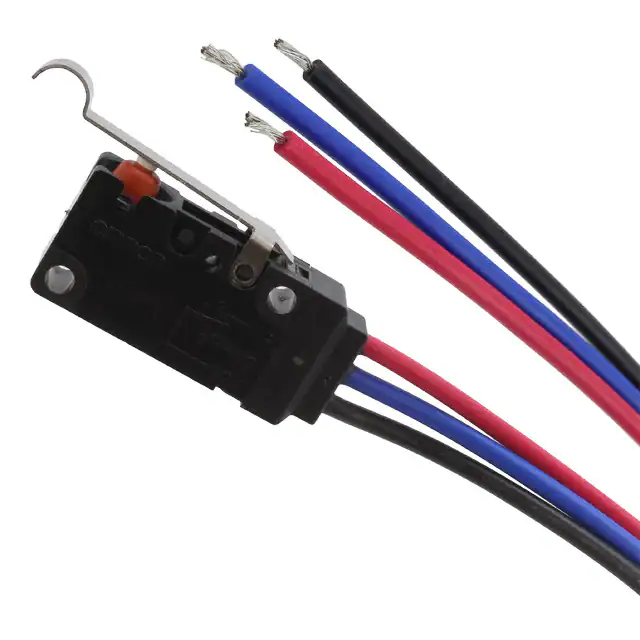

D2VW-01L3-1MSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D3DC-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
D3DC | Box | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount, Snap-In | Connector | IP00 | Black Actuator | 102gf | - | 0.264" (6.7mm) | - | - | - | -25°C ~ 85°C |
.jpg)
|
D3V-01-3C23-TSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 200°C |
|
D3V-014-3C23-TSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 200°C |
|
|
D3V-6G-1C25-K-13SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
SS-01GL-ED1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 8.158gf | 1.020gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-01GL11SWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-01GL111-ED1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 6.118gf | 0.306gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
SS-01GL111-FD1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 12gf | 2.039gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
SS-01GL1111DSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SS-01GL1131SWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-01GL1140TSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-01GL1375-FDSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
SS | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-01GL14-EDSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Leaf | Through Hole | PC Pin | IP40 | - | 8.158gf | 1.020gf | 0.398" (10.1mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-3GL111PSWITCH SNAP ACTION HINGE LEVER |
0 |
|
Datasheet |
SS-P | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-5-3T-TSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
SS-5-F-2-TSWITCH SNAP ACT SPST-NC 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
SS-5GL-3T-TSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
