Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB6-730023SWITCH KEYPAD 6KEY ILLUM |
8 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

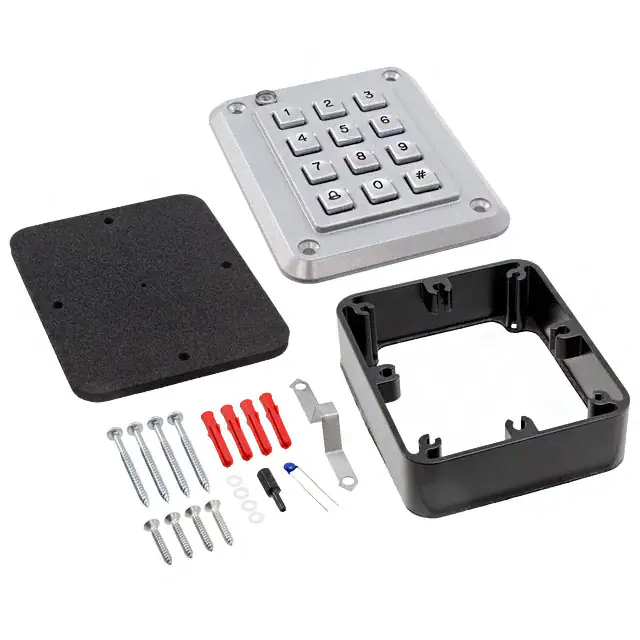

DE1KT103SWITCH KEYPAD 12KEY NON-ILLUM |
10 |
|
Datasheet |
AXS | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Non-Standard (Controller Included) | Telephone Format | Black | Silver | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|

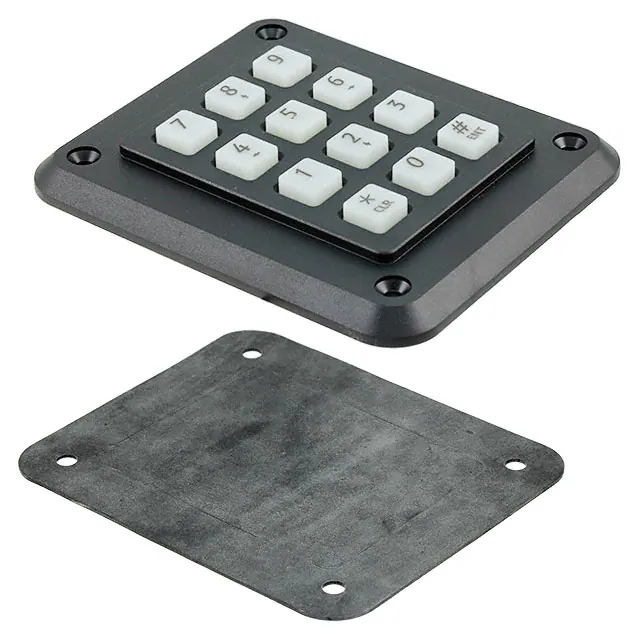

3K120103SWITCH KEYPAD 12KEY 0.05A 24V |
32 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

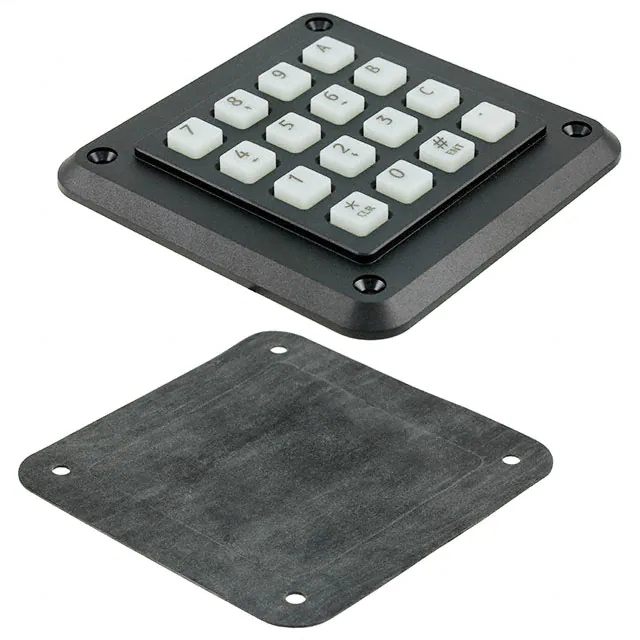

3K160103SWITCH KEYPAD 16KEY 0.05A 24V |
15 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

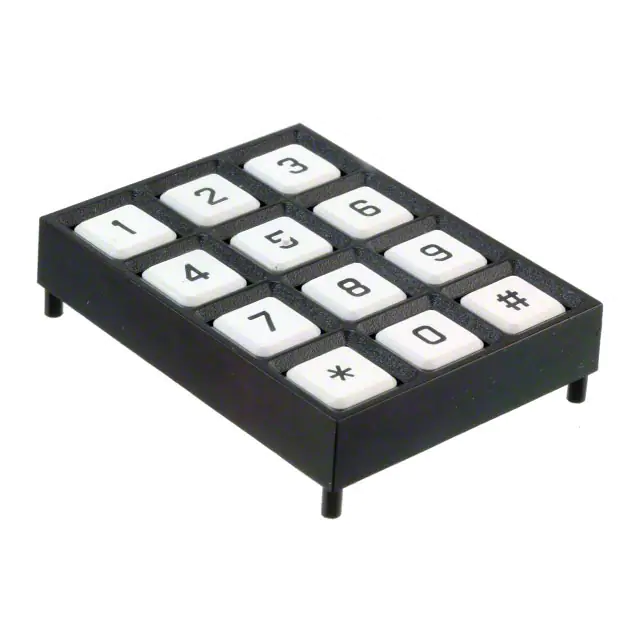

83AB1-102SWITCH KEYPAD 12KEY 0.01A 24V |
95 |
|
Datasheet |
83 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|

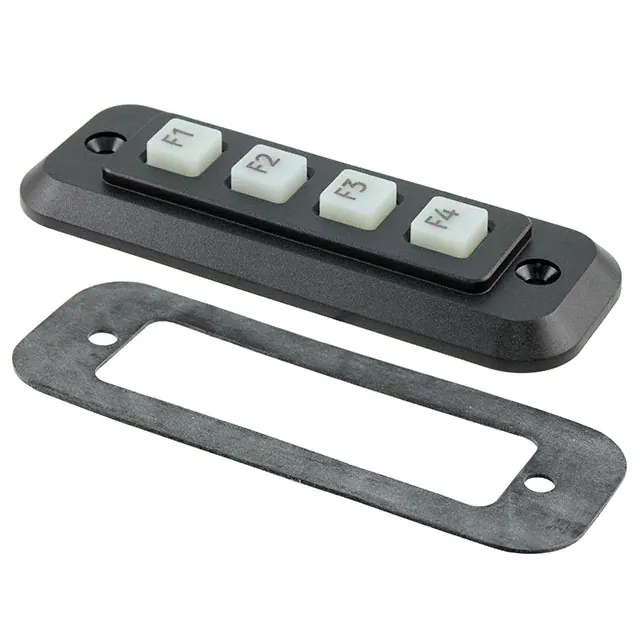

2K042103SWITCH KEYPAD 4KEY 0.05A 24V |
6 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | F1 ~ F4 | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

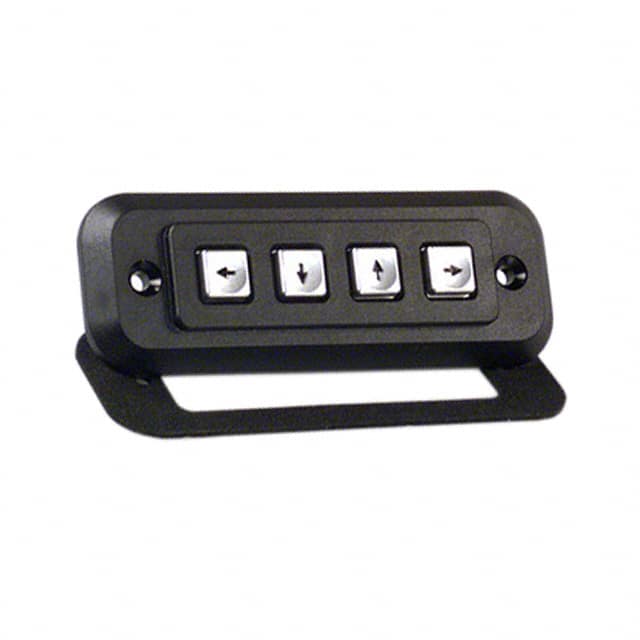

PLX041203SWITCH KEYPAD 4KEY 0.05A 24V |
72 |
|
Datasheet |
1000 PLX | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Arrows | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
EZB2-405003SWITCH KEYPAD 2KEY ILLUM |
5 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | - | - | - | White | Panel Mount, Front | Cable with Connector | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|
88AB2-143SWITCH KEYPAD 12KEY 0.01A 24V |
4 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | Telephone Format | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

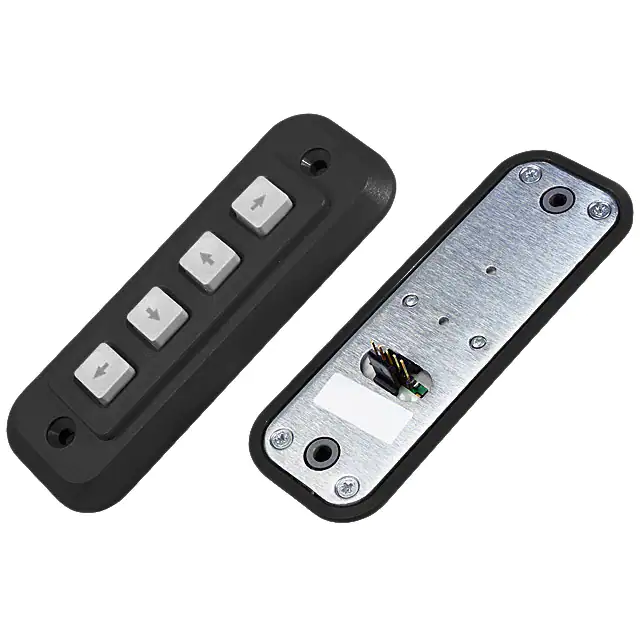

2K041103SWITCH KEYPAD 4KEY 0.05A 24V |
19 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

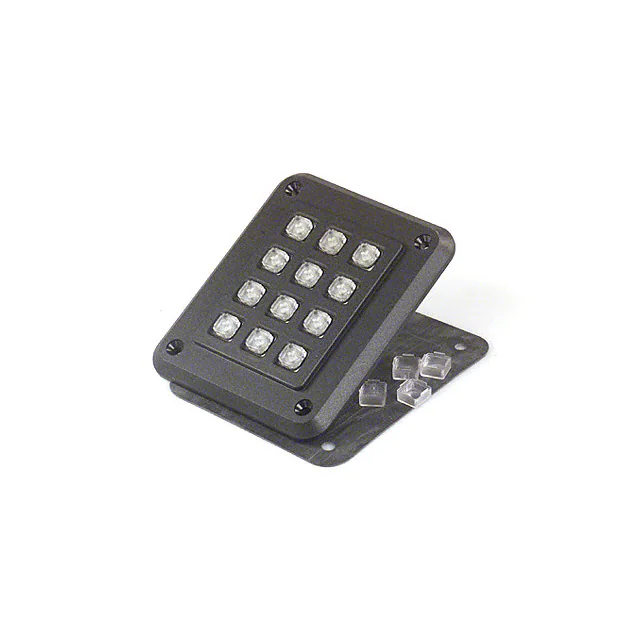

GS120203SWITCH KEYPAD 12KEY 0.05A 24V |
7 |
|
Datasheet |
GFX | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

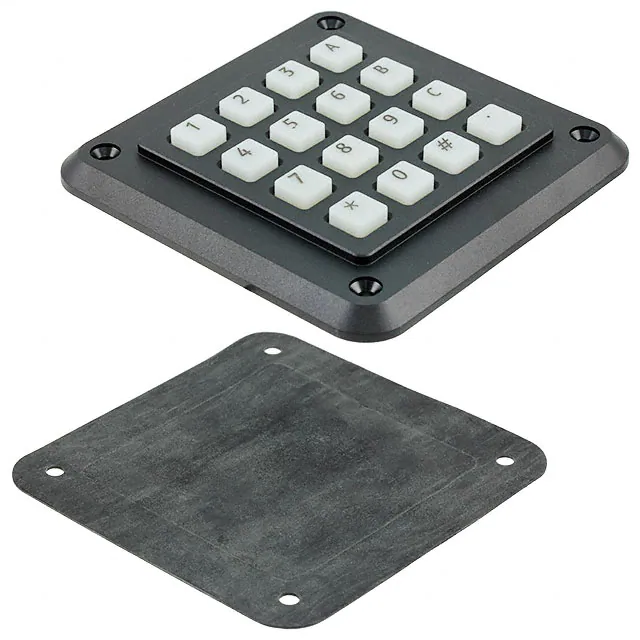

2K16T103SWITCH KEYPAD 16KEY 0.05A 24V |
3 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
EZB2-505003SWITCH KEYPAD 2KEY ILLUM |
13 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | - | - | - | White | Panel Mount, Front | Cable with Connector | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|

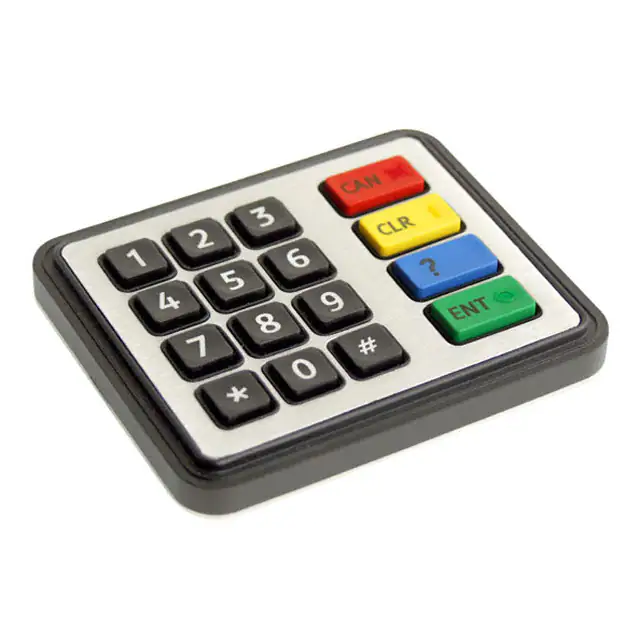

8616-210023SWITCH KEYPAD 16KEY 0.05A 24V |
4 |
|
Datasheet |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
EZB6-730003SWITCH KEYPAD 6KEY ILLUM |
4 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-530013SWITCH KEYPAD 2KEY ILLUM |
7 |
|
Datasheet |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
EZB6-430003SWITCH KEYPAD 6KEY ILLUM |
5 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
EZB6-630003SWITCH KEYPAD 6KEY ILLUM |
2 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
PZ120FSSWITCH KEYPAD 12KEY 0.2A 24V |
9 |
|
Datasheet |
PZ | Bulk | Active | - | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front | Pin Header | Rectangular - 81.00mm x 61.00mm | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 0.2A @ 24VDC | - |
|
PZ120RSSWITCH KEYPAD 12KEY 0.2A 24V |
6 |
|
Datasheet |
PZ | Bulk | Active | - | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Rear | Pin Header | Rectangular - 81.50mm x 62.50mm | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 0.2A @ 24VDC | - |
