Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMBN04BESWITCH KEYPAD 4KEY 0.02A 24V |
48 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

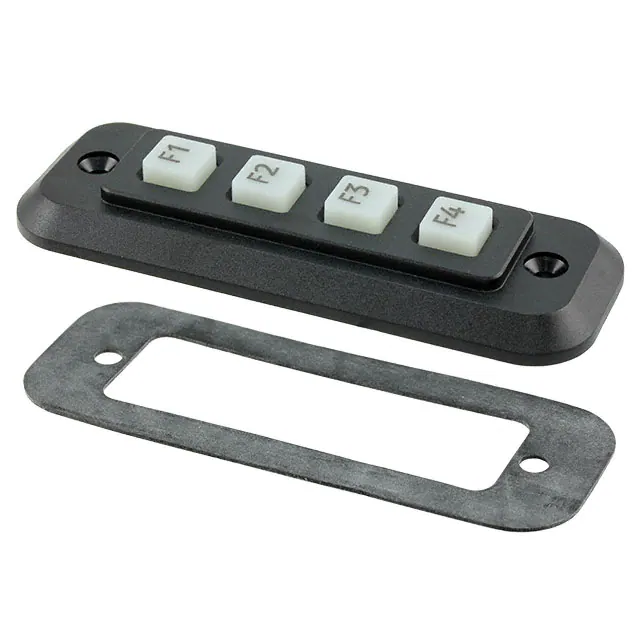

3K042103SWITCH KEYPAD 4KEY 0.05A 24V |
14 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | F1 ~ F4 | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

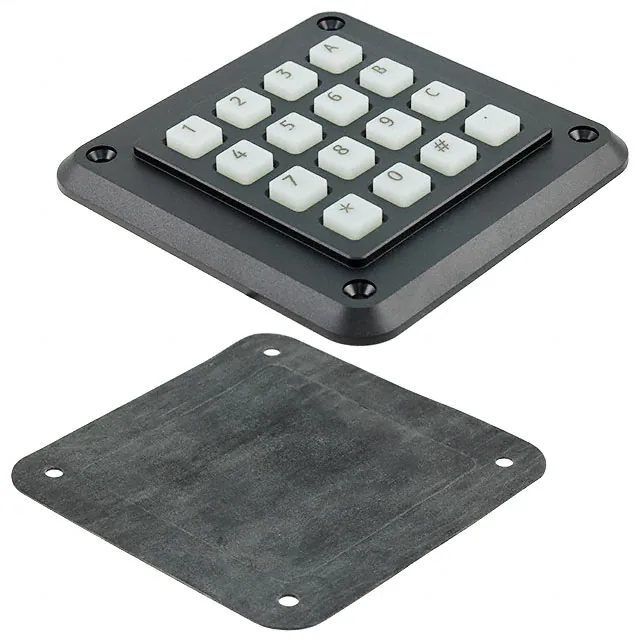

3K16T103SWITCH KEYPAD 16KEY 0.05A 24V |
54 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

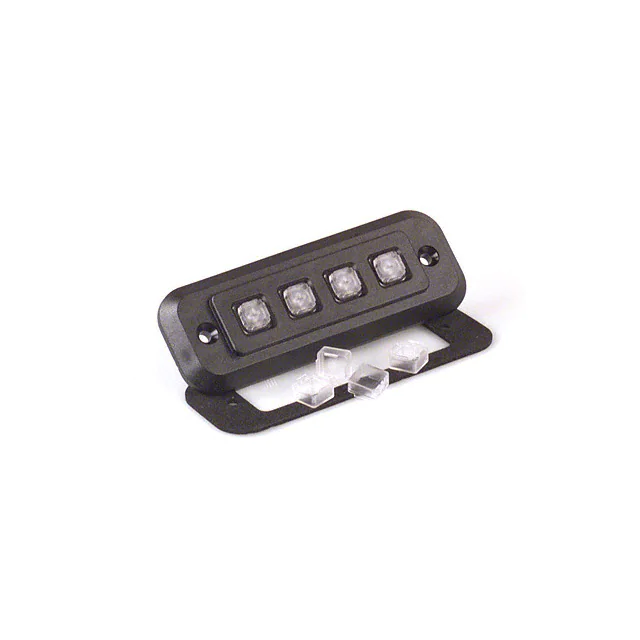

GS040203SWITCH KEYPAD 4KEY 0.05A 24V |
49 |
|
Datasheet |
GFX | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

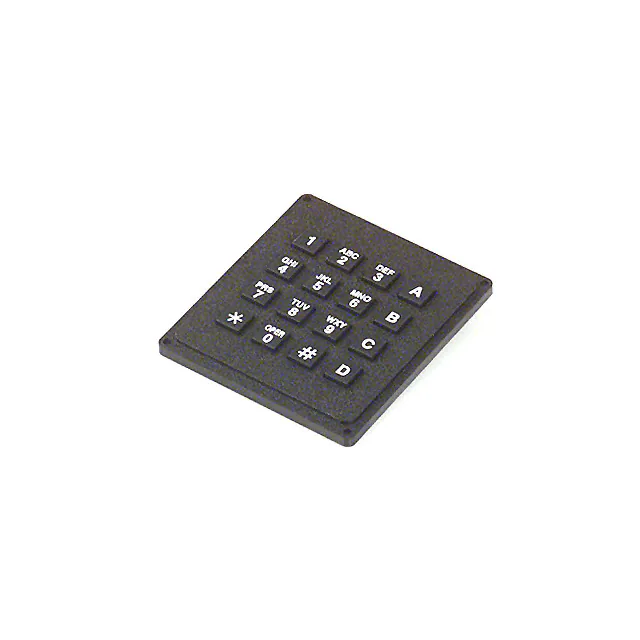

96BB2-056-RSWITCH KEYPAD 16KEY 0.005A 12V |
26 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 63.50mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
FMBN16BESWITCH KEYPAD 16KEY 0.02A 24V |
1 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|
FMBN16BDSWITCH KEYPAD 16KEY 0.02A 24V |
8 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

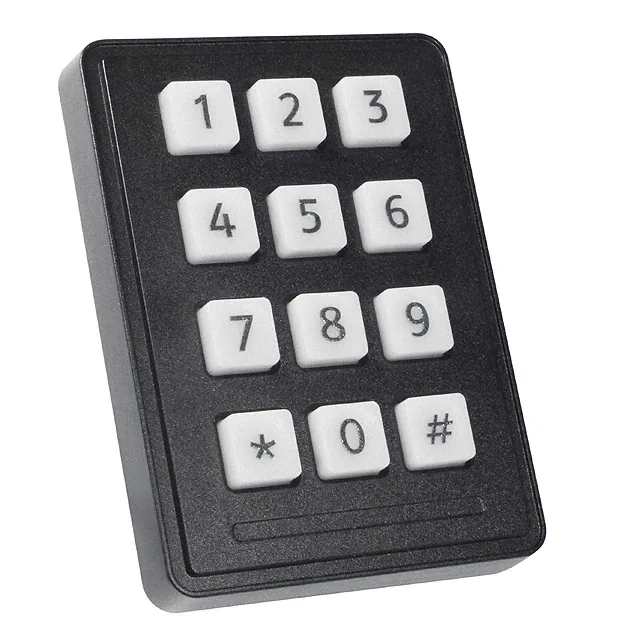

7203-12T0203SWITCH KEYPAD 12KEY 0.05A 24V |
2 |
|
Datasheet |
720 TFX | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
PIM565SWITCH KEYPAD 16KEY CLICKY |
8 |
|
Datasheet |
- | Bulk | Active | Keyswitch | 16 | 4 x 4 | - | - | Transparent Key Cap | Independent Switches (SPST) | - | - | Transparent | Panel Mount, Front | USB Socket | - | - | - | - | - | - |
|

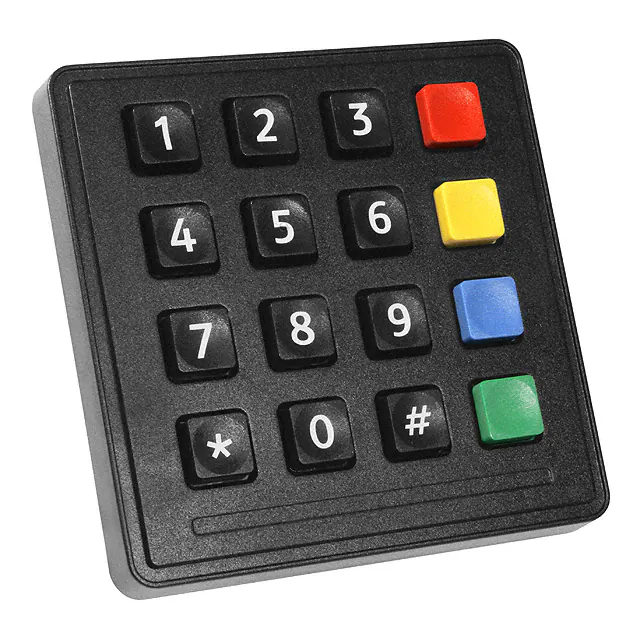

7202-16T0203SWITCH KEYPAD 16KEY 0.05A 24V |
6 |
|
Datasheet |
720 BLK | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Color Coded Format | White | Multiple | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
|
PIM561SWITCH KEYPAD 16KEY LINEAR |
10 |
|
Datasheet |
- | Bulk | Active | Keyswitch | 16 | 4 x 4 | - | - | Transparent Key Cap | Independent Switches (SPST) | - | - | Transparent | Panel Mount, Front | USB Socket | - | - | - | - | - | - |
|
|
PIM568SWITCH KEYPAD 16KEY TACTILE |
9 |
|
Datasheet |
- | Bulk | Active | Keyswitch | 16 | 4 x 4 | - | - | Transparent Key Cap | Independent Switches (SPST) | - | - | Transparent | Panel Mount, Front | USB Socket | - | - | - | - | - | - |
|

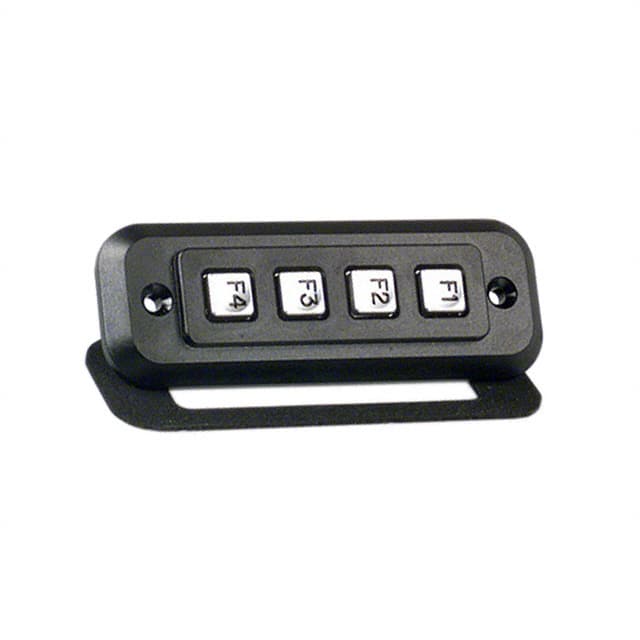

PLX042203SWITCH KEYPAD 4KEY 0.05A 24V |
13 |
|
Datasheet |
1000 PLX | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | F1 ~ F4 | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
FMBP12BFSWITCH KEYPAD 12KEY 0.02A 24V |
9 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 12 | 3 x 4 | Illuminated - Amber | Fixed | Polyester Overlay | Matrix | Telephone Format | Gray | White | Panel Mount, Front | Cable with Connector | - | -15°C ~ 50°C | - | 2.1 VDC | 0.02A @ 24VDC | - |
|

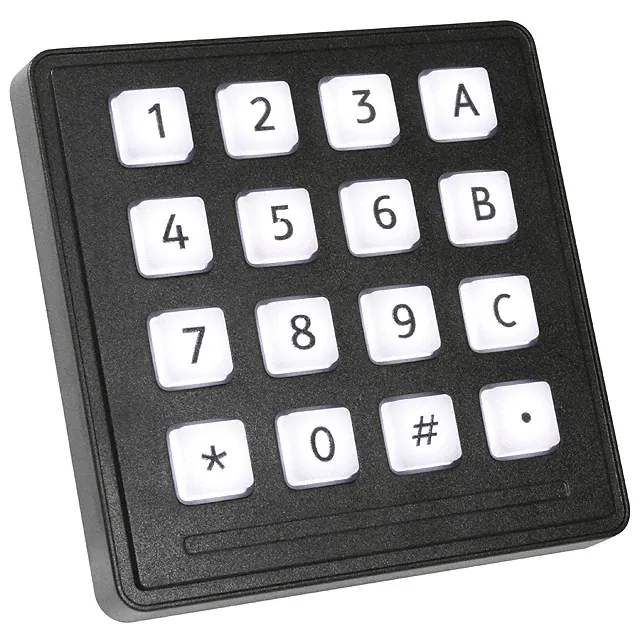

7203-16TW203SWITCH KEYPAD 16KEY 0.05A 24V |
2 |
|
Datasheet |
720 TFX-i | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Black | White | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|
EZB2-405H03SWITCH KEYPAD 2KEY ILLUM |
7 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | - | - | - | White | Panel Mount, Front | Cable with Connector | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|

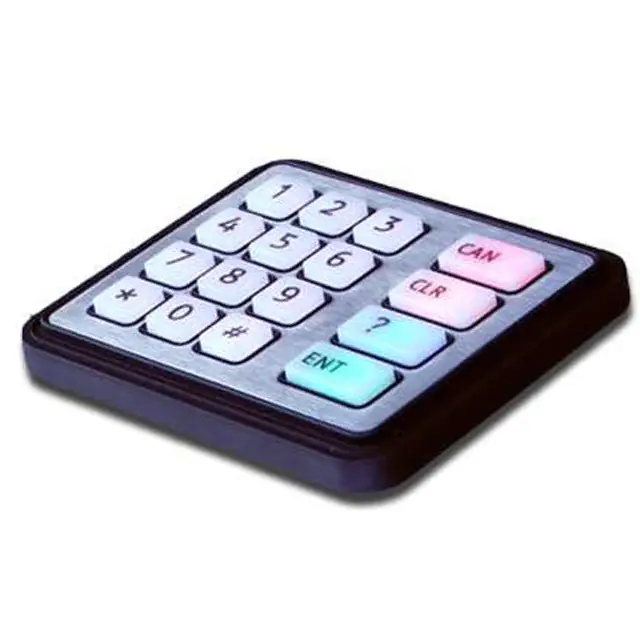

8616-410023SWITCH KEYPAD 16KEY 0.05A 24V |
11 |
|
Datasheet |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated | Fixed | Transparent Key Cap | Matrix | Telephone Format, Function Keys | Black | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|

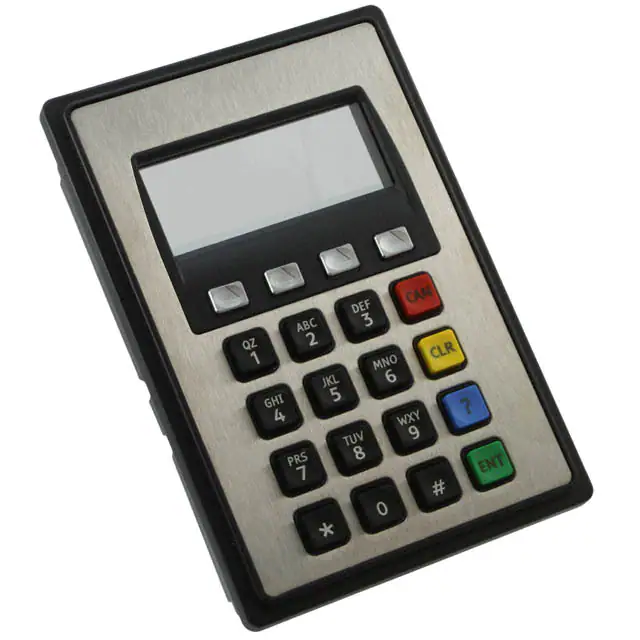

FT2K0503SWITCH KEYPAD 20KEY 0.05A 24V |
12 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
EZ06-23001SWITCH KEYPAD 6KEY NON-ILLUM |
9 |
|
Datasheet |
NAV-Pad™ | Bulk | Active | Conductive Rubber | 6 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | USB Socket | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-430013SWITCH KEYPAD 2KEY ILLUM |
10 |
|
Datasheet |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
