Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
27899SWITCH KEYPAD 16KEY NON-ILLUM |
42 |
|
Datasheet |
- | Bulk | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | Telephone Format, A ~ D | White | Blue, Red | Panel Mount, Front | Cable with Connector | - | - | - | - | - | - |
|
87CC3-201SWITCH KEYPAD 1KEY 0.01A 24V |
68 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 1 | 1 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
70040103SWITCH KEYPAD 4KEY 0.05A 24V |
40 |
|
Datasheet |
700 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Gray Housing |
|

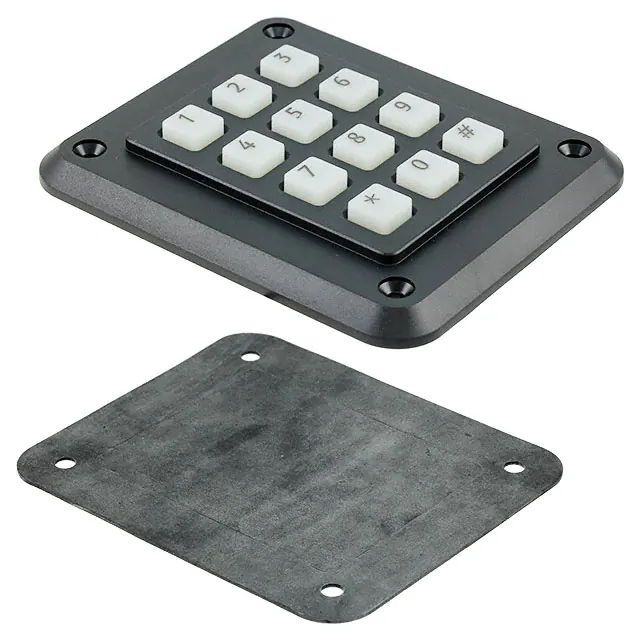

3K12T103SWITCH KEYPAD 12KEY 0.05A 24V |
18 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

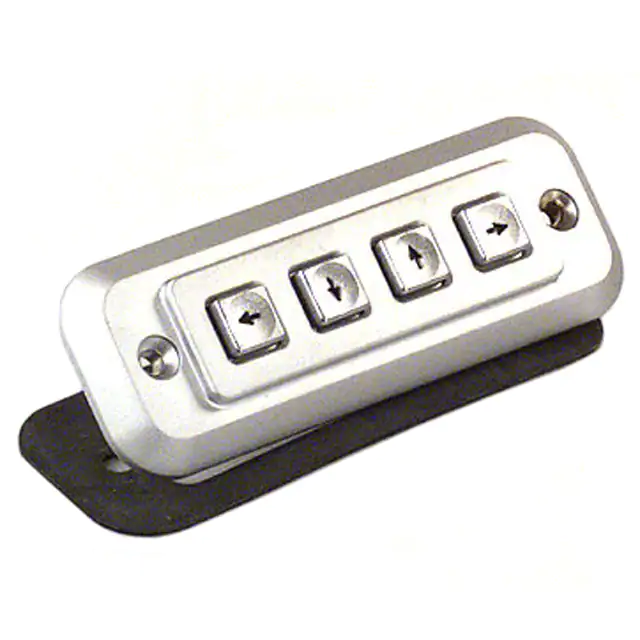

1K041103SWITCH KEYPAD 4KEY 0.05A 24V |
18 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Arrows | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

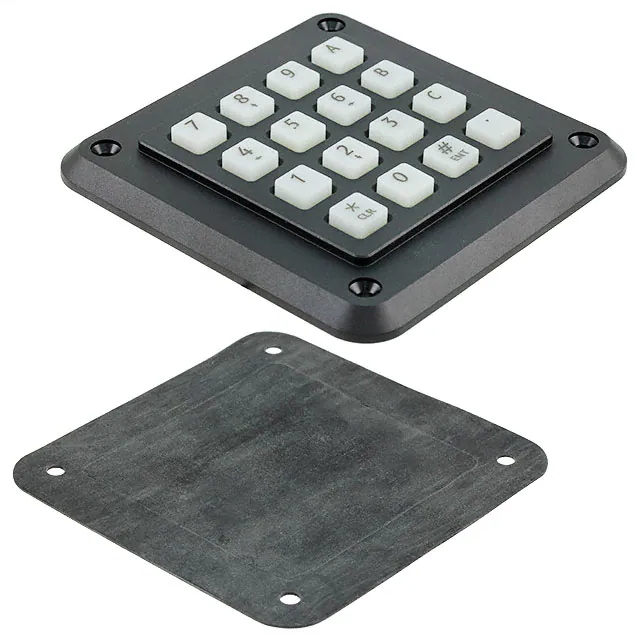

2K160103SWITCH KEYPAD 16KEY 0.05A 24V |
22 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

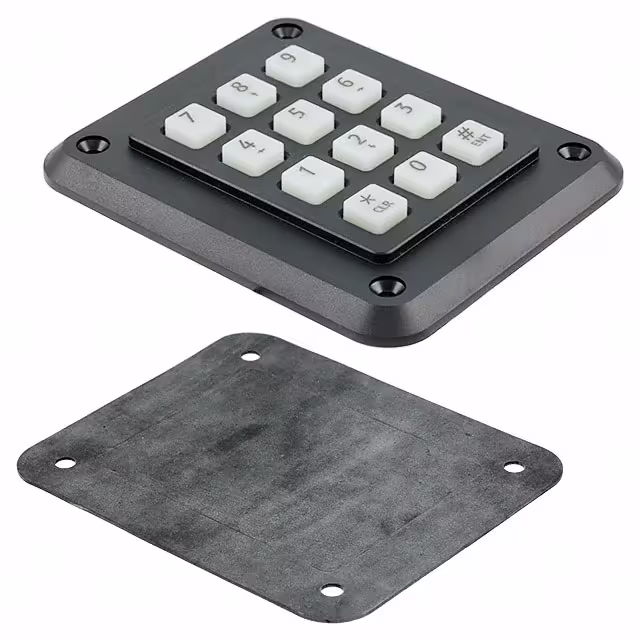

2K120103SWITCH KEYPAD 12KEY 0.05A 24V |
15 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

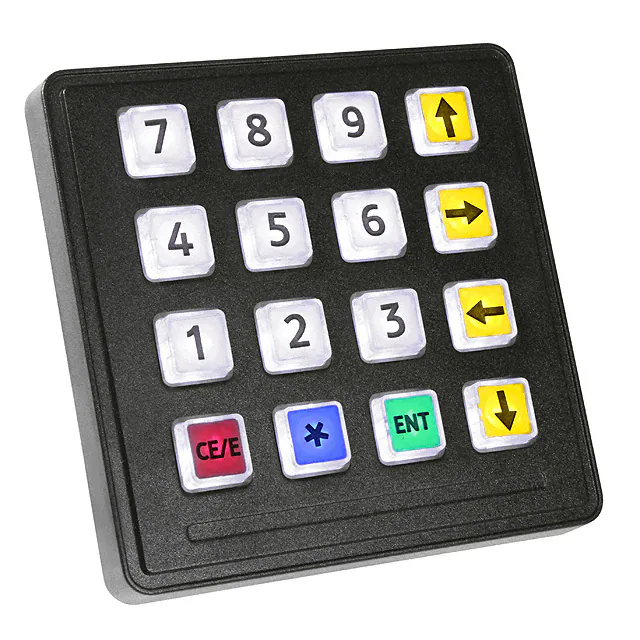

7207-161W203SWITCH KEYPAD 16KEY 0.05A 24V |
3 |
|
Datasheet |
720 GFX-i | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|
84LS-AB2-112-NSWITCH KEYPAD 12KEY 0.01A 24V |
23 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

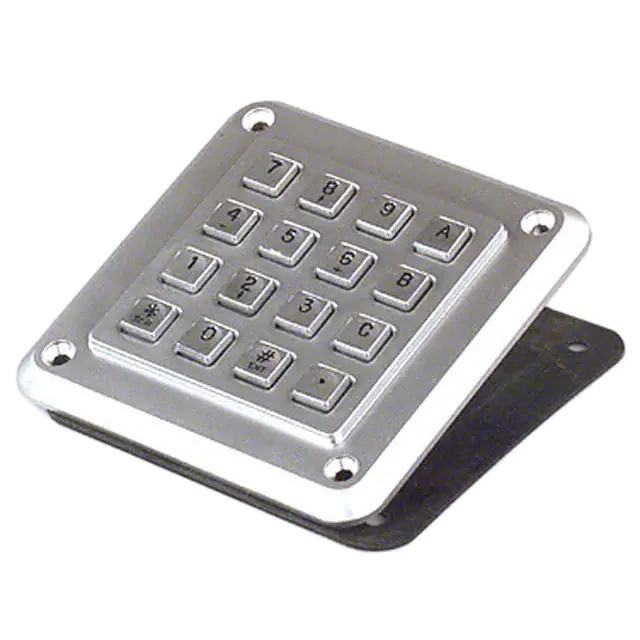

1K160103SWITCH KEYPAD 16KEY 0.05A 24V |
22 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

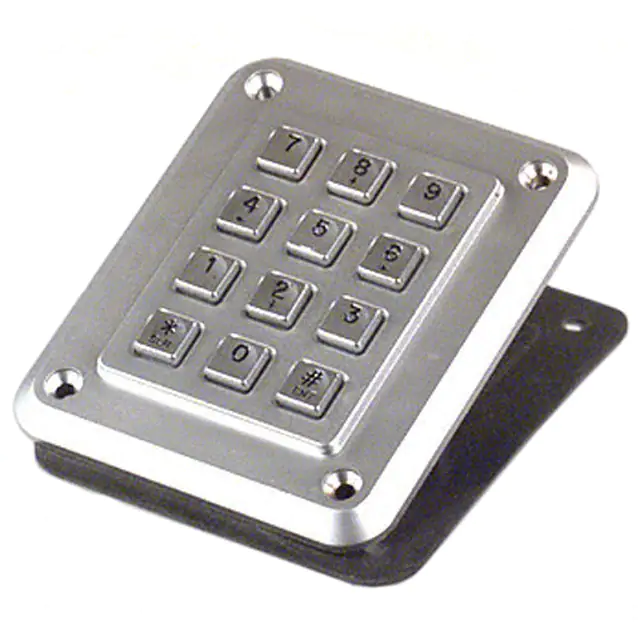

1K120103SWITCH KEYPAD 12KEY 0.05A 24V |
20 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
EZB6-530003SWITCH KEYPAD 6KEY ILLUM |
24 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

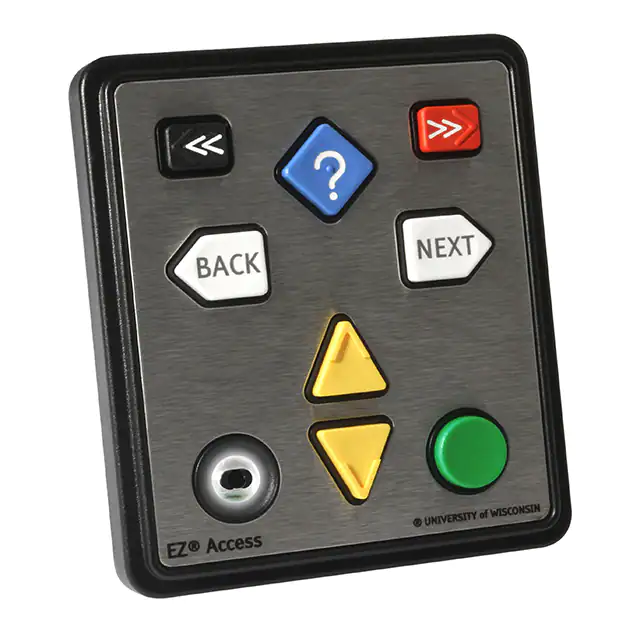

EZ08-23001SWITCH KEYPAD 8KEY NON-ILLUM |
23 |
|
Datasheet |
NAV-Pad™ | Bulk | Active | Conductive Rubber | 8 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | USB Socket | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
3K208-G2-2RC3AWSWITCH KEYPAD 8KEY ILLUM |
15 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 4 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K208-G2-4RC3AWSWITCH KEYPAD 8KEY ILLUM |
7 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K015-G2-3RC3AWSWITCH KEYPAD 15KEY ILLUM |
22 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
82-150-38SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
25 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
87EC3-201SWITCH KEYPAD 3KEY 0.01A 24V |
34 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 3 | 3 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
96AB2-152-RSWITCH KEYPAD 12KEY 0.005A 12V |
12 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | White | Black | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|

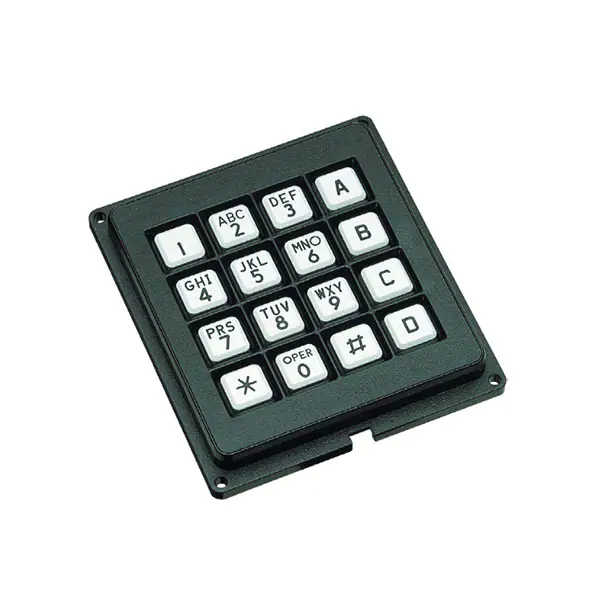

86BB2-001SWITCH KEYPAD 16KEY 0.01A 24V |
62 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
