Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YFT KNI 12B 19MEMBRANE KEYPAD |
173 |
|
Datasheet |
YFT KNI | Bulk | Active | Snap Dome | 12 | 3 x 4 | - | - | Metal | - | Telephone Format | Black | White | Panel Mount, Front | Cable with Connector | Rectangular - 74.00mm x 54.00mm | - | - | - | - | - |
|
96AB2-102-RSWITCH KEYPAD 12KEY 0.005A 12V |
138 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|

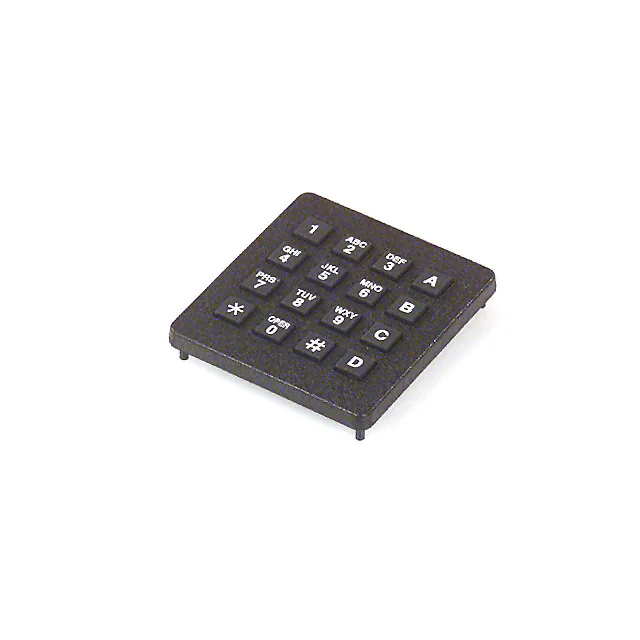

96BB2-056-FSWITCH KEYPAD 16KEY 0.005A 12V |
148 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|

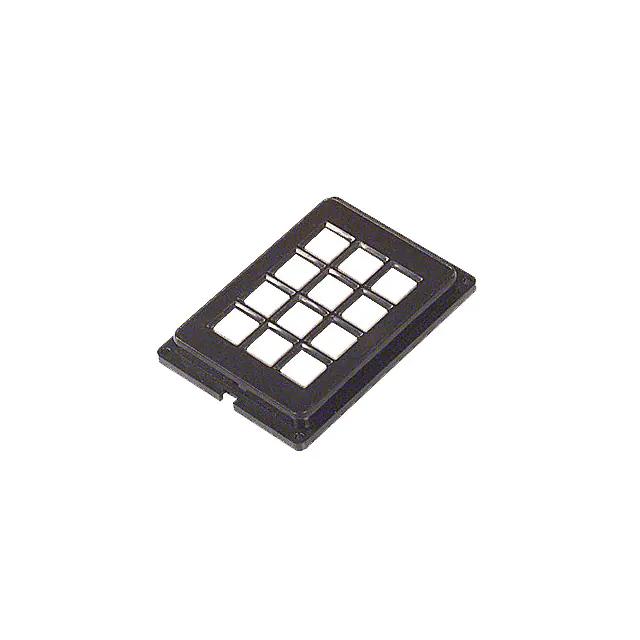

88AB2SWITCH KEYPAD 12KEY 0.01A 24V |
119 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
FMBP16BFSWITCH KEYPAD 16KEY 0.02A 24V |
6 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Illuminated - Amber | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | Gray | White | Panel Mount, Front | Cable with Connector | - | -15°C ~ 50°C | - | 2.1 VDC | 0.02A @ 24VDC | - |
|

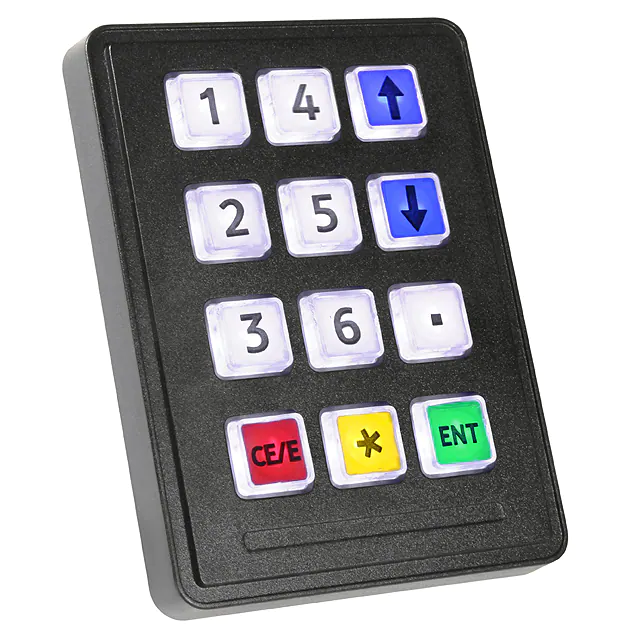

7207-121W203SWITCH KEYPAD 12KEY 0.05A 24V |
36 |
|
Datasheet |
720 GFX-i | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|

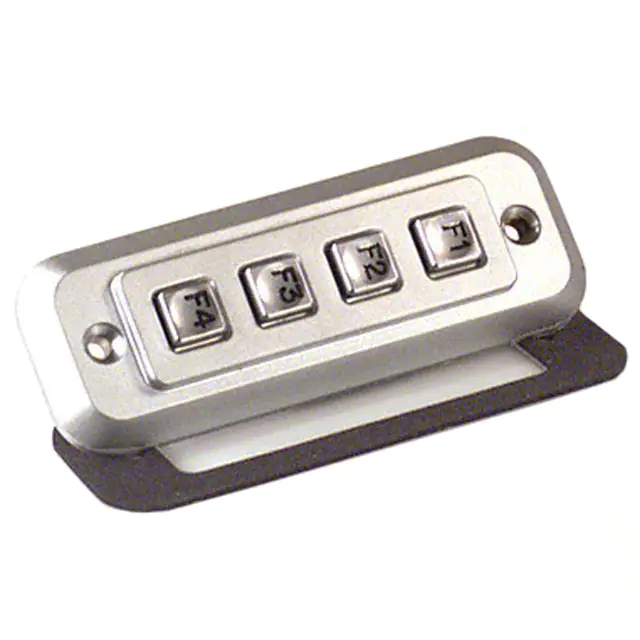

1K042103SWITCH KEYPAD 4KEY 0.05A 24V |
75 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | F1 ~ F4 | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

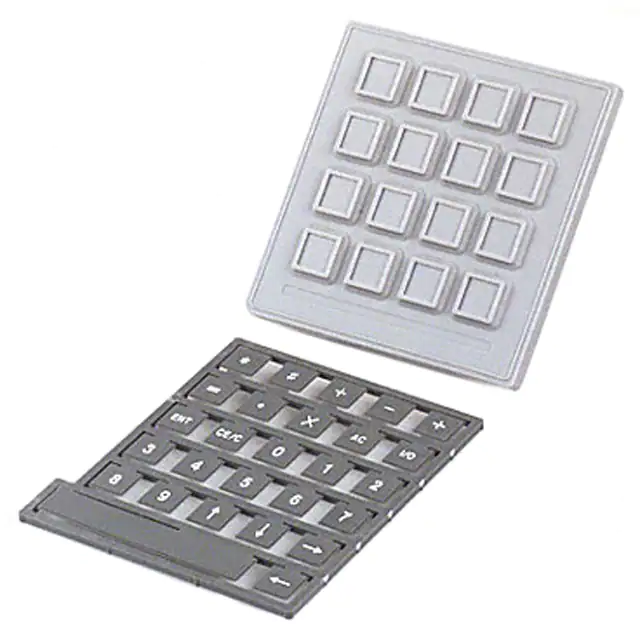

70160103SWITCH KEYPAD 16KEY 0.05A 24V |
62 |
|
Datasheet |
700 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Gray Housing |
|

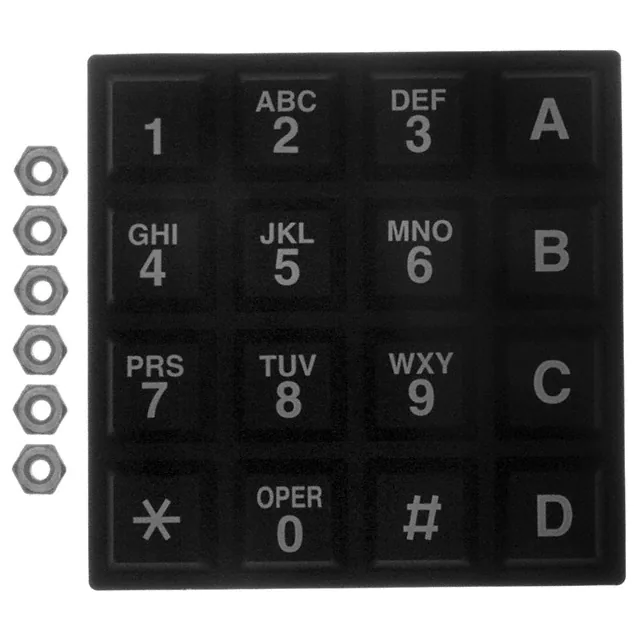

84LS-BB2-016-NSWITCH KEYPAD 16KEY 0.01A 24V |
59 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
88BA2-072SWITCH KEYPAD 16KEY 0.01A 24V |
43 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | White | Blue | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

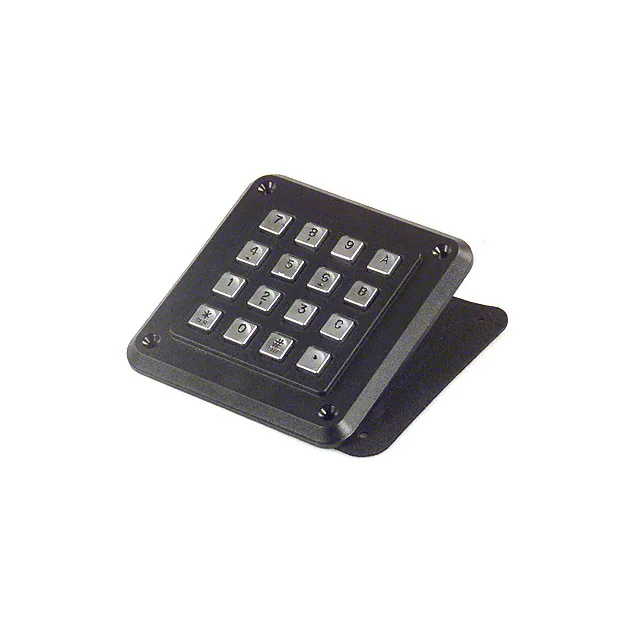

PLX160203SWITCH KEYPAD 16KEY 0.05A 24V |
81 |
|
Datasheet |
1000 PLX | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

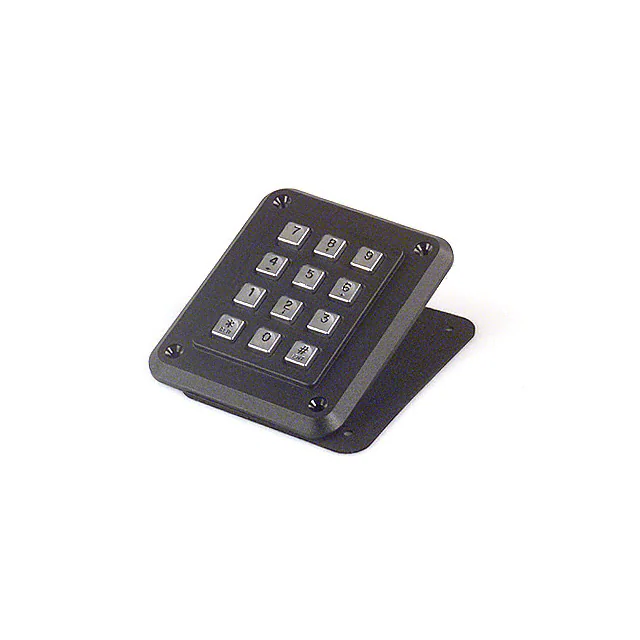

PLX120203SWITCH KEYPAD 12KEY 0.05A 24V |
45 |
|
Datasheet |
1000 PLX | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Calculator Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

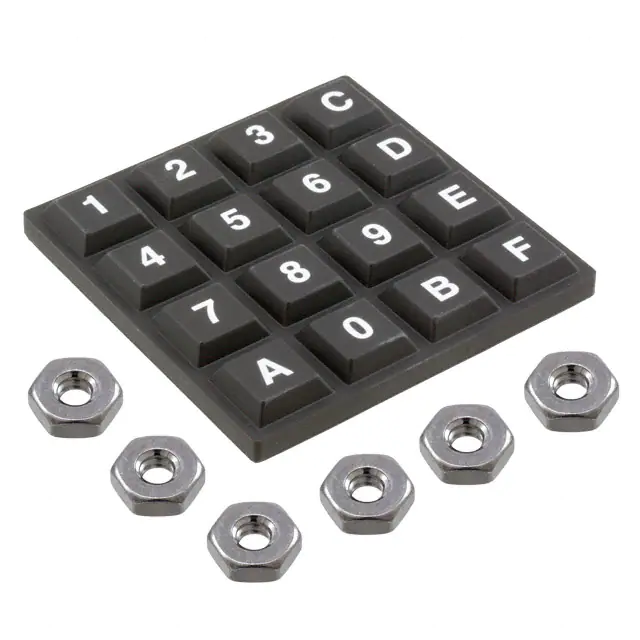

84LS-BB2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
100 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ F | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

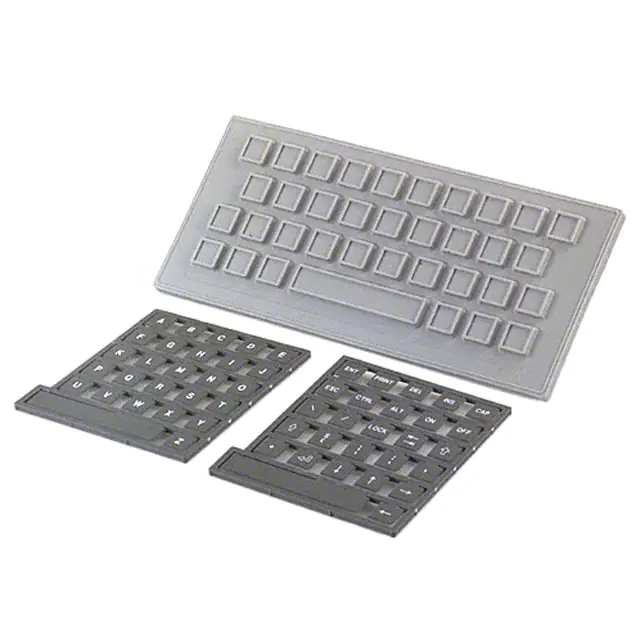

70360103SWITCH KEYPAD 36KEY 0.05A 24V |
43 |
|
Datasheet |
700 | Bulk | Active | Conductive Rubber | 36 | - | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Gray Housing |
|

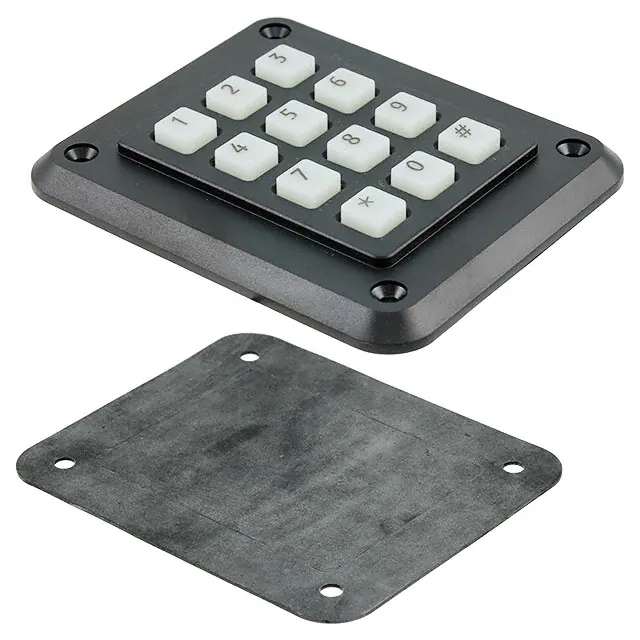

2K12T103SWITCH KEYPAD 12KEY 0.05A 24V |
62 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

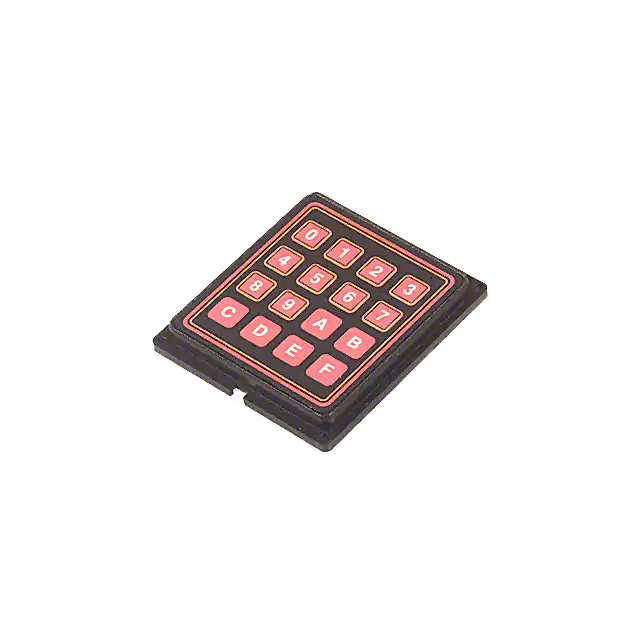

88BB2-082SWITCH KEYPAD 16KEY 0.01A 24V |
93 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | White | Red | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
EZB6-530023SWITCH KEYPAD 6KEY ILLUM |
49 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
PART 4X4 KEYPADSWITCH KEYPAD 4X4 |
473 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
86BB2-004SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
86JB2-203SWITCH KEYPAD 20KEY 0.01A 24V |
0 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 20 | 5 x 4 | Non-Illuminated | Partially Interchangeable | Polymer, Transparent Key Cap | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
