Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82-601-89SWITCH KEYPAD 6KEY 0.1A 5V |
0 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 6 | 3 x 2 | Non-Illuminated | Fixed | Polymer | Independent Switches (SPST) | Telephone Format | White | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
96BB2-001-FSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Blank Buttons | - | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
83BB1-001SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
83 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front | Pin Header | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
83BB1-006SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
83 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
86BA2-001SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | - | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
|
88AC2-143SWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Common Bus | Telephone Format | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
|
88AC2-152SWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Common Bus | Telephone Format | Blue, White | Blue, White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
88BB2-052SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | Black, Blue | Blue, White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

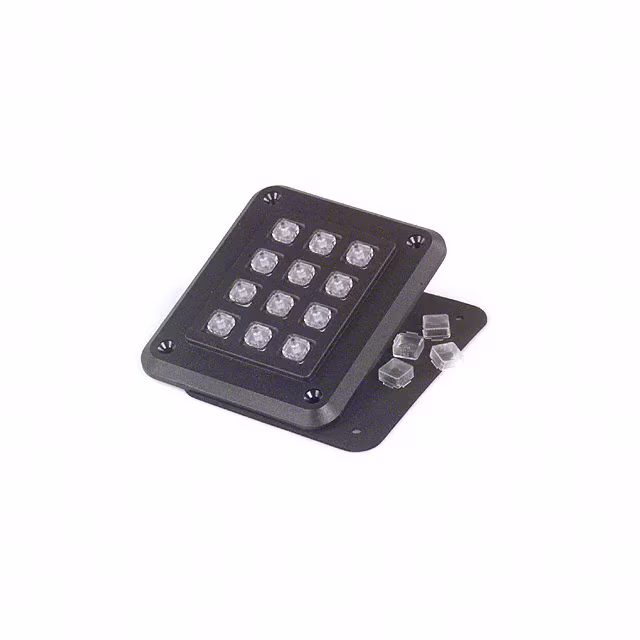

GSLW120203SWITCH KEYPAD 12KEY 0.05A 24V |
9 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|
3KLW160103SWITCH KEYPAD 16KEY 0.05A 24V |
5 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|
|
87AB3-201SWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
87 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front | Pin Header | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
84S-BC2-014SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

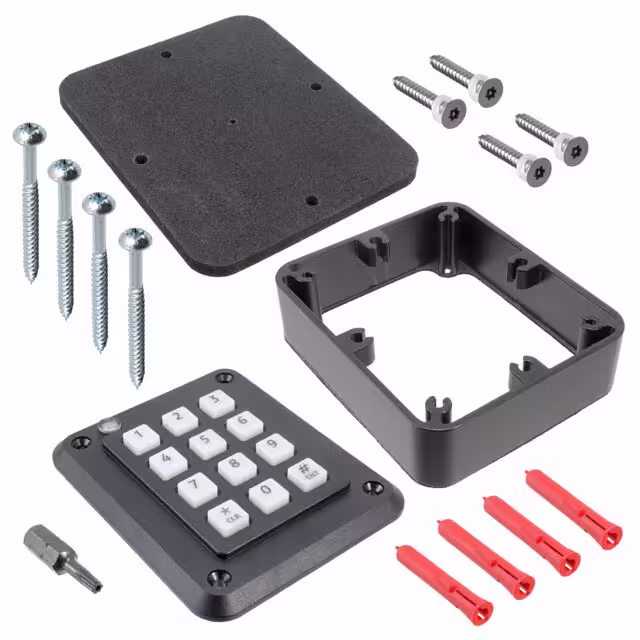

WE2KT103SWITCH KEYPAD 12KEY NON-ILLUM |
2 |
|
- |
AXS | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Wiegand™ | Telephone Format | Gray | White | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|

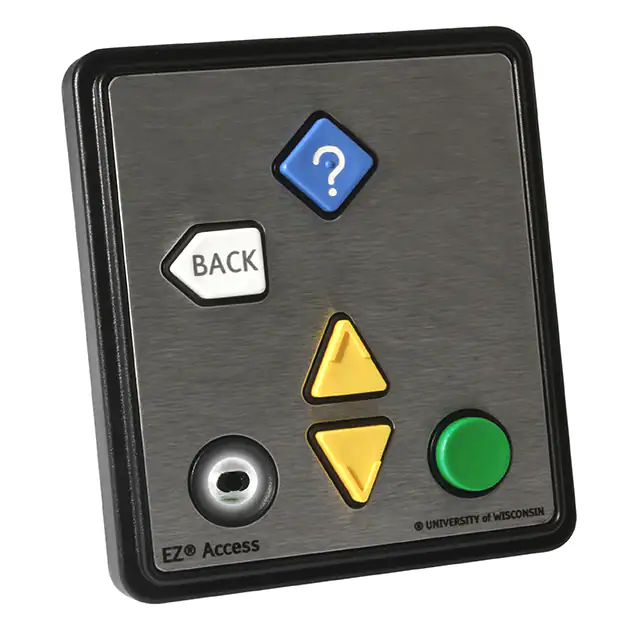

EZ05-23001SWITCH KEYPAD 5KEY NON-ILLUM |
4 |
|
Datasheet |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 5 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | USB Socket | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

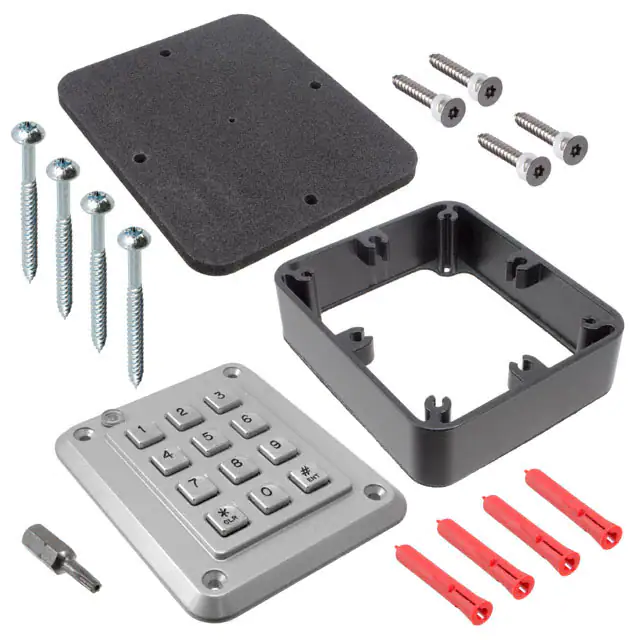

WE1KT103SWITCH KEYPAD 12KEY NON-ILLUM |
4 |
|
- |
AXS | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Wiegand™ | Telephone Format | Black | Silver | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|
|
PKP-2200-SI-DK42x2 Keypad icons blank RGB ILLUM |
9 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
505201SWITCH KEYPAD 6KEY ILLUM |
9 |
|
Datasheet |
- | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - Amber | Fixed | - | CAN Bus (J1939) | 1 ~ 6 | - | - | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

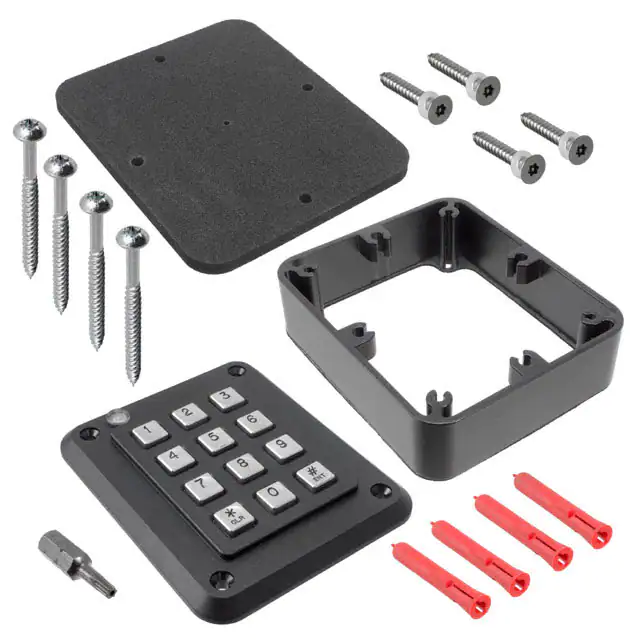

WEPLXT203SWITCH KEYPAD 12KEY NON-ILLUM |
2 |
|
- |
AXS | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Wiegand™ | Telephone Format | Black | Silver | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|
505202SWITCH KEYPAD 8KEY ILLUM |
11 |
|
Datasheet |
- | Box | Active | Snap Dome | 8 | 4 x 2 | Illuminated - Amber | Fixed | - | CAN Bus (J1939) | 1 ~ 8 | - | - | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
|
PKP-2500-SI-DK22x5 Keypad icons1-10 RGB ILLUM |
9 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
