Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB6-430023SWITCH KEYPAD 6KEY ILLUM |
4 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

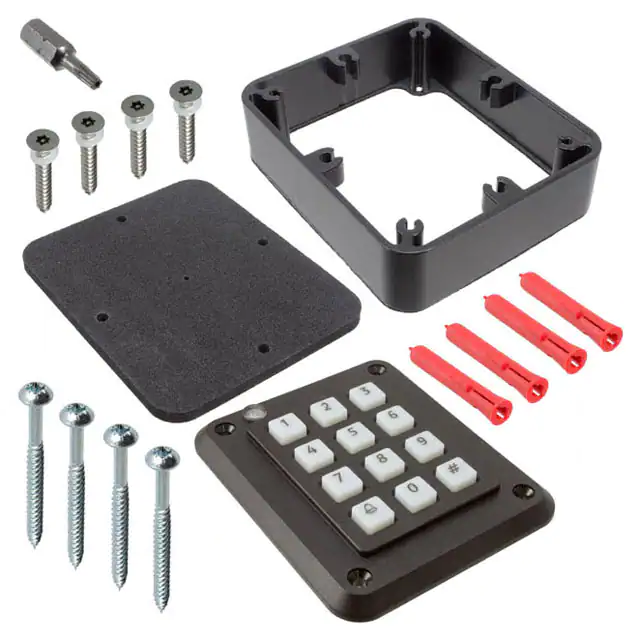

DE2KT103SWITCH KEYPAD 12KEY NON-ILLUM |
2 |
|
Datasheet |
AXS | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Non-Standard (Controller Included) | Telephone Format | Gray | White | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|
09-0075.3142SWITCH KEYPAD 6KEY 0.03A 32V |
5 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0075.3132SWITCH KEYPAD 6KEY 0.03A 32V |
4 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
3K008-G2-4RC3AWSWITCH KEYPAD 8KEY ILLUM |
25 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K012-G2-4RC3AWSWITCH KEYPAD 12KEY ILLUM |
25 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 46.99mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K206-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
24 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K006-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
22 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
09-0025.1112SWITCH KEYPAD 6KEY 0.03A 32V |
2 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0015.1112SWITCH KEYPAD 6KEY 0.03A 32V |
2 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
3K208-G2-4RC3AGSWITCH KEYPAD 8KEY ILLUM |
4 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
09-0A72.3142SWITCH KEYPAD 6KEY 0.03A 32V |
2 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0A72.3132SWITCH KEYPAD 6KEY 0.03A 32V |
2 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0A12.1111SWITCH KEYPAD 6KEY 0.03A 32V |
6 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0025.1111SWITCH KEYPAD 6KEY 0.03A 32V |
20 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
82-150-17SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
14 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Fixed | Polymer | Independent Switches (SPST) | No Legend | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
96AB2-152-RSSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | White | Black | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
82-301-61SWITCH KEYPAD 3KEY 0.1A 5V |
96 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
87HC3-201SWITCH KEYPAD 6KEY 0.01A 24V |
0 |
|
Datasheet |
87 | Bulk | Active | Snap Dome | 6 | 6 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
82-601-85SWITCH KEYPAD 6KEY 0.1A 5V |
0 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 6 | 3 x 2 | Non-Illuminated | Fixed | Polymer | Independent Switches (SPST) | Telephone Format | White | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
Keypad Switches Electronic Components
Explore Keypad Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
