| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
2,877 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
FP100R12N3T4PB81BPSA1LOW POWER ECONO |
2,858 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG1275W-XN2MMIGBT MOD 1200V 105A 368W |
3,657 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 368 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
DF300R07PE4B6BOSA1IGBT MOD 650V 300A 940W |
7,715 |
|
- |
EconoPACK™ 4 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 300 A | 940 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM75TU-12FIGBT MODULE 600V 75A 290W |
9,601 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 600 V | 75 A | 290 W | 2.2V @ 15V, 75A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS150R17N3E4B11BOSA1IGBT MOD 1700V 150A 835W |
6,864 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 835 W | 2.3V @ 15V, 150A | 1 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD450R12KE4HPSA1MEDIUM POWER 62MM |
3,514 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GD120DLCBOSA1IGBT MOD 1200V 85A 350W |
2,980 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.6V @ 15V, 50A | 84 µA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
2,359 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
8,855 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

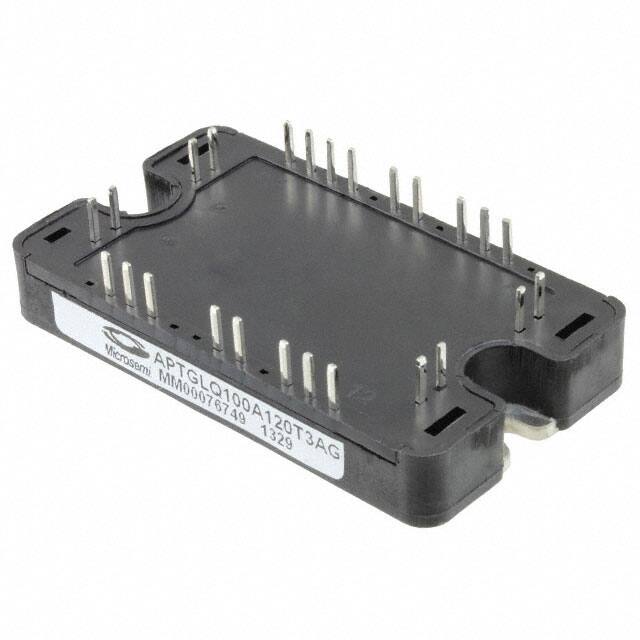

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 |
3,197 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGF90TDU60PGIGBT MODULE 600V 110A 416W SP6P |
3,424 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Triple, Dual - Common Source | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
|
CM75RL-24NFIGBT MOD 1200V 75A 520W |
5,526 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
MG1275H-XN2MMIGBT MOD 1200V 105A 348W |
7,361 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 348 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
NXH800A100L4Q2F2P2GMASS MARKET GEN3 Q2PACK NEGATIVE |
2,228 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1000 V | 309 A | 714 W | 2.3V @ 15V, 400A | 20 µA | 49700 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 51-PIM/Q2PACK (93x47) |
|
|
MIXA100W1200TEHIGBT MODULE 1200V 155A 500W E3 |
3,057 |
|
- |
- | E3 | Box | Active | PT | Three Phase Inverter | 1200 V | 155 A | 500 W | 2.1V @ 15V, 100A | 300 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|

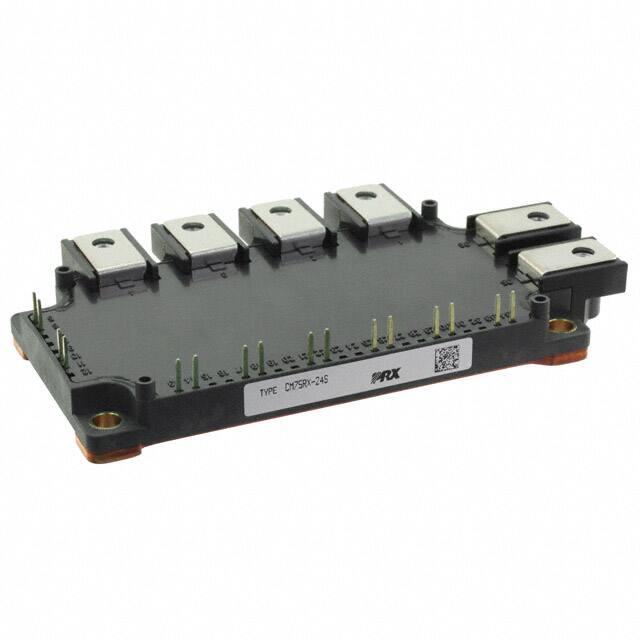

CM75RX-24SIGBT MOD 1200V 75A 600W |
6,600 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.15V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-24FIGBT MOD 1200V 150A 600W |
5,828 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 150 A | 600 W | 2.4V @ 15V, 150A | 1 mA | 59 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TU-24FIGBT MOD 1200V 50A 320W |
7,344 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 50 A | 320 W | 2.4V @ 15V, 50A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

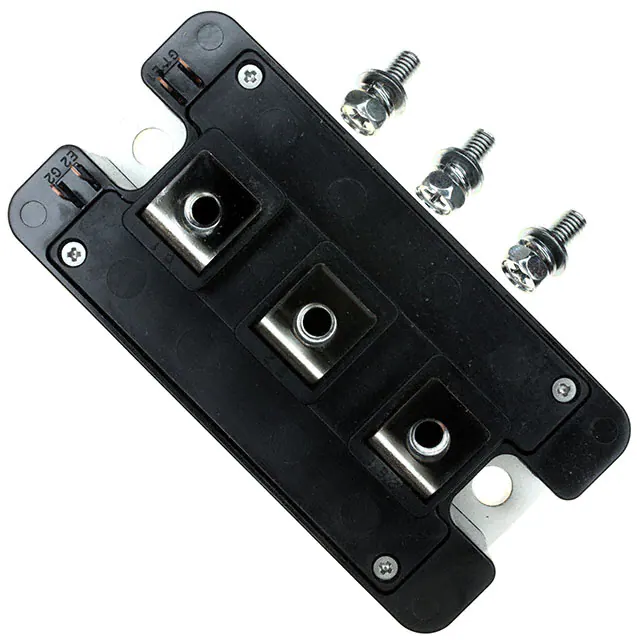

CM300DY-12NFIGBT MOD 600V 300A 780W |
9,235 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.2V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
