IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGF350A60GIGBT MODULE 600V 430A 1562W SP6 |
8,807 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 430 A | 1562 W | 2.5V @ 15V, 360A | 200 µA | 17.2 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
APTGT75DU120TGIGBT MODULE 1200V 100A 350W SP4 |
6,677 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
MG06300D-BN4MMIGBT MODULE 600V 300A 940W D3 |
4,967 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 940 W | 1.45V @ 15V, 300A (Typ) | 1 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT580U60D4GIGBT MODULE 600V 760A 1600W D4 |
2,804 |
|
- |
- | D4 | Bulk | Obsolete | Trench Field Stop | Single | 600 V | 760 A | 1600 W | 1.9V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
|
FS150R12N3T4PB81BPSA1LOW POWER ECONO |
5,118 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRG7T300CL12BIGBT MOD 1200V 570A POWIR 62 |
7,178 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 570 A | 1600 W | 2.2V @ 15V, 300A | 4 mA | 42.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
APTGT100TL60T3GIGBT MODULE 600V 150A 340W SP3 |
2,536 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
FF450R12KE7PEHPSA1MEDIUM POWER 62MM |
5,148 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 100 µA | 70800 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
FF450R12KE7PHPSA1MEDIUM POWER 62MM |
8,134 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 100 µA | 70800 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
NXH160T120L2Q2F2SGPIM 1200V, 160A SPLIT TNP |
1 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG12200D-BN2MMIGBT MODULE 1200V 290A 1050W D3 |
7,226 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 290 A | 1050 W | 1.7V @ 15V, 200A (Typ) | 1 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
|
APTGL40X120T3GIGBT MODULE 1200V 65A 220W SP3 |
9,728 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
CM50MXA-24SIGBT MOD 1200V 50A 355W |
8,962 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 50 A | 355 W | 2.25V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
MG1250W-XBN2MMIGBT MOD 1200V 75A 260W |
5,626 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
7,245 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
MII150-12A4IGBT MOD 1200V 180A 760W Y3DCB |
9,348 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 180 A | 760 W | 2.7V @ 15V, 100A | 7.5 mA | 6.6 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
7,005 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|

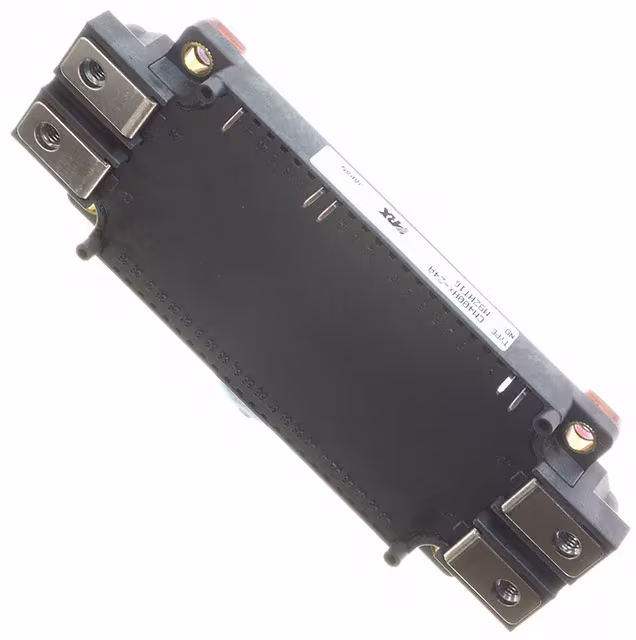

CM400HX-24AIGBT MOD 1200V 400A 2450W |
4,981 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 400 A | 2450 W | 2.6V @ 15V, 400A | 1 mA | 66 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MWI75-12T7TIGBT MODULE 1200V 110A 355W E2 |
9,890 |
|
- |
- | E2 | Box | Obsolete | Trench | Three Phase Inverter | 1200 V | 110 A | 355 W | 2.15V @ 15V, 75A | 4 mA | 5.35 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
8,510 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
