IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT225SK170GIGBT MODULE 1700V 340A 1250W SP6 |
9,017 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
CM100TU-24FIGBT MOD 1200V 100A 500W |
8,922 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 100 A | 500 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

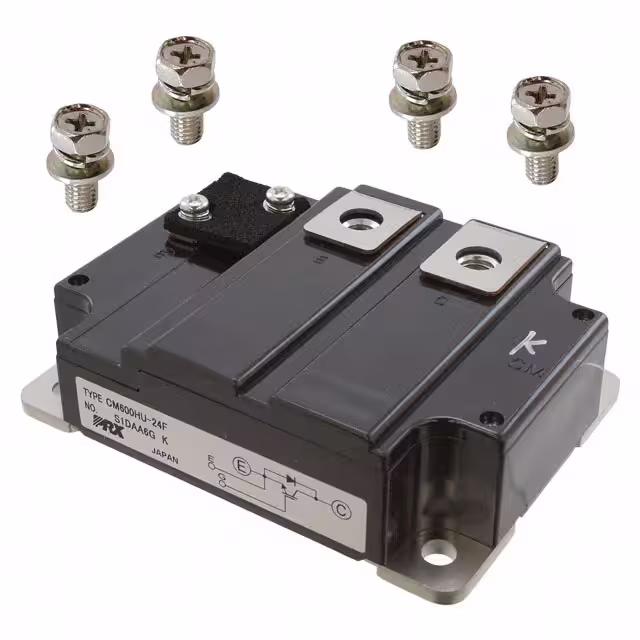

CM600HU-24FIGBT MOD 1200V 600A 2400W |
7,560 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 1200 V | 600 A | 2400 W | 2.4V @ 15V, 600A | 2 mA | 230 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF600R12ME4PBOSA1IGBT MODULE VCES 600V 600A |
9,036 |
|
- |
EconoDUAL™ 3 | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF600R12ME4PB11BOSA1IGBT MODULE VCES 600V 600A |
4,500 |
|
- |
EconoDUAL™ 3 | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG17300WB-BN4MMIGBT MODULE 1700V 375A 1650W WB |
9,392 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 375 A | 1650 W | 2.45V @ 15V, 300A | 3 mA | 27 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | WB |
|
CM600DY-24SIGBT MOD 1200V 600A 4050W |
7,460 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 600 A | 4050 W | 2.25V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF600R12ME4CB11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
7,124 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
APTGT300DH60GIGBT MODULE 600V 430A 1150W SP6 |
3,242 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT400DA120GIGBT MODULE 1200V 560A 1785W SP6 |
8,839 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT400SK120GIGBT MODULE 1200V 560A 1785W SP6 |
8,470 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
FS200R07A1E3BOSA1IGBT MOD 650V 250A 790W |
5,833 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 650 V | 250 A | 790 W | 1.9V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DU-24NFHIGBT MOD 1200V 400A 1040W |
9,754 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 1040 W | 6.5V @ 15V, 400A | 1 mA | 63 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTGL475U120D4GIGBT MODULE 1200V 610A 2082W D4 |
5,273 |
|
- |
- | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2082 W | 2.2V @ 15V, 400A | 4 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
APTGLQ200HR120GIGBT MODULE 1200V 300A 1000W SP6 |
3,102 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | - | 1200 V | 300 A | 1000 W | 2.4V @ 15V, 160A | 200 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
|
APTGT150TA60PGIGBT MODULE 600V 225A 480W SP6P |
5,692 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT150TDU60PGIGBT MODULE 600V 225A 480W SP6P |
9,156 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
APTGT75TA120PGIGBT MODULE 1200V 100A 350W SP6P |
2,704 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
APTGT75TDU120PGIGBT MODULE 1200V 100A 350W SP6P |
8,051 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | No | - | Chassis Mount | SP6-P |
|
APTGL475U120DAGIGBT MODULE 1200V 610A 2307W SP6 |
6,142 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2307 W | 2.2V @ 15V, 400A | 4 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
