Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
046801.5NRHFFUSE BRD MNT 1.5A 63VAC/VDC 1206 |
20,394 |
|
Datasheet |
SlimLine™ 468 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 63 V | 63 V | Slow Blow | 50A | 0.288 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
0251.500NRT1LFUSE BRD MT 500MA 125VAC/VDC AXL |
15,372 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0598 | CCC, CSA, cURus, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|

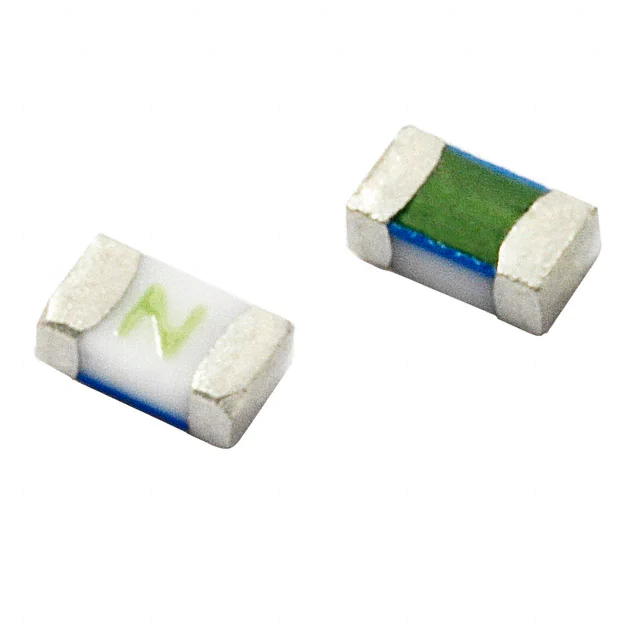

0441006.WRFUSE BOARD MOUNT 6A 32VDC 0603 |
14,976 |
|
Datasheet |
441 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | - | 32 V | Fast Blow | 50A | 2.6049 | CSA, UL | -55°C ~ 150°C | - | 0.061" L x 0.033" W x 0.020" H (1.54mm x 0.85mm x 0.50mm) | |
|
|
0251001.NRT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
8,794 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251007.MRT1LFUSE BRD MNT 7A 125VAC/VDC AXIAL |
4,909 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 7 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 10.4 | CSA, cURus, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
8020.5021.PTFUSE CERM 10A 500VAC 400VDC 3AB |
4,956 |
|
Datasheet |
SHT 6.3X32 | - | Active | Through Hole | Cartridge, Ceramic | 10 A | 500 V | 400 V | Slow Blow | 1.5kA AC, 1kA DC | 700.0 | cURus | -40°C ~ 85°C | - | 0.270" Dia x 1.291" L (6.85mm x 32.80mm) | |
|

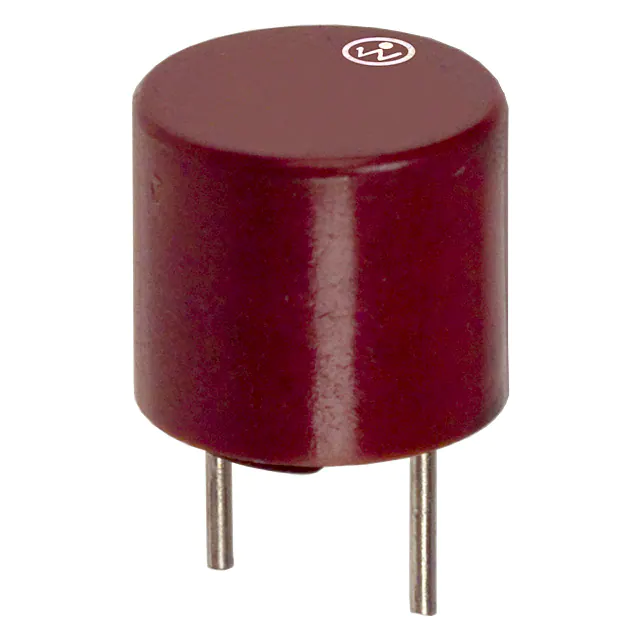

37211000411FUSE BOARD MNT 1A 250VAC RADIAL |
10,510 |
|
Datasheet |
TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 35A | 7.5 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
F0603G0R05FNTRFUSE BOARD MOUNT 50MA 63VDC 0603 |
68,314 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 mA | - | 63 V | Fast Blow | 50A | 2.0E-6 | cUL, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.024" H (1.60mm x 0.81mm x 0.61mm) | |
|
0229.250MXSPFUSE GLASS 250MA 250VAC 125VDC |
8,861 |
|
Datasheet |
229 | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 0.216 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
|
0251005.NRT1LFUSE BRD MNT 5A 125VAC/VDC AXIAL |
6,661 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 4.14 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
|
0251005.MXLFUSE BRD MNT 5A 125VAC/VDC AXIAL |
3,407 |
|
Datasheet |
PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 4.14 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
|
F0603G0R20FNTRFUSE BOARD MNT 200MA 32VDC 0603 |
1,196 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | - | 32 V | Fast Blow | - | 4.0E-5 | cUL, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.024" H (1.60mm x 0.81mm x 0.61mm) | |
|

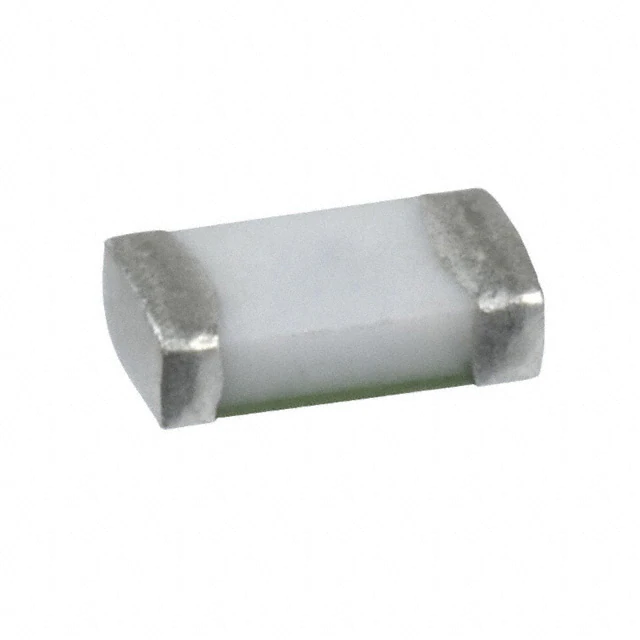

TR/3216FF3-RFUSE BRD MNT 3A 32VAC 63VDC 1206 |
12,669 |
|
Datasheet |
Chip 3216FF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 63 V | Fast Blow | 50A | 0.275 | CSA, UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.90mm) | |
|
|
F0402G0R20FNTRFUSE BOARD MNT 200MA 32VDC 0402 |
1,899 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | - | 32 V | Fast Blow | - | 4.0E-5 | cUL, UL | -55°C ~ 125°C | - | 0.039" L x 0.023" W x 0.014" H (1.00mm x 0.58mm x 0.35mm) | |
|
0440.250WRFUSE BRD MT 250MA 125VAC/VDC |
17,350 |
|
Datasheet |
440 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A | 0.00649 | CSA, UL | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.032" H (3.20mm x 1.63mm x 0.82mm) | |
|
|
F0603G0R02FNTRFUSE BOARD MOUNT 28MA 63VDC 0603 |
1,691 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 28 mA | - | 63 V | Fast Blow | 50A | 6.0E-7 | cUL, UL | -55°C ~ 125°C | Green | 0.063" L x 0.032" W x 0.024" H (1.60mm x 0.81mm x 0.61mm) | |
|
0685P9300-01FUSE BOARD MOUNT 30A 50VDC 1206 |
29,483 |
|
Datasheet |
0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | - | 50 V | Fast Blow | 250A | 255.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
F0603G0R10FNTRFUSE BOARD MNT 100MA 32VDC 0603 |
18,060 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 mA | - | 32 V | Fast Blow | - | 7.0E-6 | cUL, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.024" H (1.60mm x 0.81mm x 0.61mm) | |
|
|
0251001.MXLFUSE BRD MNT 1A 125VAC/VDC AXIAL |
11,763 |
|
Datasheet |
PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251001.MRT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
7,000 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) |
