Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

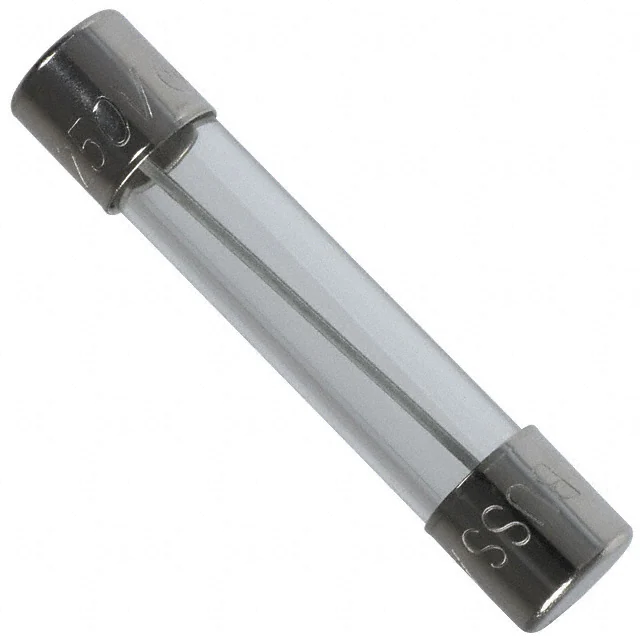

BK/AGC-5-RFUSE GLASS 5A 250VAC 3AB 3AG |
23,455 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 200A | 131.5 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0466005.NRFUSE BRD MNT 5A 32VAC 32VDC 1206 |
14,816 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Fast Blow | 50A | 1.6 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466.750NRFUSE BOARD MOUNT 750MA 63VAC/VDC |
13,441 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 63 V | 63 V | Fast Blow | 50A | 0.0276 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466001.NRHFFUSE BRD MNT 1A 63VAC 63VDC 1206 |
5,905 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 63 V | 63 V | Fast Blow | 50A | 0.0423 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
37013150410FUSE BRD MNT 3.15A 250VAC RADIAL |
4,400 |
|
Datasheet |
TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | - | Fast Blow | 50A | 3.1 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
SF-0603HIA100M-2FUSE BOARD MOUNT 1A 32VDC 0603 |
6,849 |
|
Datasheet |
SinglFuse™ SF-0603HIA-M | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 32 V | Fast Blow | 50A | 0.082 | cUL, UL | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm) | |
|
|
0466.200NRHFFUSE BRD MT 200MA 125VAC/VDC |
29,910 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 125 V | Fast Blow | 50A | 5.5E-4 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466.500NRHFFUSE BOARD MOUNT 500MA 63VAC/VDC |
16,619 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 63 V | 63 V | Fast Blow | 50A | 0.006 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466.125NRFUSE BRD MT 125MA 125VAC/VDC |
10,087 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A | 4.0E-4 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466003.NRFUSE BRD MNT 3A 32VAC 32VDC 1206 |
9,823 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Fast Blow | 50A | 0.576 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|

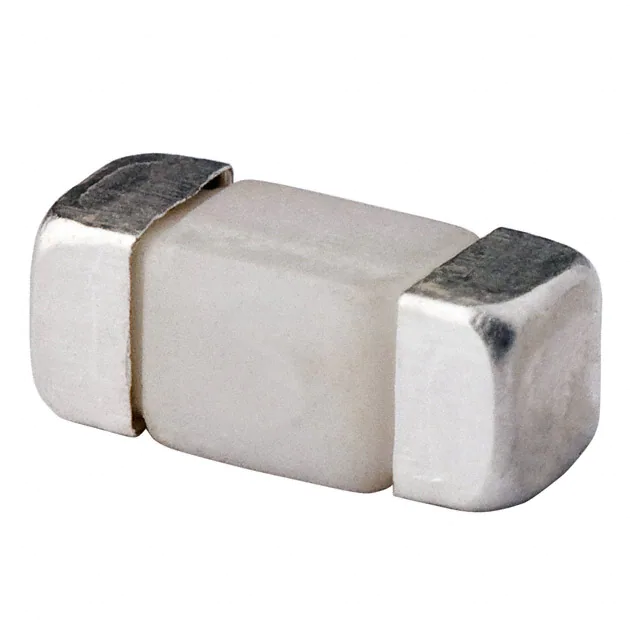

CB61F10A-TR2FUSE BRD MNT 10A 125VAC/VDC 2SMD |
8,891 |
|
Datasheet |
CB61F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 36.0 | CQC, cULus | - | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|
|
0466.750NRHFFUSE BOARD MOUNT 750MA 63VAC/VDC |
5,084 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 63 V | 63 V | Fast Blow | 50A | 0.0276 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
04661.25NRFUSE BOARD MOUNT 1.25A 63VAC/VDC |
4,239 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | 63 V | 63 V | Fast Blow | 50A | 0.064 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
BK1/GMA-500-RFUSE GLASS 500MA 250VAC 5X20MM |
3,659 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.15 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0466.500NRFUSE BOARD MOUNT 500MA 63VAC/VDC |
2,245 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 63 V | 63 V | Fast Blow | 50A | 0.006 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
SF-1206S050M-2FUSE BOARD MNT 500MA 63VDC 1206 |
6,186 |
|
Datasheet |
SinglFuse™ SF-1206SxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 63 V | Slow Blow | 50A | 0.002 | - | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm) | |
|
SF-0402S100-2FUSE BOARD MOUNT 1A 24VDC 0402 |
3,904 |
|
Datasheet |
SinglFuse™ SF-0402S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 24 V | Slow Blow | 35A | 0.01479 | UL | -40°C ~ 105°C | - | 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm) | |
|

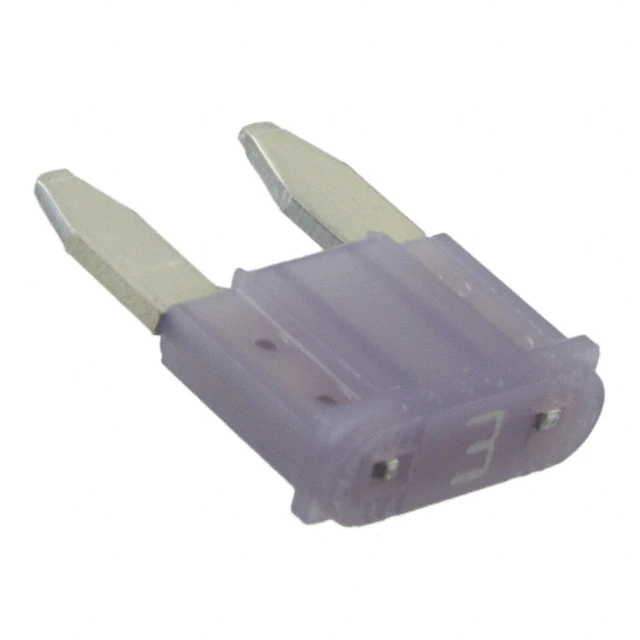

0997003.WXNFUSE AUTOMOTIVE 3A 58VDC BLADE |
1,133 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 3 A | - | 58 V | Fast Blow | 1kA | 9.4 | - | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
SF-0402S400-2FUSE BOARD MOUNT 4A 24VDC 0402 |
8,042 |
|
Datasheet |
SinglFuse™ SF-0402S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 24 V | Slow Blow | 35A | 0.1145 | UL | -40°C ~ 105°C | - | 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm) | |
|
0467002.NRFUSE BRD MNT 2A 32VAC 32VDC 0603 |
21,074 |
|
Datasheet |
467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 32 V | 32 V | Fast Blow | 35A | 0.1891 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) |
Fuses Electronic Components
Explore Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
