Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0678L9200-02FUSE BRD MT 20A 250VAC 72VDC SMD |
39,872 |
|
Datasheet |
0678L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 72 V | Medium Blow | 100A AC, 130A DC | 270.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.125" H (9.80mm x 3.05mm x 3.18mm) | |
|
0678H9200-02FUSE BRD MT 20A 250VAC 125VDC |
2,147 |
|
Datasheet |
0678H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 125 V | - | 100A AC, 1.5kA DC | 420.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.120" H (9.80mm x 3.05mm x 3.05mm) | |
|
|
0678H9150-02FUSE BRD MT 15A 250VAC 125VDC |
1,526 |
|
Datasheet |
0678H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 250 V | 125 V | - | 100A AC, 1.5kA DC | 220.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.120" H (9.80mm x 3.05mm x 3.05mm) | |
|
0467.250NRHFFUSE BRD MT 250MA 32VAC 32VDC |
1,300 |
|
Datasheet |
467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 32 V | 32 V | Fast Blow | 50A | 0.0014 | CSA, UR | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) | |
|
0685P9500-01FUSE BOARD MOUNT 50A 32VDC 1206 |
4,867 |
|
Datasheet |
0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | - | 32 V | Fast Blow | 200A | 500.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
CC12H2A-TRFUSE BOARD MOUNT 2A 63VDC 1206 |
5,217 |
|
Datasheet |
CC12H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 63 V | Slow Blow | 50A | 1.1 | cURus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
0251.125MXLFUSE BRD MT 125MA 125VAC/VDC AXL |
26,559 |
|
Datasheet |
PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.00174 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
SF-3812TM200T-2FUSE BRD MT 2A 600VAC/250DC 2SMD |
2,611 |
|
Datasheet |
SinglFuse™ SF-3812TM-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 600 V | 250 V | Slow Blow | 60A AC, 50A DC | 24.0 | UL | -55°C ~ 125°C | - | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) | |
|
0239003.HXPFUSE GLASS 3A 250VAC 5X20MM |
4,937 |
|
Datasheet |
239 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 129.51 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0218005.MXPFUSE GLASS 5A 250VAC 5X20MM |
2,331 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 111.0 | CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218002.MXPFUSE GLASS 2A 250VAC 5X20MM |
1,694 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 14.45 | CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

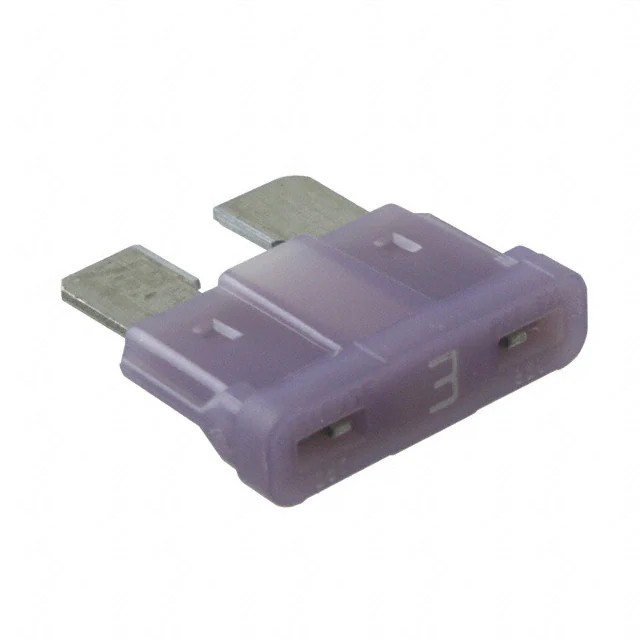

0ATO003.VFUSE AUTO 3A 32VAC/VDC BLADE |
1,346 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 3 A | 32 V | 32 V | Fast Blow | - | - | CSA, UL | - | Violet | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
02183.15MXPFUSE GLASS 3.15A 250VAC 5X20MM |
1,323 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 35A | 38.15 | CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0234004.MXPFUSE CERAMIC 4A 250VAC 5X20MM |
562 |
|
Datasheet |
234 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Medium Blow | 200A | 10.37 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3404.2419.11FUSE BRD MT 2A 277VAC 250VDC SMD |
49,512 |
|
Datasheet |
UMZ 250 | Strip | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 7.3 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|
|
3404.2422.11FUSE BRD MT 4A 277VAC 250VDC SMD |
13,151 |
|
Datasheet |
UMZ 250 | Strip | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 26.0 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|
0314015.HXPFUSE CERM 15A 250VAC 125VDC 3AB |
648 |
|
Datasheet |
314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 292.0 | CE, CSA, K-MARK, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
SF-3812TM050T-2FUSE BRD 500MA 600VAC/250VDC SMD |
551 |
|
Datasheet |
SinglFuse™ SF-3812TM-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 600 V | 250 V | Slow Blow | 60A AC, 50A DC | 1.4 | UL | -55°C ~ 125°C | - | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) | |
|
|
CC12H5A-TRFUSE BOARD MOUNT 5A 32VDC 1206 |
1,661 |
|
Datasheet |
CC12H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Slow Blow | 100A | 6.0 | cURus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|

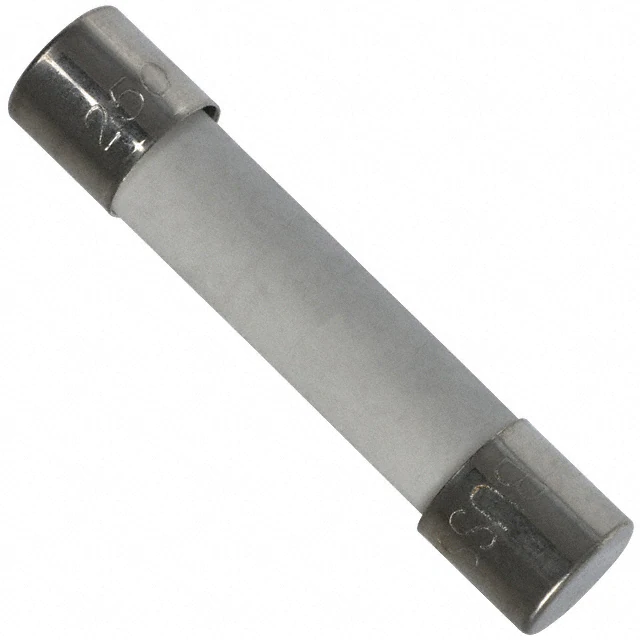

BK/ABC-10-RFUSE CERM 10A 250VAC 125VDC 3AB |
1,368 |
|
Datasheet |
ABC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 125 V | Fast Blow | 200A AC, 10kA DC | 208.8 | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
