Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3413.0114.22FUSE BOARD MNT 750MA 32VAC 63VDC |
2,601 |
|
Datasheet |
USF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 32 V | 63 V | Fast Blow | 50A | 0.05 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
SF-1206S500-2FUSE BOARD MOUNT 5A 32VDC 1206 |
4,433 |
|
Datasheet |
SinglFuse™ SF-1206S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Slow Blow | 50A | 2.533 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
0001.1012FUSE CERAMIC 6.3A 250VAC 5X20MM |
29,704 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 250 V | - | Fast Blow | 1.5kA | 36.7 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0001.2509FUSE CERAMIC 3.15A 250VAC 300VDC |
27,631 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 250 V | 300 V | Slow Blow | 1.5kA | 33.7 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3412.0124.22FUSE BRD MNT 5A 32VAC 63VDC 0603 |
10,879 |
|
Datasheet |
USF 0603 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 63 V | Fast Blow | 50A | 1.5 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
|
0001.2514FUSE CERM 10A 250VAC 150VDC 5X20 |
4,278 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 150 V | Slow Blow | 1kA AC, 1.5kA DC | 400.0 | cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2508FUSE CERM 2.5A 250VAC 300VDC |
4,257 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2.5 A | 250 V | 300 V | Slow Blow | 1.5kA | 11.7 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2512FUSE CERM 6.3A 250VAC 150VDC |
2,421 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 250 V | 150 V | Slow Blow | 1.5kA | 171.0 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2511FUSE CERM 5A 250VAC 150VDC 5X20 |
1,922 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | 150 V | Slow Blow | 1.5kA | 97.5 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-0603S300-2FUSE BOARD MOUNT 3A 32VDC 0603 |
23,551 |
|
Datasheet |
SinglFuse™ SF-0603S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | - | 32 V | Slow Blow | 50A | 0.21 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|
|
SF-0603S400-2FUSE BOARD MOUNT 4A 32VDC 0603 |
6,543 |
|
Datasheet |
SinglFuse™ SF-0603S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 32 V | Slow Blow | 50A | 0.326 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|
0466.250NRFUSE BRD MT 250MA 125VAC/VDC |
67,978 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A | 0.001 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
.jpg)
|
MFU0805FF00500P100FUSE BOARD MNT 500MA 32VDC 0805 |
9,346 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 32 V | Fast Blow | 50A | 9.0E-4 | UL | -55°C ~ 125°C | - | 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm) | |
|
3413.0331.22FUSE BOARD MOUNT 20A 32VAC 63VDC |
252,504 |
|
Datasheet |
UST 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 32 V | 63 V | Slow Blow | 100A | 110.0 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
|
3413.0332.22FUSE BOARD MOUNT 25A 32VAC 63VDC |
24,447 |
|
Datasheet |
UST 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 32 V | 63 V | Slow Blow | 100A | 220.0 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
|
SF-0603S125-2FUSE BOARD MNT 1.25A 32VDC 0603 |
8,618 |
|
Datasheet |
SinglFuse™ SF-0603S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 32 V | Slow Blow | 50A | 0.057 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|

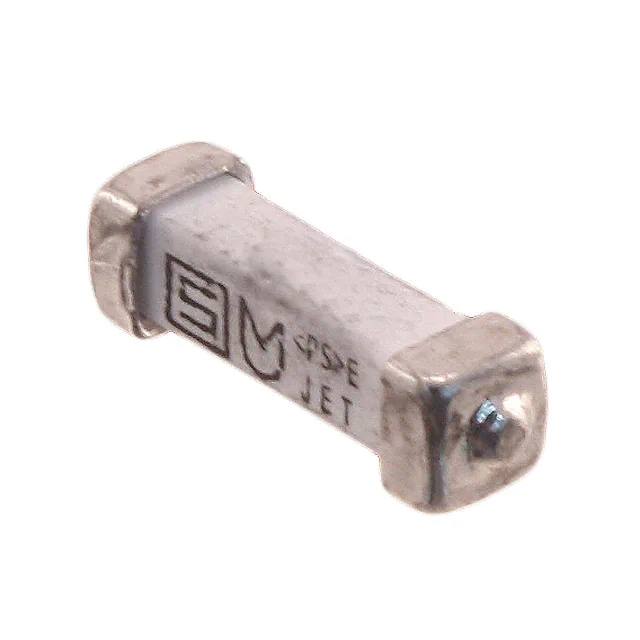

3403.0155.24FUSE BRD MNT 80MA 250VAC 125VDC |
91,418 |
|
Datasheet |
UMT 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 mA | 250 V | 125 V | Slow Blow | 200A AC, 35A DC | 0.022 | CQC, cURus, KC, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3403.0156.24FUSE BRD MNT 100MA 250VAC 125VDC |
84,003 |
|
Datasheet |
UMT 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 mA | 250 V | 125 V | Slow Blow | 200A AC, 35A DC | 0.04 | CQC, cURus, KC, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3403.0166.24FUSE BRD MT 1A 250VAC 125VDC SMD |
36,396 |
|
Datasheet |
UMT 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 125 V | Slow Blow | 200A AC, 35A DC | 2.8 | CQC, cURus, KC, PSE/JET, UL, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3403.0171.24FUSE BRD MNT 3.15A 250VAC 125VDC |
32,237 |
|
Datasheet |
UMT 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | 125 V | Slow Blow | 200A AC, 35A DC | 14.0 | CQC, cURus, KC, PSE/JET, UL, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) |
