Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0680L9120-05FUSE BRD MNT 12A 50VAC 75VDC SMD |
10,387 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 50 V | 75 V | Slow Blow | 100A AC, 500A DC | 244.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
3413.0010.22FUSE BRD MNT 250MA 125VAC 63VDC |
2,329 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0032 | CE, cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
3404.0121.22FUSE BRD MNT 5A 125VAC/VDC 2SMD |
8,663 |
|
Datasheet |
OMT 125 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Slow Blow | 100A | 20.8 | cULus | -40°C ~ 85°C | - | 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm) | |
|
BK/GMA-6-RFUSE GLASS 6A 125VAC 5X20MM |
1,689 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 6 A | 125 V | - | Fast Blow | 10kA | 45.0 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0034.3130FUSE GLASS 20A 250VAC 5X20MM |
68,773 |
|
Datasheet |
FST 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 20 A | 250 V | - | Slow Blow | 200A | 3057.0 | cURus, PSE/JET | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-0603FP050F-2FUSE BRDMT 500MA 65VAC/65DC 0603 |
15,997 |
|
Datasheet |
SinglFuse™ SF-0603FPxxxF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 65 V | 65 V | Fast Blow | 13A AC, 50A DC | 0.012 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) | |
|
|
SF-0603FP015F-2FUSE BRDMT 150MA 65VAC/65DC 0603 |
16,314 |
|
Datasheet |
SinglFuse™ SF-0603FPxxxF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 150 mA | 65 V | 65 V | Fast Blow | 13A AC, 50A DC | 6.0E-4 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) | |
|
3403.0176.24FUSE BOARD MNT 10A 250VAC 125VDC |
13,914 |
|
Datasheet |
UMT 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 250 V | 125 V | Slow Blow | 35A | 166.0 | cURus, PSE/JET | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
SF-0603SP400M-2FUSE BOARD MOUNT 4A 32VDC 0603 |
14,488 |
|
Datasheet |
SinglFuse™ SF-0603SPxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 32 V | Slow Blow | 50A | 2.3 | - | -55°C ~ 150°C | - | 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm) | |
|

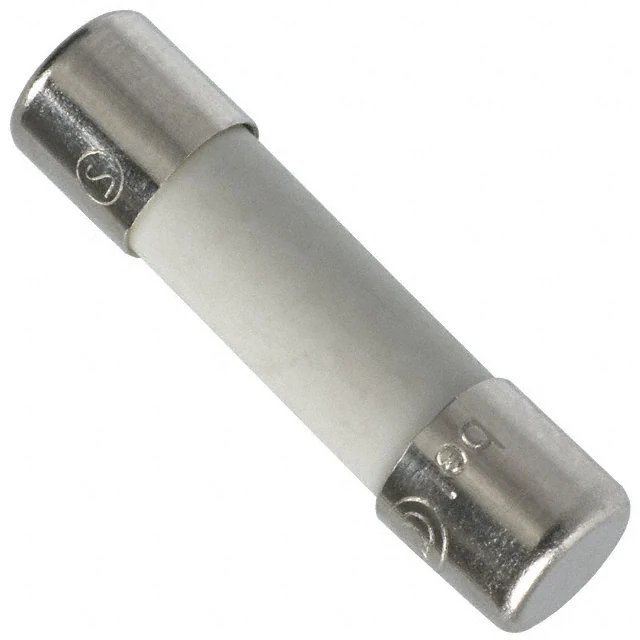

5HT 10-RFUSE CERAMIC 10A 250VAC 5X20MM |
44,754 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 1.5kA | 601.0 | CE, CSA, cURus, PSE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|

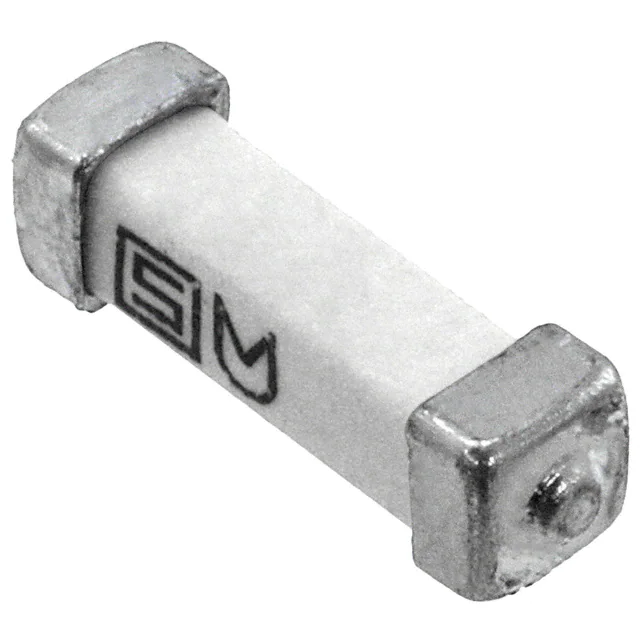

3405.0176.24FUSE BOARD MNT 10A 250VAC 125VDC |
5,741 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 250 V | 125 V | Fast Blow | 100A | 45.8 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
SF-0603SP100M-2FUSE BOARD MOUNT 1A 32VDC 0603 |
10,950 |
|
Datasheet |
SinglFuse™ SF-0603SPxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 32 V | Slow Blow | 50A | 0.093 | - | -55°C ~ 150°C | - | 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm) | |
|
0501010.WRFUSE BOARD MOUNT 10A 32VDC 1206 |
91,890 |
|
Datasheet |
501 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | - | 32 V | Fast Blow | 150A | 10.385 | CSA, UL | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
|
0440005.WRFUSE BRD MNT 5A 32VAC 32VDC 1206 |
23,925 |
|
Datasheet |
440 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Fast Blow | 50A | 4.761 | CSA, UL | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.032" H (3.20mm x 1.63mm x 0.82mm) | |
|
0466001.NRFUSE BRD MNT 1A 63VAC 63VDC 1206 |
22,279 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 63 V | 63 V | Fast Blow | 50A | 0.0423 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466.375NRFUSE BRD MT 375MA 125VAC/VDC |
16,299 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A | 0.0028 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
0466002.NRFUSE BRD MNT 2A 63VAC 63VDC 1206 |
9,334 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 63 V | 63 V | Fast Blow | 50A | 0.2326 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
SF-2410FP100W-2FUSE BRD MT 1A 250VAC/125DC 2410 |
4,367 |
|
Datasheet |
SinglFuse™ SF-2410FPxxxW | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 125 V | Fast Blow | 100A AC, 50A DC | 0.59 | UL | -55°C ~ 125°C | - | 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm) | |
|
F0402G0R05FNTRFUSE BOARD MOUNT 50MA 32VDC 0402 |
54,539 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 mA | - | 32 V | Fast Blow | - | 2.0E-6 | cUL, UL | -55°C ~ 125°C | - | 0.039" L x 0.023" W x 0.014" H (1.00mm x 0.58mm x 0.35mm) | |
|
SF-2410SP050W-2FUSE BRD 500MA 250VAC/125DC 2410 |
4,132 |
|
Datasheet |
SinglFuse™ SF-2410SPxxxW | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | 125 V | Slow Blow | 100A AC, 50A DC | 0.11 | UL | -55°C ~ 125°C | - | 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm) |
