Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10054T-1R0M-HZFIXED IND 1UH 27.5A 2.64MOHM SMD |
503 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 27.5 A | 18A | Shielded | 2.64mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
MWLA1707S-470MTFIXED IND 47UH 55MOHM 9500MA |
79 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 8.7 A | 9.5A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
768776322FIXED IND 2.2MH 180MA 5.3OHM SMD |
46 |
|
Datasheet |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 180 mA | 260mA | Unshielded | 5.3Ohm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
IHLP5050FDER220M8AIHLP-5050FD-8A 22 20% ER E3 |
41 |
|
Datasheet |
IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 9 A | 6.3A | Shielded | 33.49mOhm Max | - | 6.6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
768776312FIXED IND 1.2MH 350MA 3 OHM SMD |
31 |
|
Datasheet |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 350 mA | 350mA | Unshielded | 3Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

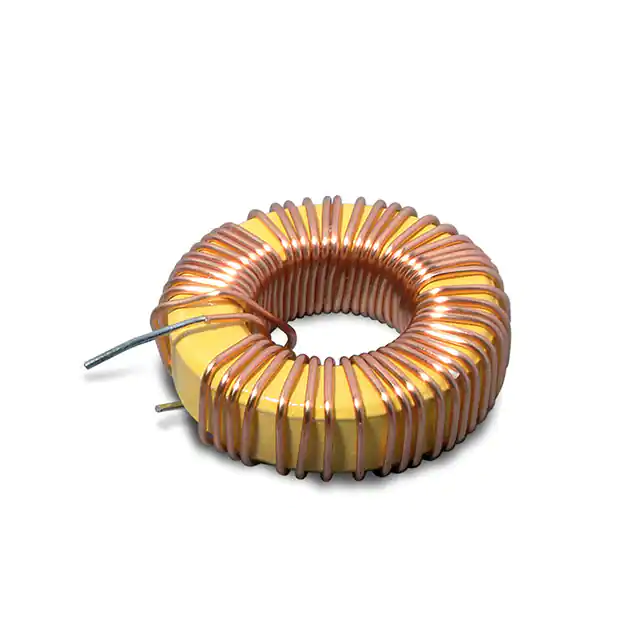

744132FIXED IND 49UH 5.8A 50 MOHM TH |
100 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 49 µH | ±20% | 5.8 A | 2.2A | Shielded | 50mOhm Max | - | 16MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.827" Dia x 0.374" W (21.00mm x 9.50mm) | - |
|
FPV1006-125-RFIXED IND 125NH 25A 0.41MOHM SMD |
170 |
|
Datasheet |
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 125 nH | ±10% | 25 A | 57A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
B82477R4683M100FIXED IND 68UH 2.8A 85 MOHM SMD |
96 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.8 A | 3.55A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
7447471222FIXED IND 2.2MH 400MA 2.7 OHM TH |
95 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 400 mA | 300mA | Shielded | 2.7Ohm Max | - | 780kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471022FIXED IND 2.2UH 8.2A 8.8 MOHM TH |
91 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 8.2 A | 10A | Shielded | 8.8mOhm Max | - | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471047FIXED IND 4.7UH 6.9A 12.2MOHM TH |
62 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.9 A | 6A | Shielded | 12.2mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7447786008FIXED IND 8.2UH 2.3A 80 MOHM SMD |
55 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±25% | 2.3 A | 2.1A | Shielded | 80mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|

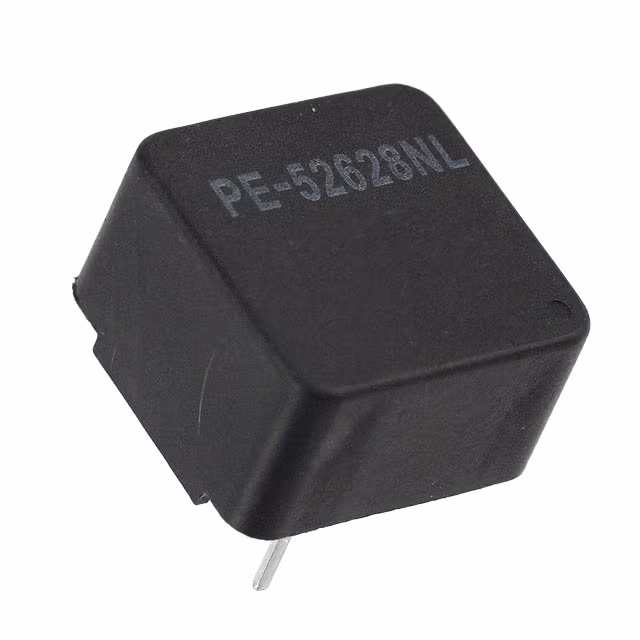

PE-52628NLFIXED IND 470UH 900MA 1.26OHM TH |
32 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
1532EFIXED IND 55UH 500MA 1 OHM TH |
62 |
|
Datasheet |
1532 | Axial | Bulk | Active | Wirewound | - | 55 µH | ±10% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.5MHz | 17MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
1210R-151KFIXED IND 150NH 910MA 250MOHM SM |
47 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 910 mA | - | Unshielded | 250mOhm Max | 30 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
1410313CFIXED IND 10UH 13A 9 MOHM TH |
41 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 µH | ±15% | 13 A | - | Unshielded | 9mOhm Max | 54 @ 50kHz | 20.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.610" (15.50mm) |
|
|
1433393CFIXED IND 33UH 9.3A 17 MOHM TH |
35 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±15% | 9.3 A | - | Unshielded | 17mOhm Max | 27 @ 50kHz | 9.1MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.610" (15.50mm) |
|
744114FIXED IND 127UH 2.3A 120 MOHM TH |
60 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 127 µH | ±20% | 2.3 A | 1A | Unshielded | 120mOhm Max | - | 4.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) | - |
|
744105FIXED IND 258UH 1.2A 400 MOHM TH |
48 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 258 µH | ±20% | 1.2 A | 600mA | Unshielded | 400mOhm Max | - | 3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
|
1532DFIXED IND 39UH 600MA 650 MOHM TH |
80 |
|
Datasheet |
1532 | Axial | Bulk | Active | Wirewound | - | 39 µH | ±10% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.5MHz | 200kHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
