Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447211103FIXED IND 10MH 210MA 10.7 OHM TH |
38 |
|
Datasheet |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 10 mH | ±5% | 210 mA | 300mA | Unshielded | 10.7Ohm Max | - | 260kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
EST1060T330MDGAFIXED IND 33UH 2.4A 73 MOHM SMD |
500 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.4 A | 2.4A | Shielded | 73mOhm Max | - | 9.6MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
IHLP4040EDER3R3M5AFIXED IND 3.3UH 14.8A 7.94 MOHM |
100 |
|
Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 14.8 A | 14.3A | Shielded | 7.94mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
MWSA1204S-1R5MTFIXED IND 1.5UH 20A 9.5MOHM SMD |
84 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 20 A | 30.5A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.504" W (13.45mm x 12.80mm) | 0.157" (4.00mm) |
|
60A103CFIXED IND 10.2UH 12A 7 MOHM SMD |
31 |
|
Datasheet |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10.2 µH | ±10% | 12 A | 17A | Unshielded | 7mOhm Max | - | 21MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
DRA74-221-RFIXED IND 220UH 544MA 960MOHM SM |
318 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 544 mA | 626mA | Shielded | 960mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
744743102FIXED IND 1MH 420MA 2.5 OHM TH |
79 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 420 mA | 550mA | Unshielded | 2.5Ohm Max | - | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
HCMA1104-3R3-RFIXED IND 3.3UH 10A 11.8MOHM SMD |
850 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 10 A | 16A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
|
7687480681WE-TI HV RADIAL LEADED WIRE WOUN |
88 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 780 mA | 1.1A | Unshielded | 790mOhm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7447221102FIXED IND 1MH 750MA 980 MOHM TH |
81 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 750 mA | 900mA | Unshielded | 980mOhm Max | - | 1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7687480152WE-TI HV RADIAL LEADED WIRE WOUN |
74 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±5% | 550 mA | 750mA | Unshielded | 1.8Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7447221101FIXED IND 100UH 2.45A 100MOHM TH |
70 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.45 A | 2.75A | Unshielded | 100mOhm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7447221103FIXED IND 10MH 230MA 9.7 OHM TH |
70 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 230 mA | 290mA | Unshielded | 9.7Ohm Max | - | 260kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7447221682FIXED IND 6.8MH 280MA 6.6 OHM TH |
65 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 280 mA | 350mA | Unshielded | 6.6Ohm Max | - | 330kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7447221472FIXED IND 4.7MH 340MA 4.6 OHM TH |
60 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 340 mA | 420mA | Unshielded | 4.6Ohm Max | - | 410kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7447221471FIXED IND 470UH 1.1A 460 MOHM TH |
51 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.1 A | 1.3A | Unshielded | 460mOhm Max | - | 1.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
|
7687480472WE-TI HV RADIAL LEADED WIRE WOUN |
49 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 300 mA | 420mA | Unshielded | 5.8Ohm Max | - | 630kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7687480471WE-TI HV RADIAL LEADED WIRE WOUN |
37 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 1 A | 1.3A | Unshielded | 540mOhm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7687480222WE-TI HV RADIAL LEADED WIRE WOUN |
31 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 2.2 mH | ±5% | 500 mA | 580mA | Unshielded | 2.5Ohm Max | - | 820kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

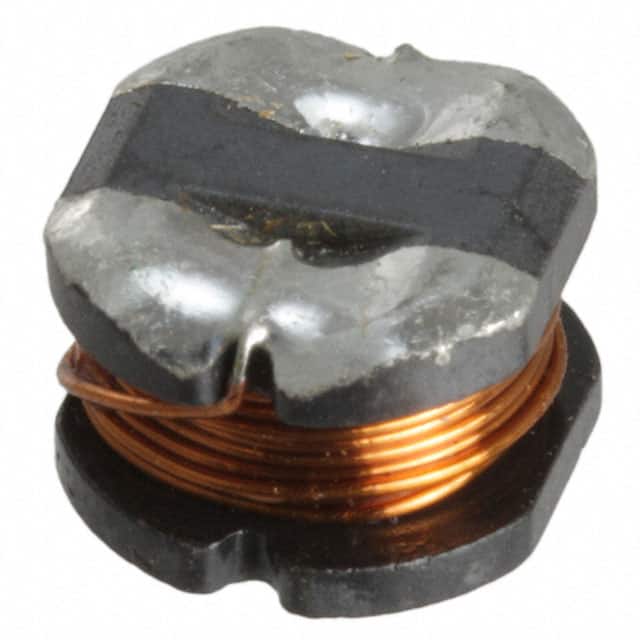

LD2-101-RFIXED IND 100UH 1.53A 430MOHM SM |
1,095 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.53 A | 1.15A | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
