Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

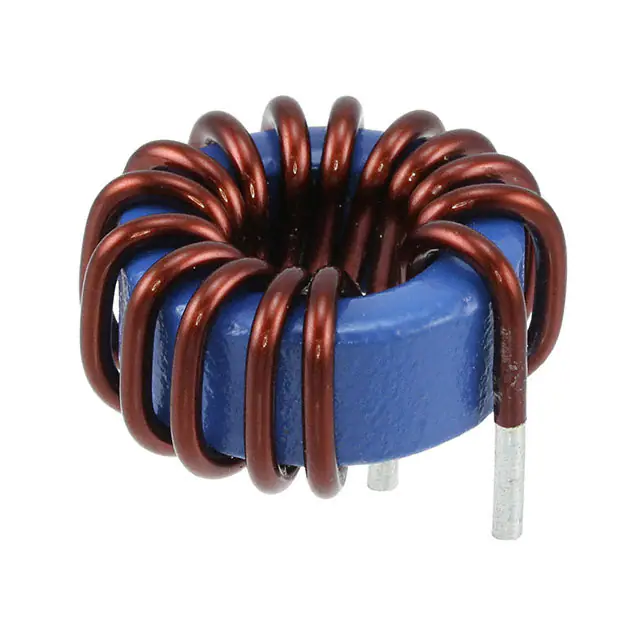

S14100033FIXED IND 15UH 15A 5 MOHM TH |
48 |
|
Datasheet |
WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 15 µH | ±20% | 15 A | - | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.630" (16.00mm) |
|
AMDLA1707S-100MTFIXED IND 10UH 21A 10.6MOHM SMD |
42 |
|
Datasheet |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 21 A | 22A | Shielded | 10.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
7447798250FIXED IND 2.5UH 13.7A 4.95 MOHM |
93 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±30% | 13.7 A | 10.1A | Shielded | 4.95mOhm Max | - | 57MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
TCK-110FIXED IND 3.3UH 2A 70 MOHM SMD |
59 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 3.3 µH | ±20% | 2 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
DLH-22-0001FIXED IND 5MH 450MA 2.6 OHM TH |
89 |
|
Datasheet |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | 5 mH | ±15% | 450 mA | - | Shielded | 2.6Ohm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | 0.945" (24.00mm) |
|
|
TCK-063FIXED IND 27UH 970MA 200MOHM SMD |
73 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 27 µH | ±20% | 970 mA | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.199" (5.05mm) |
|
IHLP8787MZER220M5AIHLP-8787MZ-5A 22 20% ER E3 |
46 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 17.5 A | 16A | Shielded | 10.8mOhm Max | - | 3.88MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
AIRD-02-151KFIXED IND 150UH 4A 98 MOHM TH |
66 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | 8.6A | Unshielded | 98mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
IHLP6767DZER1R5M11FIXED IND 1.5UH 31A 3.43MOHM SMD |
55 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 31 A | 21A | Shielded | 3.43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
.jpg)
|
AIRD-06-101KFIXED IND 100UH 4A 80 MOHM TH |
78 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | 10.4A | Unshielded | 80mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
2216-H-RCFIXED IND 220UH 3.6A 83 MOHM TH |
58 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 3.6 A | - | Shielded | 83mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
DRA124-331-RFIXED IND 330UH 690MA 892MOHM SM |
55 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 690 mA | 1.092A | Shielded | 892mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
IHD1EB6R8LFIXED IND 6.8UH 3.1A 26 MOHM TH |
73 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±15% | 3.1 A | 2.7A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
2200HT-220-V-RCFIXED IND 22UH 9.3A 20 MOHM TH |
97 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 9.3 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-8R2-V-RCFIXED IND 8.2UH 15.1A 8 MOHM TH |
88 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 8.2 µH | ±15% | 15.1 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-330-V-RCFIXED IND 33UH 8.4A 25 MOHM TH |
87 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 8.4 A | - | Shielded | 25mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-681-V-RCFIXED IND 680UH 2.6A 270 MOHM TH |
68 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 680 µH | ±15% | 2.6 A | - | Shielded | 270mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-151-V-RCFIXED IND 150UH 4.8A 75 MOHM TH |
57 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 4.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
.jpg)
|
IHLP7575GZER3R3M5AFIXED IND 3.3UH 36A 3.34 MOHM HI |
79 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 36 A | 41A | Shielded | 3.34mOhm Max | - | 12.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
|
2100HT-180-H-RCFIXED IND 18UH 8.6A 16 MOHM TH |
84 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 18 µH | ±15% | 8.6 A | - | Shielded | 16mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
