Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1415604CFIXED IND 15MH 400MA 5.5 OHM TH |
40 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 mH | ±10% | 400 mA | - | Unshielded | 5.5Ohm Max | 61 @ 10kHz | 200kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.787" (20.00mm) |
|
|
1433433CFIXED IND 330UH 3.3A 120MOHM TH |
40 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 3.3 A | - | Unshielded | 120mOhm Max | 29 @ 50kHz | 2MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.787" (20.00mm) |
|
|
1433510CFIXED IND 3.3MH 1A 1.992 OHM TH |
36 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±10% | 1 A | - | Unshielded | 1.992Ohm Max | 20 @ 50kHz | 700kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.787" (20.00mm) |
|
|
1415449CFIXED IND 150UH 4.9A 55 MOHM TH |
27 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 150 µH | ±10% | 4.9 A | - | Unshielded | 55mOhm Max | 34 @ 50kHz | 2.9MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.787" (20.00mm) |
|

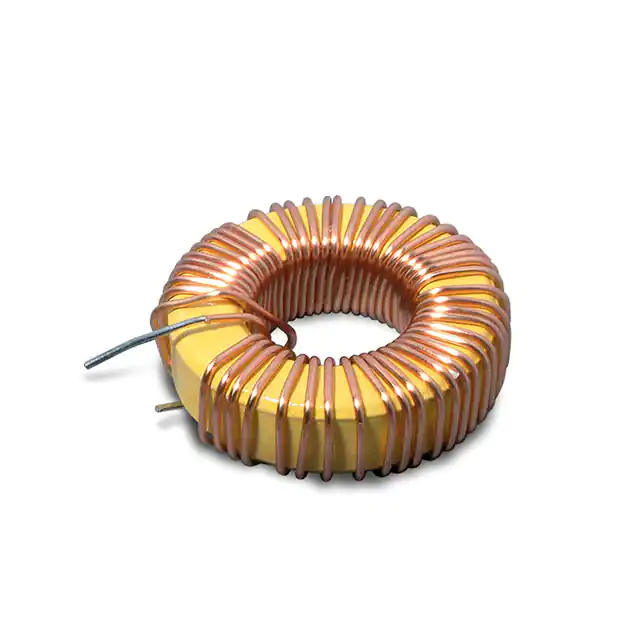

744151FIXED IND 48UH 8.1A 25 MOHM TH |
95 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 48 µH | ±20% | 8.1 A | 3A | Shielded | 25mOhm Max | - | 13.6MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.472" W (30.00mm x 12.00mm) | - |
|
744373965068FIXED IND 6.8UH 9.5A 0.0116OHM |
84 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 9.5 A | 28.9A | Shielded | 11.6mOhm Max | - | 11.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
DRA124-150-RFIXED IND 15UH 3.1A 44 MOHM SMD |
974 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.1 A | 5.31A | Shielded | 44mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
FIT44-1FIXED IND 18.85UH 2.8A 44.8 MOHM |
87 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 18.85 µH | - | 2.8 A | - | Unshielded | 44.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
2120-H-RCFIXED IND 470UH 1.6A 280 MOHM TH |
95 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 1.6 A | - | Unshielded | 280mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
ETQ-P4LR68XFCFIXED IND 680NH 21A 1.58MOHM SMD |
89 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 21 A | - | Shielded | 1.58mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
DRA127-2R2-RFIXED IND 2.2UH 12.52A 4MOHM SMD |
200 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 12.52 A | 25.5A | Shielded | 4mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
1536ZFIXED IND 1MH 1A 550 MOHM TH |
80 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1 mH | ±20% | 1 A | - | Unshielded | 550mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.030" L (12.70mm x 26.16mm) | - |
|

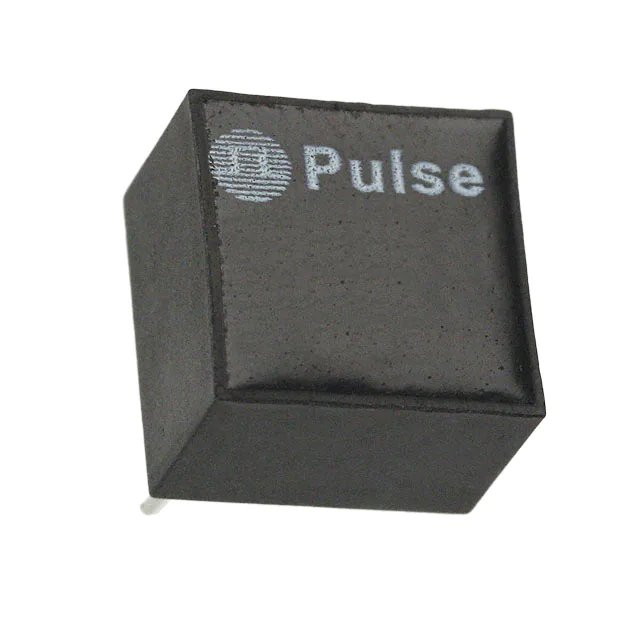

PE-53822NLFIXED IND 54UH 1A 200 MOHM TH |
84 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
7441501FIXED IND 12UH 14.5A 8 MOHM TH |
60 |
|
Datasheet |
WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±20% | 14.5 A | 6.9A | Unshielded | 8mOhm Max | - | 44.6MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|
1210R-683JFIXED IND 68UH 144MA 9 OHM SMD |
45 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±5% | 144 mA | - | Unshielded | 9Ohm Max | 30 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
PM2110-821K-RCFIXED IND 820UH 2A 221 MOHM SMD |
74 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 820 µH | ±10% | 2 A | - | Unshielded | 221mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
PM2110-391K-RCFIXED IND 390UH 3.1A 98 MOHM SMD |
63 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 390 µH | ±10% | 3.1 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
PM2110-120K-RCFIXED IND 12UH 11.3A 7 MOHM SMD |
46 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 12 µH | ±10% | 11.3 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|
HCV1206-2R0-RFIXED IND 2UH 12A 6 MOHM SMD |
72 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±10% | 12 A | 16A | Unshielded | 6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
|
DRA127-331-RFIXED IND 330UH 1.011A 612 MOHM |
58 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.011 A | 1.93A | Shielded | 612mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
