Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60A273CFIXED IND 27UH 7.5A 15 MOHM SMD |
38 |
|
Datasheet |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±10% | 7.5 A | 10A | Unshielded | 15mOhm Max | - | 13MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
CLF12555T-4R7N-HFIXED IND 4.7UH 5.3A 11.7MOHM SM |
511 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.3 A | 9.6A | Shielded | 11.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.217" (5.50mm) |
|
B82477P4153M000FIXED IND 15UH 4.8A 28.5MOHM SMD |
350 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.8 A | 5.2A | Shielded | 28.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

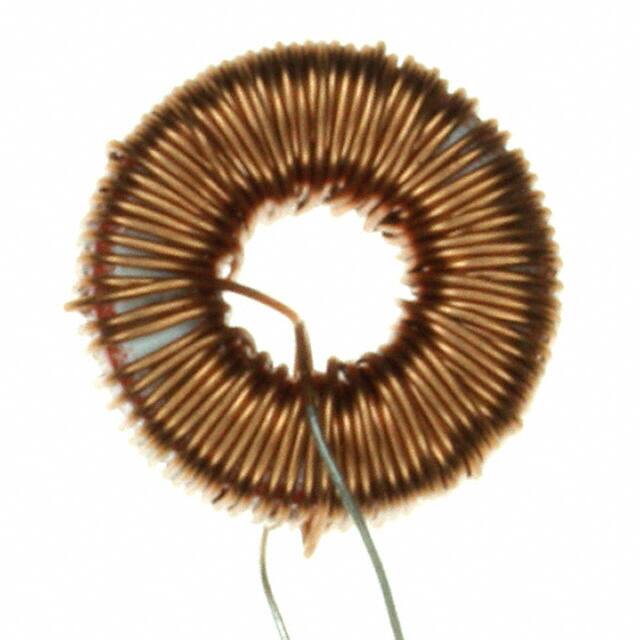

7447037FIXED IND 360UH 400MA 450MOHM TH |
85 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 360 µH | ±20% | 400 mA | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.531" Dia x 0.236" W (13.50mm x 6.00mm) | - |
|
15472CFIXED IND 4.7UH 11.7A 6.48 MOHM |
33 |
|
Datasheet |
1500 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 11.7 A | - | Unshielded | 6.48mOhm Max | 131 @ 1MHz | 60MHz | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.661" Dia (16.80mm) | 0.839" (21.30mm) |
|
|
15682CFIXED IND 6.8UH 10.2A 8.04 MOHM |
27 |
|
Datasheet |
1500 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 10.2 A | - | Unshielded | 8.04mOhm Max | 133 @ 1MHz | 46MHz | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.661" Dia (16.80mm) | 0.839" (21.30mm) |
|
HCMA1305-1R5-RFIXED IND 1.5UH 23A 3.16MOHM SMD |
402 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 23 A | 48A | Shielded | 3.16mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
32101CFIXED IND 100UH 1.4A 77 MOHM TH |
65 |
|
Datasheet |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 1.4 A | - | Unshielded | 77mOhm Max | 3.5 @ 800kHz | 5.3MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|
|
32221CFIXED IND 220UH 960MA 141MOHM TH |
55 |
|
Datasheet |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 220 µH | ±15% | 960 mA | - | Unshielded | 141mOhm Max | 3.3 @ 800kHz | 2.8MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|
|
32470CFIXED IND 47UH 2.1A 42 MOHM TH |
49 |
|
Datasheet |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 47 µH | ±15% | 2.1 A | - | Unshielded | 42mOhm Max | 3.1 @ 1MHz | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|
|
32102CFIXED IND 1MH 450MA 568 MOHM TH |
44 |
|
Datasheet |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 450 mA | - | Unshielded | 568mOhm Max | 1.2 @ 800kHz | 1MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|
|
B82477P4105M000FIXED IND 1MH 600MA 1.38 OHM SMD |
435 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 600 mA | 650mA | Shielded | 1.38Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
SRP6030CA-4R5MFIXED IND 4.5UH 7A 25.3 MOHM SMD |
1,003 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.5 µH | ±20% | 7 A | 10A | Shielded | 25.3mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
HCMA1305-220-RFIXED IND 22UH 6.2A 51.8MOHM SMD |
699 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 6.2 A | 10A | Shielded | 51.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1104V2-220-RFIXED IND 22UH 3.8A 65 MOHM SMD |
1,080 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 3.8 A | 4.6A | Shielded | 65mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP6050CA-1R5MFIXED IND 1.5UH 17A 6.3 MOHM SMD |
834 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 17 A | 19.5A | Shielded | 6.3mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
SPM6530T-1R5M-HZFIXED IND 1.5UH 11.6A 10.67 MOHM |
82 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 11.6 A | 7A | Shielded | 10.67mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
7447231472FIXED IND 4.7MH 360MA 4 OHM TH |
60 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 360 mA | 470mA | Unshielded | 4Ohm Max | - | 480kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744750230068FIXED IND 6.8UH 5.7A 16 MOHM TH |
39 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.7 A | 8.1A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
|
B82477P4334M000FIXED IND 330UH 1.02A 460MOHM SM |
424 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.02 A | 1.15A | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
