Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447713033FIXED IND 3.3UH 4.6A 24 MOHM SMD |
52 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.6 A | 7.2A | Shielded | 24mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
CLF12555T-220M-DFIXED IND 22UH 2.8A 51.6MOHM SMD |
80 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 4.8A | Shielded | 51.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
FP0705R1-R10-RFIXED IND 105NH 43A 0.25MOHM SMD |
950 |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 43 A | 44A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
IHLP5050EZER7R8M01FIXED IND 7.8UH 10A 20.5MOHM SMD |
50 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 7.8 µH | ±20% | 10 A | 18A | Shielded | 20.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
IHLP5050EZER100M5AFIXED IND 10UH 10.1A 20.1MOHM SM |
26 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10.1 A | 9A | Shielded | 20.1mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
744750530100FIXED IND 10UH 8.9A 9.5 MOHM TH |
80 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 8.9 A | 12.4A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.433" (11.00mm) |
|
1536LFIXED IND 4UH 8A 12 MOHM TH |
65 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm | - | 24.3MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
1536PFIXED IND 40UH 3A 82 MOHM TH |
63 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm | - | 10.4MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
|
744750530068FIXED IND 6.8UH 10.7A 6.5MOHM TH |
49 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 10.7 A | 15A | Shielded | 6.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.433" (11.00mm) |
|
744777182FIXED IND 82UH 840MA 430MOHM SMD |
55 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 840 mA | 900mA | Shielded | 430mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744731102FIXED IND 1MH 350MA 2.3 OHM TH |
100 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 350 mA | 250mA | Shielded | 2.3Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
744731222FIXED IND 2.2MH 200MA 4.6 OHM TH |
81 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 200 mA | 180mA | Shielded | 4.6Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

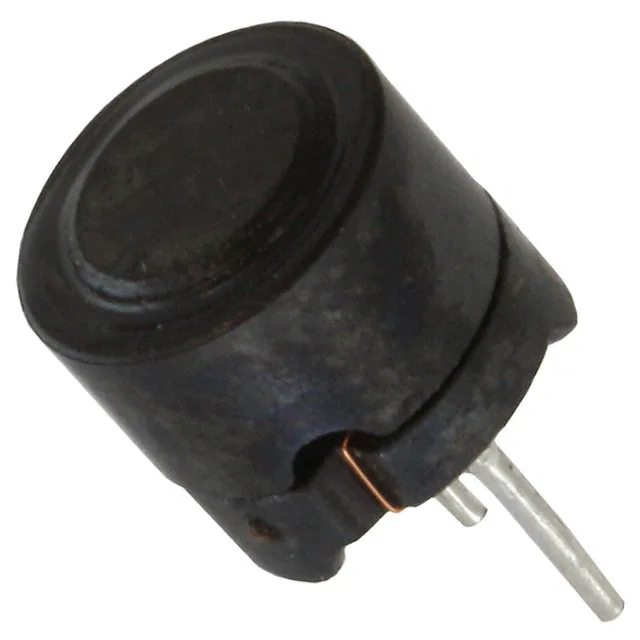

744731472FIXED IND 4.7MH 160MA 11.4OHM TH |
80 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 160 mA | 140mA | Shielded | 11.4Ohm Max | - | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
IHLP5050EZER3R3M5AFIXED IND 3.3UH 16A 7.7 MOHM SMD |
78 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 16 A | 18A | Shielded | 7.7mOhm Max | - | 17.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
744731562FIXED IND 5.6MH 130MA 15.7OHM TH |
71 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 130 mA | 70mA | Shielded | 15.7Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744731331FIXED IND 330UH 650MA 830MOHM TH |
70 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 650 mA | 450mA | Shielded | 830mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
VLBU9664100LT-R15LFIXED IND 150NH 75A 0.138MOHM SM |
86 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 75 A | - | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|

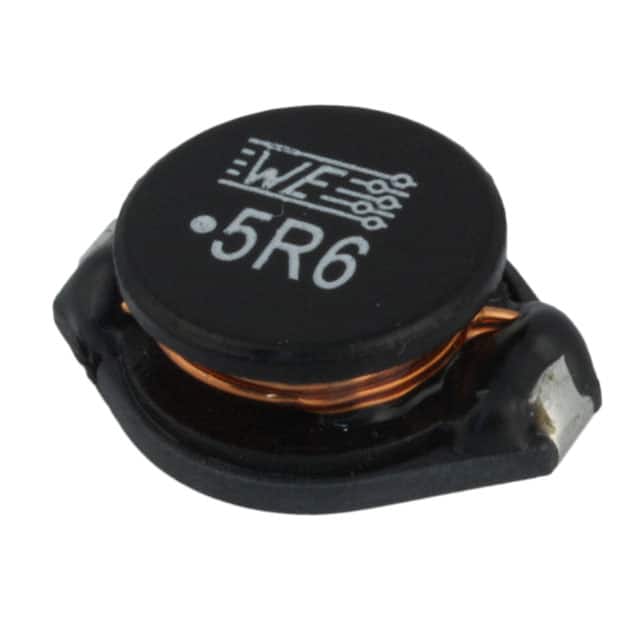

74458005FIXED IND 5.6UH 5.3A 20 MOHM SMD |
68 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 5.3 A | 13.1A | Unshielded | 20mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
IHLP5050FDER3R3M51FIXED IND 3.3UH 20.2A 5.44 MOHM |
300 |
|
Datasheet |
IHLP-5050FD-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 20.2 A | 16.7A | Shielded | 5.44mOhm Max | - | 17.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
SLF12575T-471MR80-HFIXED IND 470UH 800MA 720MOHM SM |
99 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 800mA | Shielded | 720mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
