Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1837368161GCAP FILM 0.068UF 1% 160VDC RAD |
922 |
|
Datasheet |
Radial | 0.068 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
MKP1839310631CAP FILM 10000PF 1% 630VDC AXIAL |
721 |
|
Datasheet |
Axial | 10000 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.217" Dia x 0.551" L (5.50mm x 14.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

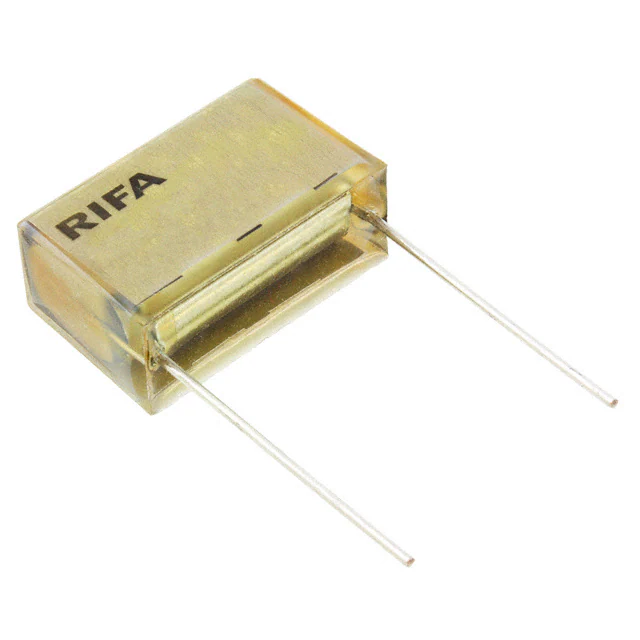

PME271MD6100MR30CAP FILM 0.1UF 20% 630VDC RADIAL |
147 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME261JC6100KR30CAP FILM 0.1UF 10% 1KVDC RADIAL |
234 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
C4AQSBU4100A1WJCAP FILM 1UF 5% 1.5KVDC RADIAL |
912 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
474MPW400KCAP FILM 0.47UF 10% 400VDC AXIAL |
382 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 376 mOhms | -55°C ~ 105°C | Through Hole | 0.551" Dia x 1.142" L (14.00mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
MKP1O132206B00KSSDCAP FILM 0.22UF 10% 1KVDC RAD |
3,375 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
PME271YD6100MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
450 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
 Series Straight 18x12.jpg)
|
ECW-F2W225JACAP FILM 2.2UF 5% 450VDC RADIAL |
1,984 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.504" W (18.80mm x 12.80mm) | 0.764" (19.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R523R422050P0KCAP FILM 2.2UF 10% 630VDC RADIAL |
584 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200, X2 | - |
|
B32654A1104K000CAP FILM 0.1UF 10% 1.6KVDC RAD |
5,729 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

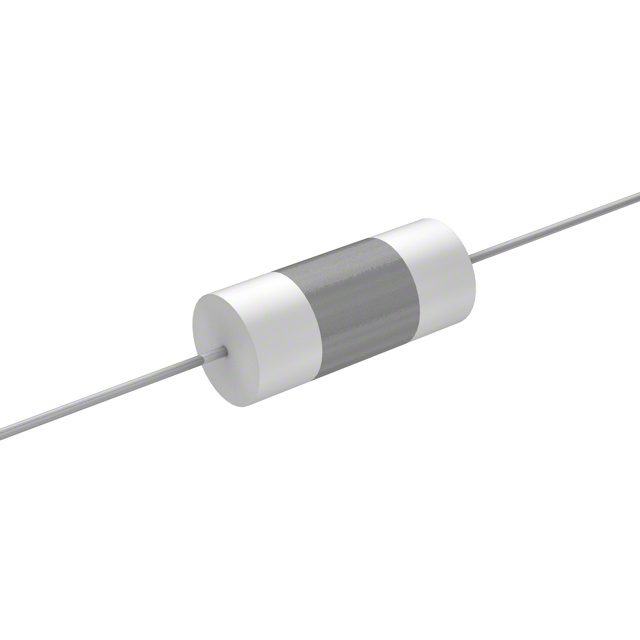

150223J630DBCAP FILM 0.022UF 5% 630VDC AXIAL |
191 |
|
Datasheet |
Axial | 0.022 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276" Dia x 0.650" L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
B32654A6105J000CAP FILM 1UF 5% 630VDC RADIAL |
6,511 |
|
Datasheet |
Radial | 1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
LDECD3470JA5N00CAP FILM 0.47UF 5% 50VDC 2220 |
5,846 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R76QR3150SE30JCAP FILM 0.15UF 5% 1KVDC RAD |
3,336 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1J034706B00KSSDCAP FILM 0.47UF 10% 630VDC RAD |
3,425 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
PHE840MY7100MD16R06L2CAP FILM 1UF 20% 760VDC RADIAL |
1,640 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1839310254CAP FILM 10000PF 5% 250VDC AXIAL |
109 |
|
Datasheet |
Axial | 10000 pF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
715P47356LA3CAP FILM 0.047UF 5% 600VDC RAD |
2,085 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

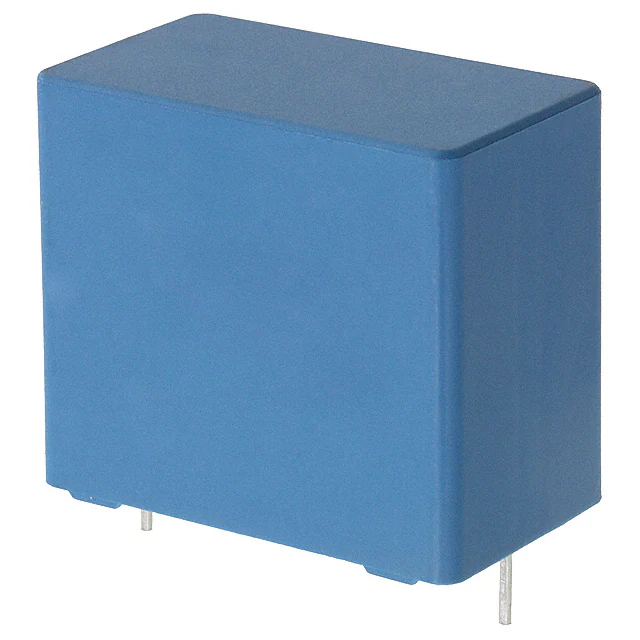

B32924C3335M000CAP FILM 3.3UF 20% 630VDC RADIAL |
3,984 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
