Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H16822JVCAP FILM 8200PF 5% 1.6KVDC RAD |
2,886 |
|
Datasheet |
Radial | 8200 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.295" W (23.00mm x 7.50mm) | 0.689" (17.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

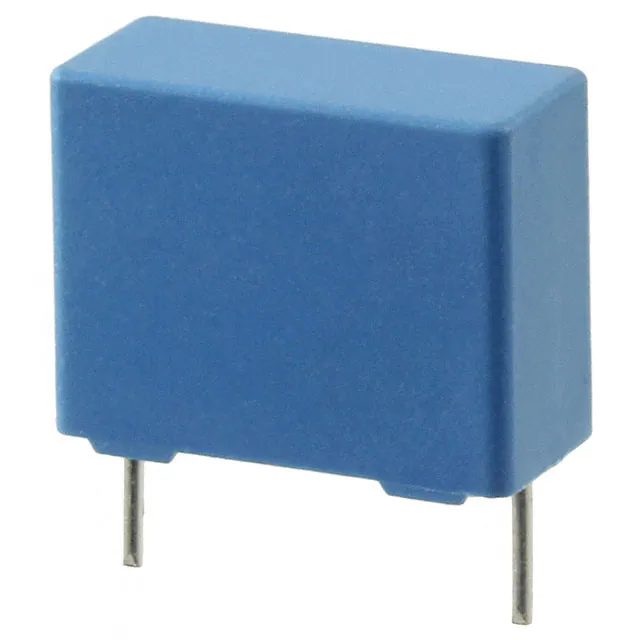

B32642B6683JCAP FILM 0.068UF 5% 630VDC RAD |
2,602 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
FKP2C023301L00HSSDCAP FILM 0.033UF 2.5% 63VDC RAD |
2,401 |
|
Datasheet |
Radial | 0.033 µF | ±2.5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890334026027CSCAP FILM 1UF 10% 310VAC RADIAL |
1,037 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-H16472JVCAP FILM 4700PF 5% 1.6KVDC RAD |
500 |
|
Datasheet |
Radial | 4700 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.256" W (23.00mm x 6.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
104MPR250KCAP FILM 0.1UF 10% 250VDC RADIAL |
500 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 1.768 Ohms | -55°C ~ 105°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering | - | Low ESR |
|
B32923C3105M000CAP FILM 1UF 20% 630VDC RADIAL |
18,863 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32923C3105K000CAP FILM 1UF 10% 630VDC RADIAL |
9,523 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME271Y422MR30CAP FILM 2200PF 20% 1KVDC RADIAL |
7,530 |
|
Datasheet |
Radial | 2200 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PFR5471J63J11L4BULKCAP FILM 470PF 5% 63VDC RADIAL |
6,403 |
|
Datasheet |
Radial | 470 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32520C0105J289CAP FILM 1UF 5% 63VDC RADIAL |
5,943 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECH-U1C823GX5CAP FILM 0.082UF 2% 16VDC 1210 |
5,923 |
|
Datasheet |
1210 (3225 Metric) | 0.082 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
104MWR400KCAP FILM 0.1UF 10% 400VDC AXIAL |
2,493 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.295" Dia x 0.748" L (7.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECQ-E2155JFCAP FILM 1.5UF 5% 250VDC RADIAL |
630 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.701" (17.80mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
MMK5225K63J06L4BULKCAP FILM 2.2UF 10% 63VDC RADIAL |
17,941 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32672L1333J000CAP FILM 0.033UF 5% 1.6KVDC RAD |
15,105 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
225MMR250KCAP FILM 2.2UF 10% 250VDC RADIAL |
13,851 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32522C1155K000CAP FILM 1.5UF 10% 100VDC RADIAL |
11,369 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32653A8222J000CAP FILM 2200PF 5% 2KVDC RADIAL |
10,968 |
|
Datasheet |
Radial | 2200 pF | ±5% | 1000V (1kV) | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B81123C1222M189CAP FILM 2200PF 20% 500VAC RAD |
9,672 |
|
Datasheet |
Radial | 2200 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
