Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

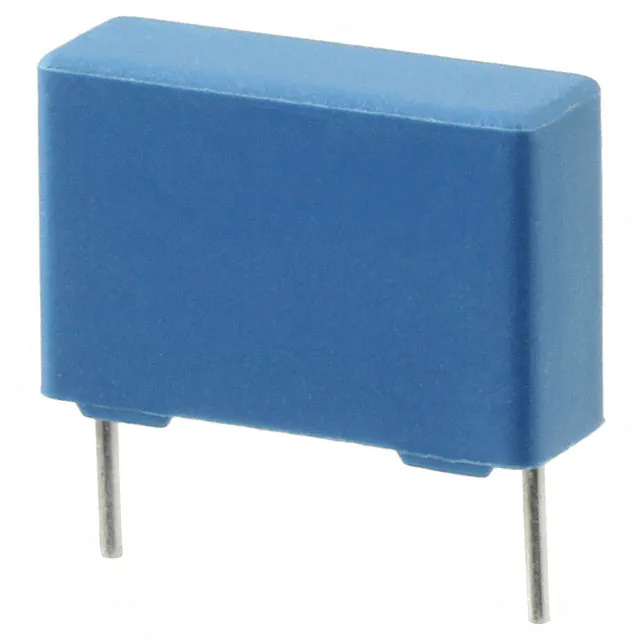

B32642B6473JCAP FILM 0.047UF 5% 630VDC RAD |
3,575 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKS2F033301K00JSSDCAP FILM 0.33UF 5% 250VDC RADIAL |
3,205 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
BFC236825104CAP FILM 0.1UF 10% 100VDC RADIAL |
2,287 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.512" (13.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
ECW-H16102JVCAP FILM 1000PF 5% 1.6KVDC RAD |
1,474 |
|
Datasheet |
Radial | 1000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16222JVCAP FILM 2200PF 5% 1.6KVDC RAD |
1,066 |
|
Datasheet |
Radial | 2200 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E4684KFCAP FILM 0.68UF 10% 400VDC RAD |
11,079 |
|
Datasheet |
Radial | 0.68 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R82EC4100Z370JCAP FILM 1UF 5% 100VDC RADIAL |
10,000 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32923C3105M289CAP FILM 1UF 20% 630VDC RADIAL |
5,301 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
F1778410M3F0W0CAP FILM 0.1UF 20% 630VDC RADIAL |
3,398 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
FKP1X004705A00JSSDCAP FILM 470PF 5% 4KVDC RADIAL |
2,573 |
|
Datasheet |
Radial | 470 pF | ±5% | 700V | 4000V (4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.197" W (26.50mm x 5.00mm) | 0.551" (14.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP0C004700B00JSSDCAP FILM 470PF 5% 63VDC RAD |
1,951 |
|
Datasheet |
Radial | 470 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF474KACAP FILM 0.47UF 10% 275VAC RAD |
1,356 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF684KCAP FILM 0.68UF 10% 275VAC RAD |
796 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76QF1100SE00JCAP FILM 1000PF 5% 1KVDC RADIAL |
709 |
|
Datasheet |
Radial | 1000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | - | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32022A3103M000CAP FILM 10000PF 20% 1.5KVDC RAD |
22,924 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32021A3103M289CAP FILM 10000PF 20% 1.5KVDC RAD |
19,635 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32652A0104K000CAP FILM 0.1UF 10% 1KVDC RADIAL |
17,980 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
ECQ-E2105JFCAP FILM 1UF 5% 250VDC RADIAL |
5,270 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.291" W (18.50mm x 7.40mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
223MPW630KCAP FILM 0.022UF 630VDC AXIAL |
4,610 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 8.038 Ohms | -55°C ~ 105°C | Through Hole | 0.335" Dia x 0.571" L (8.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
FKP0D002200B00JSSDCAP FILM 220PF 5% 100VDC RAD |
3,500 |
|
Datasheet |
Radial | 220 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
