Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32652A2472K000CAP FILM 4700PF 10% 2KVDC RADIAL |
5,320 |
|
Datasheet |
Radial | 4700 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|

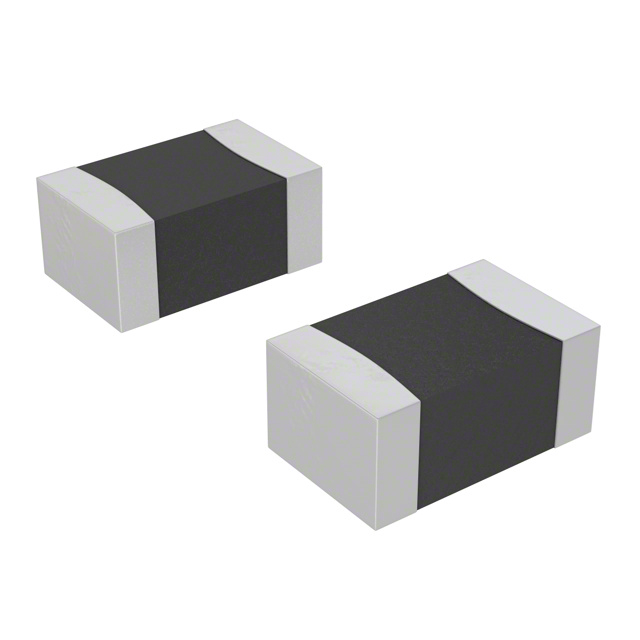

FCP0805C103J-J2CAP FILM 10000PF 5% 16VDC 0805 |
2,627 |
|
Datasheet |
0805 (2012 Metric) | 10000 pF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.051" (1.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
MKS2C041001F00KC00CAP FILM 1UF 10% 63VDC RADIAL |
1,115 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R46KI347050P1MCAP FILM 0.47UF 20% 560VDC RAD |
23,028 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32923X2105K000FILM CAP MKP X2 - COMPACT, 1UF 1 |
8,129 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS2C041001F00KI00CAP FILM 1UF 10% 63VDC RADIAL |
4,894 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

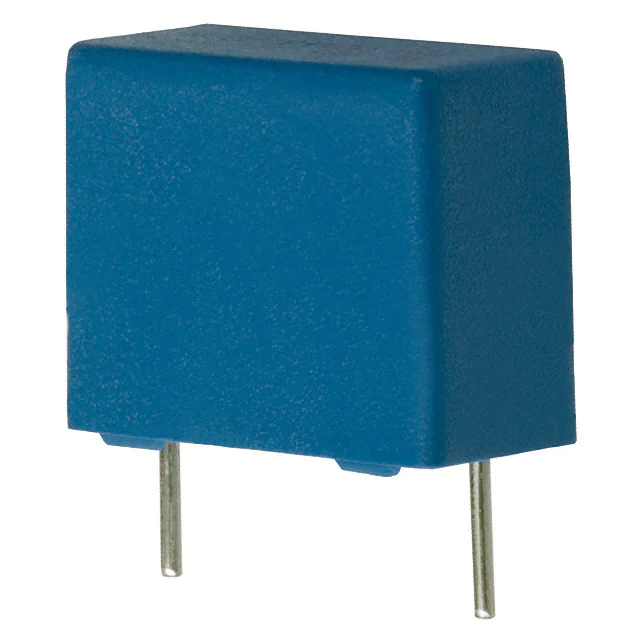

B32522N3105K000CAP FILM 1UF 10% 250VDC RADIAL |
4,624 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32652A3474J000CAP FILM 0.47UF 5% 250VDC RADIAL |
3,434 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
ECW-FD2W105J4CAP FILM 1UF 5% 450VDC RADIAL |
3,058 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN333040H1MCAP FILM 0.33UF 20% 560VDC RAD |
2,768 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32922C3474K026FILM CAP MKP X2 0.47UF 10% 305VA |
1,846 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins - Long Leads | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32672L8153J000CAP FILM 0.015UF 5% 2KVDC RADIAL |
14,930 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC237351104CAP FILM 0.1UF 10% 400VDC RADIAL |
8,397 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
SMR5103J50J01L16.5CBULKCAP FILM 10000PF 5% 50VDC RADIAL |
4,293 |
|
Datasheet |
Radial | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
FKP1U003304C00JSSDCAP FILM 330PF 5% 2KVDC RAD |
2,739 |
|
Datasheet |
Radial | 330 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
FKP1U006804C00JSSDCAP FILM 680PF 5% 2KVDC RAD |
2,050 |
|
Datasheet |
Radial | 680 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

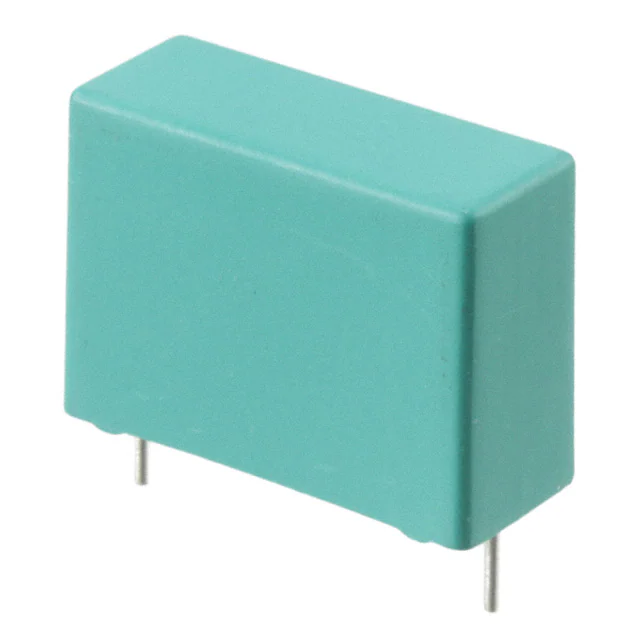

PHE850EB5330MB12R17CAP FILM .033UF 20% 1.25KVDC RAD |
1,600 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
.jpg)
|
ECH-U1C563GX5CAP FILM 0.056UF 2% 16VDC 1210 |
975 |
|
Datasheet |
1210 (3225 Metric) | 0.056 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
SMR5103J100J01L16.5CBULKCAP FILM 10000PF 5% 100VDC RAD |
797 |
|
Datasheet |
Radial | 10000 pF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|

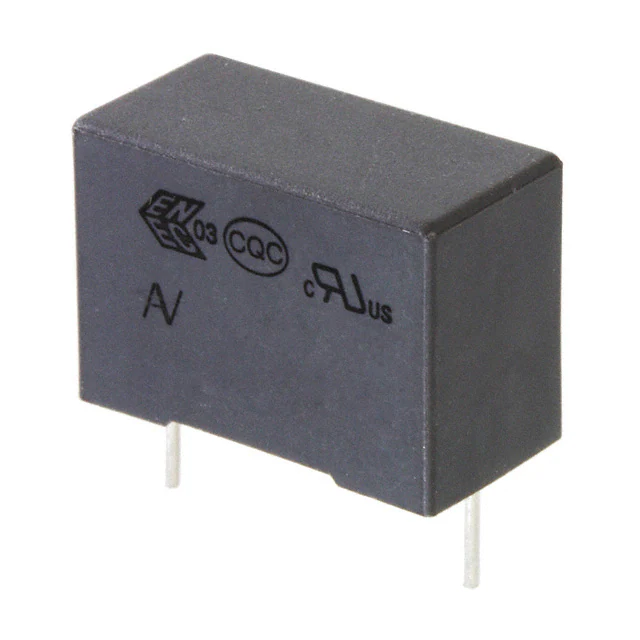

R46KI333000N1MCAP FILM 0.33UF 20% 560VDC RAD |
582 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
