BOM Upload
Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32022A3223M189CAP FILM 0.022UF 20% 1.5KVDC RAD |
25,123 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

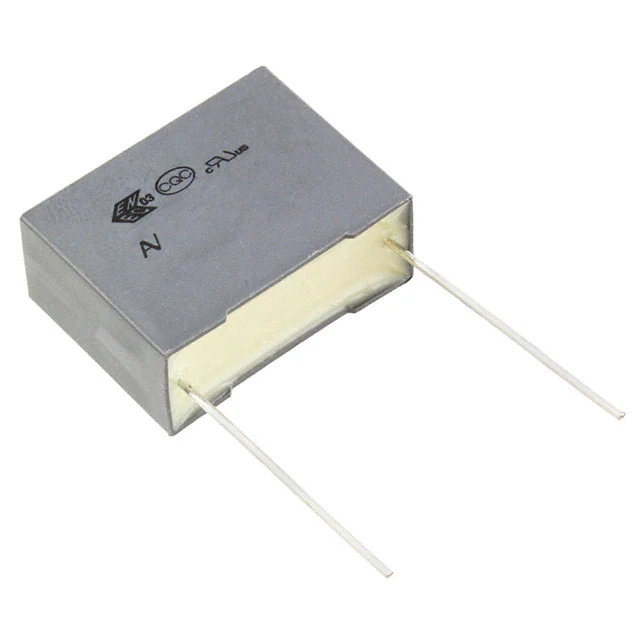

R46KN410050N1KCAP FILM 1UF 10% 560VDC RADIAL |
20,987 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KN410000N2MCAP FILM 1UF 20% 560VDC RADIAL |
16,103 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32922C3684M000CAP FILM 0.68UF 20% 630VDC RAD |
15,064 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HB6680JR06CAP FILM 0.68UF 5% 250VDC RADIAL |
7,400 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1H563JX9CAP FILM 0.056UF 5% 50VDC 1913 |
6,320 |
|
Datasheet |
1913 (4833 Metric) | 0.056 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
B32652A7333J000CAP FILM 0.033UF 5% 1.25KVDC RAD |
7,283 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
R46KI382040P0MCAP FILM 0.82UF 20% 560VDC RAD |
7,054 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
FKP2G004701D00HSSDCAP FILM 470PF 2.5% 400VDC RAD |
5,278 |
|
Datasheet |
Radial | 470 pF | ±2.5% | 220V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC233868101CAP FILM 4700PF 20% 1KVDC RADIAL |
4,384 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
PME271M422MR30CAP FILM 2200PF 20% 275VAC RAD |
3,731 |
|
Datasheet |
Radial | 2200 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X2 | - |
|
B32521C1105J000CAP FILM 1UF 5% 100VDC RADIAL |
2,720 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32652J1103J000CAP FILM 10000PF 5% 1.6KVDC RAD |
1,601 |
|
Datasheet |
Radial | 10000 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
ECQ-E4474KFCAP FILM 0.47UF 10% 400VDC RAD |
9,313 |
|
Datasheet |
Radial | 0.47 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.307" W (18.50mm x 7.80mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
BFC236845104CAP FILM 0.1UF 10% 250VDC RADIAL |
6,251 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.185" W (12.50mm x 4.70mm) | - | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
BFC237052102CAP FILM 1000PF 5% 400VDC RADIAL |
13,037 |
|
Datasheet |
Radial | 1000 pF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
ECW-FD2W155JCAP FILM 1.5UF 5% 450VDC RADIAL |
10,196 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.366" W (17.50mm x 9.30mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

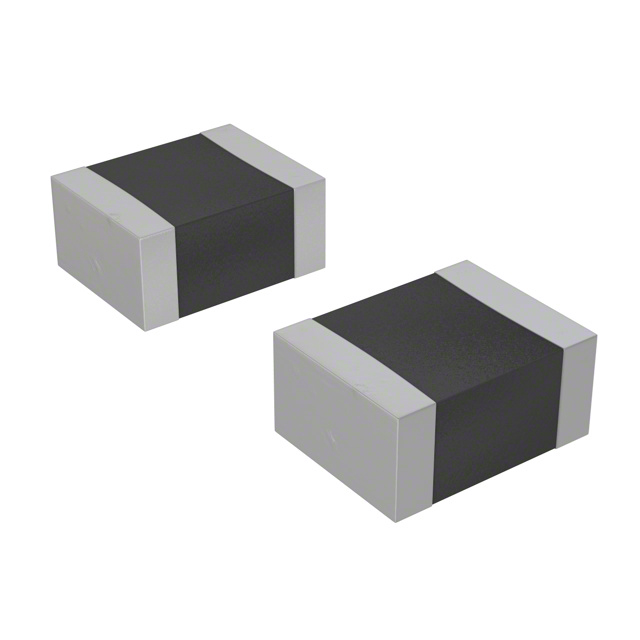

FCP1210H333J-G3CAP FILM 0.033UF 5% 50VDC 1210 |
4,220 |
|
Datasheet |
1210 (3225 Metric) | 0.033 µF | ±5% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
B32642B0333JCAP FILM 0.033UF 5% 1KVDC RADIAL |
2,881 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
PHE840MX6220MB06R17CAP FILM 0.22UF 20% 760VDC RAD |
15 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
