Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32021A3472K289CAP FILM 4700PF 10% 1.5KVDC RAD |
29,278 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
334MKP275KECAP FILM 0.33UF 10% 310VAC RAD |
18,658 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.524" (13.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE840EB6100KB05R17CAP FILM 0.1UF 10% 760VDC RADIAL |
16,540 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

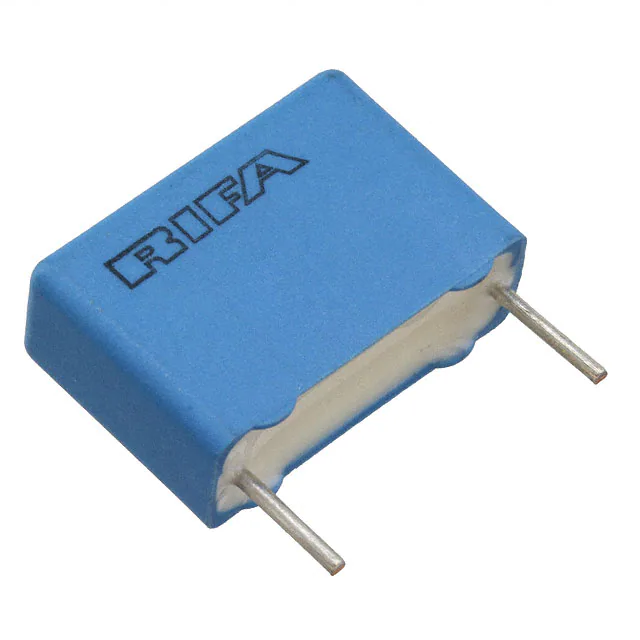

PHE450XB4220JB10R17CAP FILM 2200PF 5% 3KVDC RADIAL |
12,410 |
|
Datasheet |
Radial | 2200 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32521C3474K000CAP FILM 0.47UF 10% 250VDC RAD |
7,435 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R75QD0470Z330JCAP FILM 470PF 5% 1KVDC RADIAL |
6,451 |
|
Datasheet |
Radial | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R66ED3100CK7AJCAP FILM 0.1UF 5% 100VDC RADIAL |
3,416 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
|
B32621A6223J000CAP FILM 0.022UF 5% 630VDC RAD |
1,414 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MKP1O112203C00JSSDCAP FILM 2200PF 5% 1KVDC RAD |
7,536 |
|
Datasheet |
Radial | 2200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32529D0225J000CAP FILM 2.2UF 5% 63VDC RADIAL |
3,989 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W105JACAP FILM 1UF 5% 450VDC RADIAL |
1,824 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6393JFCAP FILM 0.039UF 5% 630VDC RAD |
1,161 |
|
Datasheet |
Radial | 0.039 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.567" (14.40mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
 Series Style D.jpg)
|
ECW-F2104HAQCAP FILM 0.1UF 3% 250VDC RADIAL |
1,154 |
|
Datasheet |
Radial | 0.1 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.614" (15.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
B32021A3682M289CAP FILM 6800PF 20% 1.5KVDC RAD |
98,969 |
|
Datasheet |
Radial | 6800 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32911A3103M000CAP FILM 10000PF 20% 760VDC RAD |
7,260 |
|
Datasheet |
Radial | 10000 pF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1U011003C00JSSDCAP FILM 1000PF 5% 2KVDC RAD |
4,289 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
FKP2D022201L00JSSDCAP FILM 0.022UF 5% 100VDC RAD |
1,645 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32652A7153J000CAP FILM 0.015UF 5% 1.25KVDC RAD |
11,167 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
ECQ-E4334KFCAP FILM 0.33UF 10% 400VDC RAD |
10,166 |
|
Datasheet |
Radial | 0.33 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32652A0223J189CAP FILM 0.022UF 5% 1KVDC RADIAL |
7,249 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
