Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

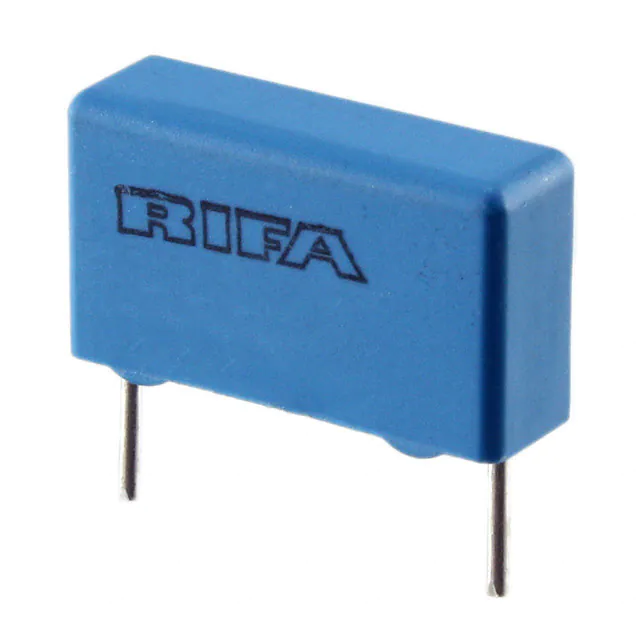

PHE450PB5100JR06CAP FILM 10000PF 5% 1KVDC RADIAL |
2,792 |
|
Datasheet |
Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
FKP2C022201J00HSSDCAP FILM 0.022UF 2.5% 63VDC RAD |
2,130 |
|
Datasheet |
Radial | 0.022 µF | ±2.5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32652A3504J000CAP FILM 0.5UF 5% 250VDC RADIAL |
1,838 |
|
Datasheet |
Radial | 0.5 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B81123C1222M026FILM CAP MKP Y1 2.2NF 20% 500VAC |
1,788 |
|
Datasheet |
Radial | 2200 pF | ±20% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins - Long Leads | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
|
MKS2D041001K00KSSDCAP FILM 1UF 10% 100VDC RADIAL |
6,795 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

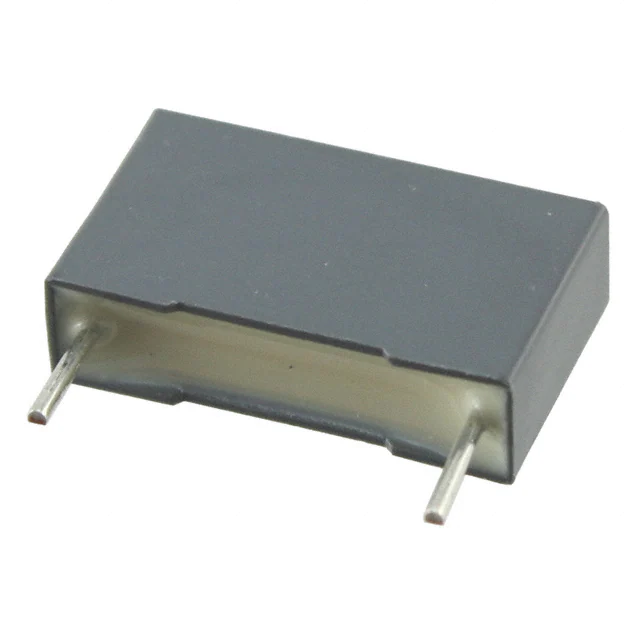

R73UI0470SE03JCAP FILM 470PF 5% 2KVDC RADIAL |
5,013 |
|
Datasheet |
Radial | 470 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKS2B033301A00JF00CAP FILM 0.33UF 5% 50VDC RADIAL |
4,699 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
BFC236855102CAP FILM 1000PF 10% 400VDC RAD |
4,686 |
|
Datasheet |
Radial | 1000 pF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.177" W (12.50mm x 4.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
ECQ-E2155KFCAP FILM 1.5UF 10% 250VDC RADIAL |
3,842 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.701" (17.80mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
B32672L6224J189CAP FILM 0.22UF 5% 630VDC RADIAL |
3,719 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
 Series Style D 6-W.jpg)
|
ECW-F2224JAQCAP FILM 0.22UF 5% 250VDC RADIAL |
1,456 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.248" W (13.00mm x 6.30mm) | 0.665" (16.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F242JCAP FILM 2400PF 5% 3KVDC RADIAL |
1,380 |
|
Datasheet |
Radial | 2400 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.240" W (25.80mm x 6.10mm) | 0.429" (10.90mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R463I33305002KCAP FILM 0.33UF 10% 630VDC RAD |
1,300 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E1824JFCAP FILM 0.82UF 5% 100VDC RADIAL |
1,178 |
|
Datasheet |
Radial | 0.82 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
 Series Straight 18x10.jpg)
|
ECW-FA2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
1,048 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.594" (15.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2395KBCAP FILM 3.9UF 10% 250VDC RADIAL |
507 |
|
Datasheet |
Radial | 3.9 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.425" W (20.80mm x 10.80mm) | 0.819" (20.80mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
BFC237022104CAP FILM 0.1UF 5% 100VDC RADIAL |
15,859 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
.jpg)
|
105MMR100KCAP FILM 1UF 10% 100VDC RADIAL |
11,808 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.276" W (12.50mm x 7.00mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECW-U1103JX5CAP FILM 10000PF 5% 100VDC 1210 |
7,493 |
|
Datasheet |
1210 (3225 Metric) | 10000 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
450MPK474JCAP FILM 0.47UF 5% 450VDC RADIAL |
4,058 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | - | - |
