Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMR5102J50J01L16.5CBULKCAP FILM 1000PF 5% 50VDC RADIAL |
3,013 |
|
Datasheet |
Radial | 1000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
PME271YA4100MR30CAP FILM 1000PF 20% 1KVDC RADIAL |
2,572 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
FKP0D001500B00JSSDCAP FILM 150PF 5% 100VDC RAD |
921 |
|
Datasheet |
Radial | 150 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KI333050N0KCAP FILM 0.33UF 10% 560VDC RAD |
24,022 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32912A3473M000CAP FILM 0.047UF 20% 760VDC RAD |
17,444 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
QXL2E104KTPTCAP FILM 0.1UF 10% 250VAC RADIAL |
8,633 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.252" W (18.50mm x 6.40mm) | 0.598" (15.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32520C0105J000CAP FILM 1UF 5% 63VDC RADIAL |
8,053 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC237011224CAP FILM 0.22UF 10% 63VDC RADIAL |
4,484 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R413N247050T0KCAP FILM 0.047UF 10% 1.5KVDC RAD |
4,341 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
MKS2B036801C00JSSDCAP FILM 0.68UF 5% 50VDC RADIAL |
3,664 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
103MPW630KCAP FILM 10000PF 630VDC AXIAL |
3,470 |
|
Datasheet |
Axial | 10000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.571" L (6.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
B81123C1102M189CAP FILM 1000PF 20% 500VAC RAD |
3,003 |
|
Datasheet |
Radial | 1000 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
|
PME271YA4150MR30CAP FILM 1500PF 20% 1KVDC RADIAL |
1,691 |
|
Datasheet |
Radial | 1500 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
ECQ-UAAF684MCAP FILM 0.68UF 20% 275VAC RAD |
471 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32521C3474K189CAP FILM 0.47UF 10% 250VDC RAD |
14,247 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32621A4473K189CAP FILM 0.047UF 10% 400VDC RAD |
13,356 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

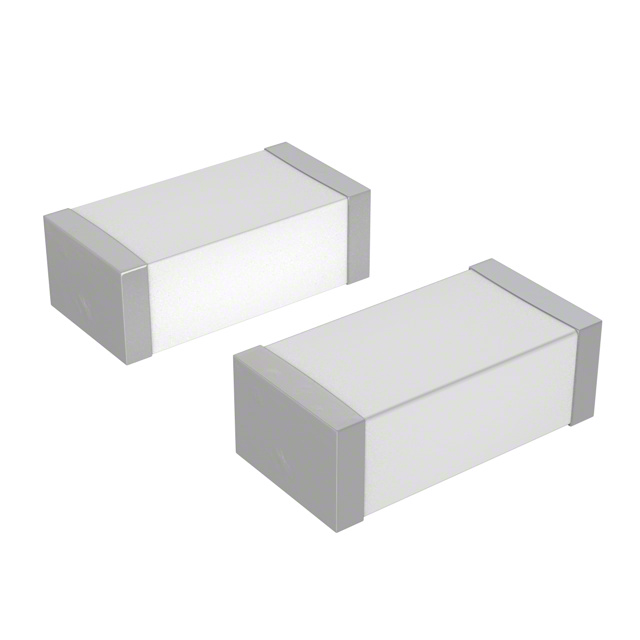

FCN1206A102J-H2CAP FILM 1000PF 5% 100VDC 1206 |
8,397 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32652A6224K000CAP FILM 0.22UF 10% 630VDC RAD |
2,871 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
|
B32522C1105K000CAP FILM 1UF 10% 100VDC RADIAL |
1,194 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MKS2C041001F00JA00CAP FILM 1UF 5% 63VDC RADIAL |
866 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
