Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H103JB5CAP FILM 10000PF 5% 50VDC 1206 |
8,331 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
B32652A1153J000CAP FILM 0.015UF 5% 1.6KVDC RAD |
7,147 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32923C3474M000CAP FILM 0.47UF 20% 630VDC RAD |
7,071 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32923C3684K000CAP FILM 0.68UF 10% 630VDC RAD |
6,711 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32620A6103K189CAP FILM 10000PF 10% 630VDC RAD |
5,775 |
|
Datasheet |
Radial | 10000 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
B32021A3472M289CAP FILM 4700PF 20% 300VAC RAD |
4,034 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
474MKP275KECAP FILM 0.47UF 10% 310VAC RAD |
3,920 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.563" (14.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2W105K4CAP FILM 1UF 10% 450VDC RADIAL |
3,870 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP3J011503D00JSSDCAP FILM 1500PF 5% 630VDC RAD |
3,752 |
|
Datasheet |
Radial | 1500 pF | ±5% | 300V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E4224KFCAP FILM 0.22UF 10% 400VDC RAD |
2,000 |
|
Datasheet |
Radial | 0.22 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R46KN322000M1KCAP FILM 0.22UF 10% 560VDC RAD |
8,323 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MKS2C036801E00JO00CAP FILM 0.68UF 5% 63VDC RADIAL |
4,618 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2C034701C00JO00CAP FILM 0.47UF 5% 63VDC RADIAL |
3,598 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32672P5224K000CAP FILM 0.22UF 10% 520VDC RAD |
1,709 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
B32021A3103M026FILM CAP Y2 MKP 10 NF 20% 300VAC |
7,178 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins - Long Leads | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
R82DC4100Z360JCAP FILM 1UF 5% 63VDC RADIAL |
7,062 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32621A4333J000CAP FILM 0.033UF 5% 400VDC RAD |
6,821 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MKP2G026801K00JSSDCAP FILM 0.068UF 5% 400VDC RAD |
3,185 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
B32672L7473J000CAP FILM 0.047UF 5% 1.3KVDC RAD |
1,807 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 500V | 1300V (1.3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

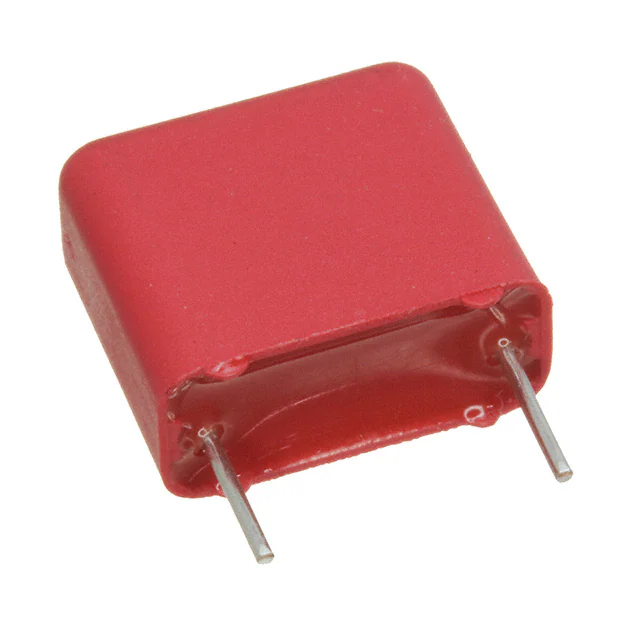

MKP1D031003G00JSSDCAP FILM 0.1UF 5% 100VDC RAD |
1,186 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
