Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F861BG254M310ZCAP FILM 0.25UF 20% 630VDC RAD |
3,322 |
|
Datasheet |
Radial | 0.25 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426DJ6150JR05CAP FILM 0.15UF 5% 100VDC RADIAL |
1,609 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP3G012203D00JSSDCAP FILM 2200PF 5% 400VDC RAD |
6,550 |
|
Datasheet |
Radial | 2200 pF | ±5% | 250V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1C393GX5CAP FILM 0.039UF 2% 16VDC 1206 |
5,181 |
|
Datasheet |
1206 (3216 Metric) | 0.039 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
B32922C3333M000CAP FILM 0.033UF 20% 630VDC RAD |
4,270 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32522N6334K000CAP FILM 0.33UF 10% 450VDC RAD |
2,472 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 200V | 450V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W334JCAP FILM 0.33UF 5% 450VDC RADIAL |
1,867 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF104T1CAP FILM 0.1UF 10% 275VAC RAD |
1,648 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R474I247050A1KV057CAP FILM 0.047UF 10% 1KVDC RAD |
1,275 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

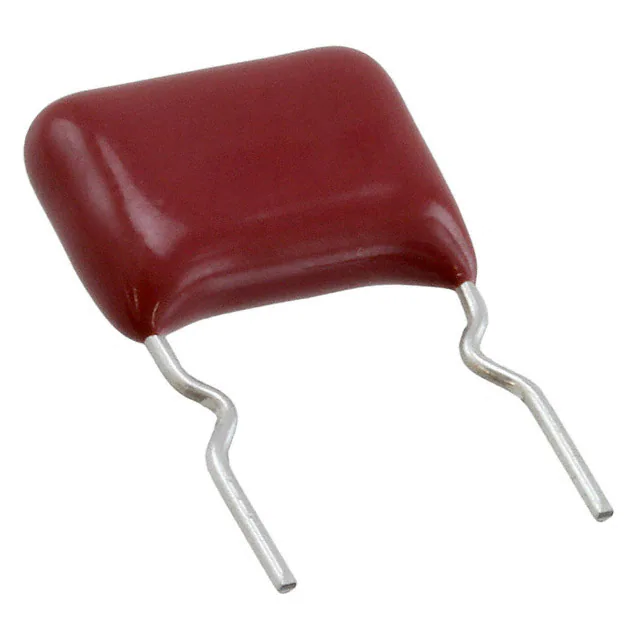

ECW-FD2J223KQCAP FILM 0.022UF 10% 630VDC RAD |
1,122 |
|
Datasheet |
Radial | 0.022 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.252" W (12.60mm x 6.40mm) | 0.370" (9.40mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC233920104CAP FILM 0.1UF 20% 630VDC RADIAL |
106,015 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
B32021A3102M189CAP FILM 1000PF 20% 1.5KVDC RAD |
58,648 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
B32021A3152M289CAP FILM 1500PF 20% 1.5KVDC RAD |
36,186 |
|
Datasheet |
Radial | 1500 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
B32652A0223K000CAP FILM 0.022UF 10% 1KVDC RAD |
24,310 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32529C0105J189CAP FILM 1UF 5% 63VDC RADIAL |
17,172 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
F339X132248MFP2B0CAP FILM 0.022UF 20% 1KVDC RAD |
16,296 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|

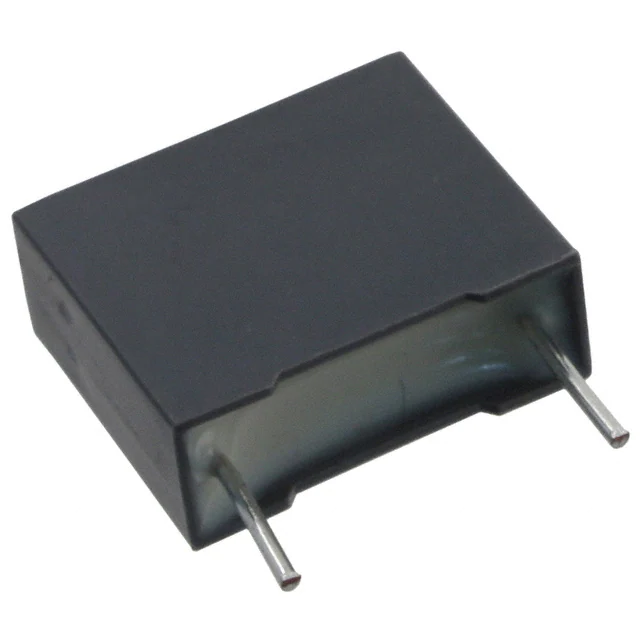

R46KF310000P1MCAP FILM 0.1UF 20% 560VDC RADIAL |
14,633 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
BFC237036103CAP FILM 10000PF 5% 250VDC RAD |
10,740 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
MKS2F032201H00KSSDCAP FILM 0.22UF 10% 250VDC RAD |
8,824 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
250MPH104JCAP FILM 0.1UF 5% 250VDC RADIAL |
5,392 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.413" L x 0.276" W (10.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | Low ESR |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
