Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP3O103302B00KSSDCAP FILM 330PF 10% 1KVDC RAD |
2,780 |
|
Datasheet |
Radial | 330 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6683KFCAP FILM 0.068UF 10% 630VDC RAD |
2,455 |
|
Datasheet |
Radial | 0.068 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.228" W (18.50mm x 5.80mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32021A3152M000CAP FILM 1500PF 20% 1.5KVDC RAD |
2,117 |
|
Datasheet |
Radial | 1500 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32620A4103J000CAP FILM 10000PF 5% 400VDC RAD |
2,039 |
|
Datasheet |
Radial | 10000 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|

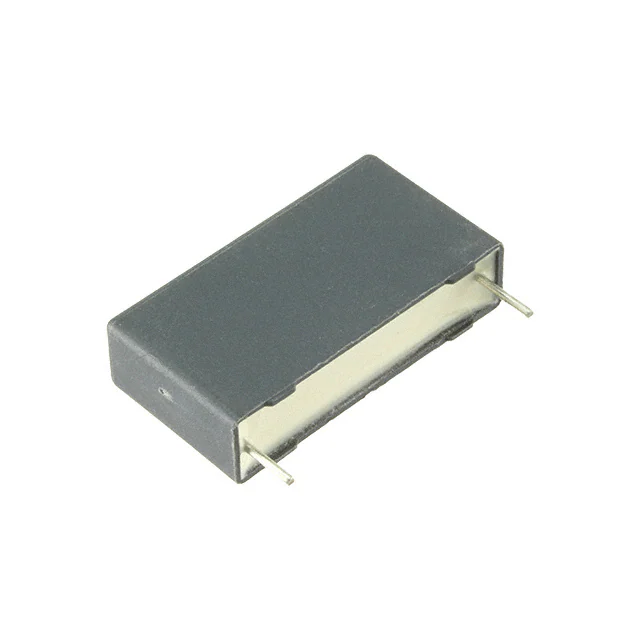

224MKP275KCAP FILM 0.22UF 10% 310VAC RAD |
74,261 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.583" (14.80mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32529C0105J006FILM CAP MKT BOX 1.UF 5% 63VDC L |
11,399 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins - Long Leads | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
MKP2D024701C00JSSDCAP FILM 0.047UF 5% 100VDC RAD |
6,998 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
MKS2C031001A00JC00CAP FILM 0.1UF 5% 63VDC RADIAL |
5,348 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R413F147000M1MCAP FILM 4700PF 20% 1KVDC RADIAL |
2,635 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32671L6333J000CAP FILM 0.033UF 5% 630VDC RAD |
2,229 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | High Temperature |
.jpg)
|
224MMR400KCAP FILM 0.22UF 10% 400VDC RAD |
2,211 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECQ-E2474JBCAP FILM 0.47UF 5% 250VDC RADIAL |
1,509 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484" L x 0.244" W (12.30mm x 6.20mm) | 0.488" (12.40mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
B32021A3102K000CAP FILM 1000PF 10% 1.5KVDC RAD |
38,418 |
|
Datasheet |
Radial | 1000 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32923C3474K000CAP FILM 0.47UF 10% 630VDC RAD |
10,220 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32522E6154J000CAP FILM 0.15UF 5% 400VDC RADIAL |
8,087 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
MKS4G031003F00KI00CAP FILM 0.1UF 10% 400VDC RADIAL |
5,836 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
.jpg)
|
ECH-U1H822GX5CAP FILM 8200PF 2% 50VDC 1206 |
4,354 |
|
Datasheet |
1206 (3216 Metric) | 8200 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKS2C031001A00JA00CAP FILM 0.1UF 5% 63VDC RADIAL |
4,004 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R76MI31005050JFILM, RADIAL, PULSE, DOUBLE META |
2,750 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E6563KFCAP FILM 0.056UF 10% 630VDC RAD |
1,686 |
|
Datasheet |
Radial | 0.056 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.213" W (18.50mm x 5.40mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
