Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UBAF103MCAP FILM 0.01UF 20% 300VAC RADIA |
3,601 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R82DC4150AA60JCAP FILM 1.5UF 5% 63VDC RADIAL |
3,263 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
.jpg)
|
474MMR400KCAP FILM 0.47UF 10% 400VDC RAD |
27,665 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
MKS2D033301E00JSSDCAP FILM 0.33UF 5% 100VDC RADIAL |
7,479 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2D034701E00KC00CAP FILM 0.47UF 10% 100VDC RAD |
5,004 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
-H-2.jpg)
|
ECW-U1682JX5CAP FILM 6800PF 5% 100VDC 1210 |
3,475 |
|
Datasheet |
1210 (3225 Metric) | 6800 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKS4B032202A00JA00CAP FILM 0.22UF 5% 50VDC RADIAL |
3,361 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.098" W (10.00mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECQ-E6154KFCAP FILM 0.15UF 10% 630VDC RAD |
2,242 |
|
Datasheet |
Radial | 0.15 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
MKP1U012204B00JSSDCAP FILM 2200PF 5% 2KVDC RAD |
2,230 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
B32021A3472M000CAP FILM 4700PF 20% 1.5KVDC RAD |
47,772 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32672L8822J000CAP FILM 8200PF 5% 2KVDC RADIAL |
30,446 |
|
Datasheet |
Radial | 8200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

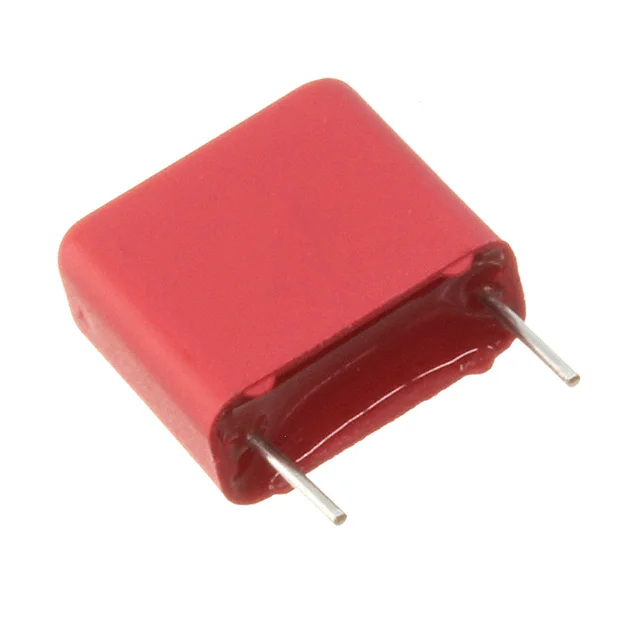

MKS4G032203G00KSSDCAP FILM 0.22UF 10% 400VDC RAD |
13,494 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32922H3104MCAP FILM 0.1UF 20% 630VDC RADIAL |
10,993 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32652A0223J006FILM CAP MKP BOX 22NF 5% 1000VDC |
7,387 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins - Long Leads | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT; Snubber | AEC-Q200 | Low ESL |
|
|
B32021A3472M026FILM CAP Y2 MKP 4.7NF 20% 300VAC |
7,095 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins - Long Leads | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKS2B033301A00MSSDCAP FILM 0.33UF 20% 50VDC RADIAL |
5,628 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2C033301C00JI00CAP FILM 0.33UF 5% 63VDC RADIAL |
5,446 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECH-U1H123GX5CAP FILM 0.012UF 2% 50VDC 1210 |
3,535 |
|
Datasheet |
1210 (3225 Metric) | 0.012 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
R463I322000M2KCAP FILM 0.22UF 10% 630VDC RAD |
3,006 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32522N6334J000CAP FILM 0.33UF 5% 450VDC RADIAL |
2,950 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 200V | 450V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
