Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS2D032201C00KI00CAP FILM 0.22UF 10% 100VDC RAD |
4,811 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MKS2C034701C00MSSDCAP FILM 0.47UF 20% 63VDC RADIAL |
4,153 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.335" (8.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32621A6682J000CAP FILM 6800PF 5% 630VDC RADIAL |
3,965 |
|
Datasheet |
Radial | 6800 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32671Z6104K000CAP FILM 0.1UF 10% 630VDC RADIAL |
3,418 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
FKP1U002204B00KSSDCAP FILM 220PF 10% 2KVDC RAD |
2,432 |
|
Datasheet |
Radial | 220 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

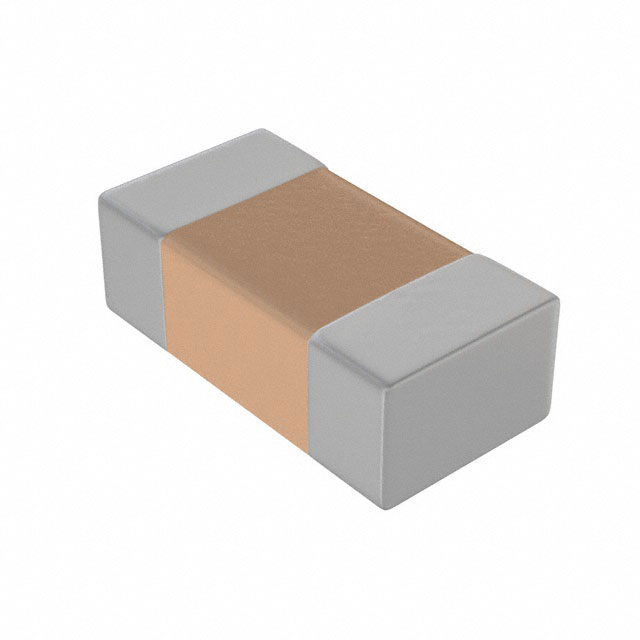

LDECA2330KA0N00CAP FILM 0.033UF 10% 50VDC 1206 |
2,166 |
|
Datasheet |
1206 (3216 Metric) | 0.033 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32652A3334J000CAP FILM 0.33UF 5% 250VDC RADIAL |
1,949 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
ECQ-UBAF102MCAP FILM 0.001UF 20% 300VAC RADI |
1,675 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
.jpg)
|
ECH-U1H333JX5CAP FILM 0.033UF 5% 50VDC 1210 |
27,655 |
|
Datasheet |
1210 (3225 Metric) | 0.033 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32642B6223JCAP FILM 0.022UF 5% 630VDC RAD |
22,391 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
PHE850EA4470MA03R17T0CAP FILM 4700PF 20% 1.25KVDC RAD |
6,866 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKS2C022201A00JC00CAP FILM 0.022UF 5% 63VDC RADIAL |
5,492 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
B32021A3222K000CAP FILM 2200PF 10% 1.5KVDC RAD |
4,348 |
|
Datasheet |
Radial | 2200 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-HA3C622HCAP FILM 6200PF 3% 1.6KVDC RAD |
4,247 |
|
Datasheet |
Radial | 6200 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.280" W (17.80mm x 7.10mm) | 0.386" (9.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
B32671L4104J000CAP FILM 0.1UF 5% 400VDC RADIAL |
2,303 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | High Temperature |
|
ECQ-E2394JBCAP FILM 0.39UF 5% 250VDC RADIAL |
2,159 |
|
Datasheet |
Radial | 0.39 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484" L x 0.224" W (12.30mm x 5.70mm) | 0.469" (11.90mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECH-U1C104JB5CAP FILM 0.1UF 5% 16VDC 1210 |
52,246 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
.jpg)
|
ECH-U1C333JX5CAP FILM 0.033UF 5% 16VDC 1206 |
18,144 |
|
Datasheet |
1206 (3216 Metric) | 0.033 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
450MPK105JCAP FILM 1UF 5% 450VDC RADIAL |
15,978 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | - | - |
|
|
B32652A3224J000CAP FILM 0.22UF 5% 250VDC RADIAL |
8,758 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
