Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R71XF347050H0MFILM, RADIAL, PULSE, SINGLE META |
5,681 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 160V | 450V | Polypropylene (PP), Metallized | 42 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R76UI01004040JCAP FILM 100PF 5% 2KVDC RADIAL |
5,179 |
|
Datasheet |
Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MKS4C034702C00KSSDCAP FILM 0.47UF 10% 63VDC RADIAL |
5,171 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP4F031002D00KSSDMKP 4 0.1 F 250 VDC 4.5X9.5X10.3 |
4,305 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC233620473CAP FILM 0.047UF 20% 630VDC RAD |
4,249 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426DJ6100JR05CAP FILM 0.1UF 5% 100VDC RADIAL |
2,745 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UBAF332V5CAP FILM 0.0033UF 10% 300VAC RAD |
1,840 |
|
Datasheet |
Radial | 3300 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R75PI310050H3JCAP FILM 0.1UF 5% 630VDC RADIAL |
1,726 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2105JBCAP FILM 1UF 5% 250VDC RADIAL |
1,403 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602" L x 0.276" W (15.30mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
 Series Style B.jpg)
|
ECW-F2W224JAQCAP FILM 0.22UF 5% 450VDC RADIAL |
60,770 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.673" (17.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-H16103JVCAP FILM 10000PF 5% 1.6KVDC RAD |
52,593 |
|
Datasheet |
Radial | 10000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.315" W (23.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
B32922C3334M289CAP FILM 0.33UF 20% 630VDC RAD |
46,181 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32522C3474J000CAP FILM 0.47UF 5% 250VDC RADIAL |
11,277 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MKS0C024700B00MSSDCAP FILM 0.047UF 20% 63VDC RAD |
9,657 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
B32922X2684K000FILM CAP MKP X2 - COMPACT, 0.68U |
5,647 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKP4J024702F00KSSDCAP FILM 0.047UF 10% 630VDC RAD |
5,485 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.406" L x 0.224" W (10.30mm x 5.70mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
MKX2AW31004B00KSSDCAP FILM 0.1UF 10% 630VDC RAD |
5,258 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS0C022200B00MSSDCAP FILM 0.022UF 20% 63VDC RAD |
4,527 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
.jpg)
|
105MMR250KCAP FILM 1UF 10% 250VDC RADIAL |
4,114 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

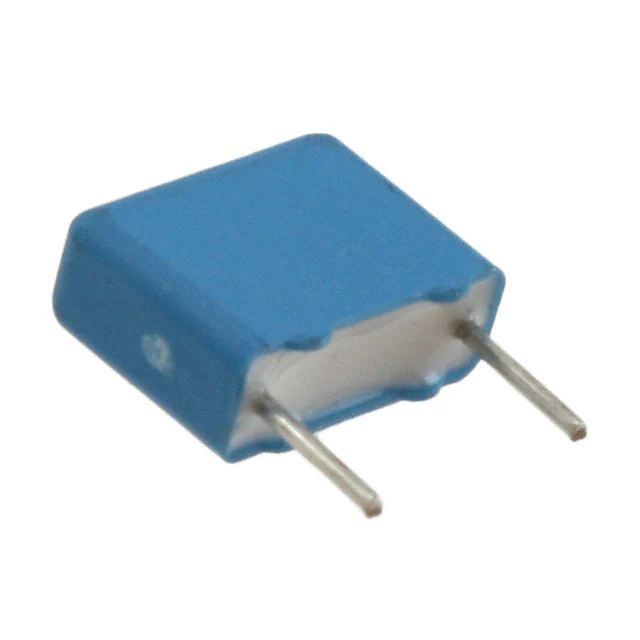

PHE450KK5100JR05CAP FILM 10000PF 5% 400VDC RAD |
4,091 |
|
Datasheet |
Radial | 10000 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
