Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237021473CAP FILM 0.047UF 10% 100VDC RAD |
2,948 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
MKP2D031501H00KSSDCAP FILM 0.15UF 10% 100VDC RAD |
1,061 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
B32922D3334K000CAP FILM 0.33UF 10% 630VDC RAD |
88,819 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32021A3222M289CAP FILM 2200PF 20% 1.5KVDC RAD |
32,827 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32642B0153JCAP FILM 0.015UF 5% 1KVDC RADIAL |
13,951 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
.jpg)
|
ECH-U1H153GX5CAP FILM 0.015UF 2% 50VDC 1210 |
11,842 |
|
Datasheet |
1210 (3225 Metric) | 0.015 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
FKP0D001000B00JSSDCAP FILM 100PF 5% 100VDC RAD |
4,761 |
|
Datasheet |
Radial | 100 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Style Straight 18x7.jpg)
|
ECW-FA2J224JCAP FILM 0.22UF 5% 630VDC RADIAL |
4,507 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.280" W (18.20mm x 7.10mm) | 0.484" (12.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32652A2102J000CAP FILM 1000PF 5% 2KVDC RADIAL |
4,018 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32621A6273K289CAP FILM 0.027UF 10% 630VDC RAD |
2,540 |
|
Datasheet |
Radial | 0.027 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MMK5105K100J06L16.5TR18CAP FILM 1UF 10% 100VDC RADIAL |
2,170 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
FKP1T006804B00KSSDCAP FILM 680PF 10% 1.6KVDC RAD |
2,110 |
|
Datasheet |
Radial | 680 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6334KFCAP FILM 0.33UF 10% 630VDC RAD |
1,922 |
|
Datasheet |
Radial | 0.33 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.307" W (26.00mm x 7.80mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

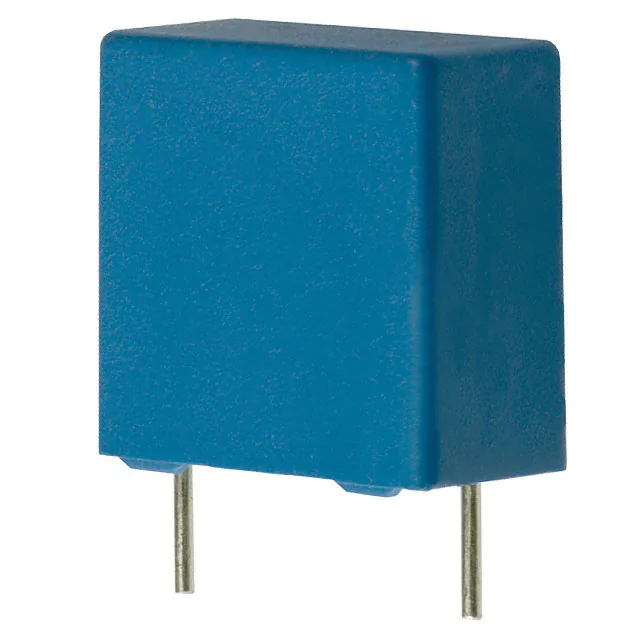

B32932A3104M000CAP FILM 0.1UF 20% 305VAC RADIAL |
1,489 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R46KN31500001KCAP FILM 0.15UF 10% 560VDC RAD |
1,348 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32021A3103M000CAP FILM 10000PF 20% 1.5KVDC RAD |
132,002 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32021A3472K000CAP FILM 4700PF 10% 1.5KVDC RAD |
42,527 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
PHE426HJ6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
28,122 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32932A3154K000CAP FILM 0.15UF 10% 305VAC RAD |
21,568 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32652A4104J000CAP FILM 0.1UF 5% 400VDC RADIAL |
9,029 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
