Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AEHBW5750A3NJCAP FILM 75UF 5% 600VDC RADIAL |
165 |
|
Datasheet |
Radial - 4 Leads | 75 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
F340X158248KYP2T0CAP FILM 8.2UF 10% 800VDC RADIAL |
131 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
C870ZF35500AA0JCAP FILM 50UF 5% 470VAC RADIAL |
179 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
C4AEGBW5500A3LJCAP FILM 50UF 5% 450VDC RADIAL |
108 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKP386M447250JT4CAP FILM 0.47UF 5% 2.5KVDC SCREW |
340 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
MKP1848640094Y5CAP FILM 40UF 5% 900VDC RADIAL |
232 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
MKT1820682015CAP FILM 82UF 10% 100VDC RADIAL |
137 |
|
Datasheet |
Radial | 82 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820710065CAP FILM 100UF 10% 63VDC RADIAL |
526 |
|
Datasheet |
Radial | 100 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
32FD3705A-FCAP FILM 5UF 10% 370VAC RADIAL |
3 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.156" L x 1.313" W (54.76mm x 33.35mm), Lip | 2.440" (61.98mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
BLC550J701B4FCAP FILM 55UF 5% 700VDC RADIAL |
169 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | 230V | 700V | Polypropylene (PP), Metallized | 2.9 mOhms | -45°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
MKP1847H62035JY5CAP FILM 20UF 5% 700VDC RADIAL |
189 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
R60DW6100AA50KCAP FILM 100UF 10% 63VDC RAD |
112 |
|
Datasheet |
Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive | - | - |
|
940C16W1P5K-FCAP FILM 1.5UF 10% 1.6KVDC AXIAL |
510 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" Dia x 2.126" L (42.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4AQJEW6110M3AJCAP FILM 110UF 5% 700VDC RADIAL |
102 |
|
Datasheet |
Radial - 4 Leads | 110 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
205PPA152KSCAP FILM 2UF 10% 1.5KVDC AXIAL |
129 |
|
Datasheet |
Axial | 2 µF | ±10% | 600V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 85°C | Through Hole | 1.654" Dia x 2.323" L (42.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

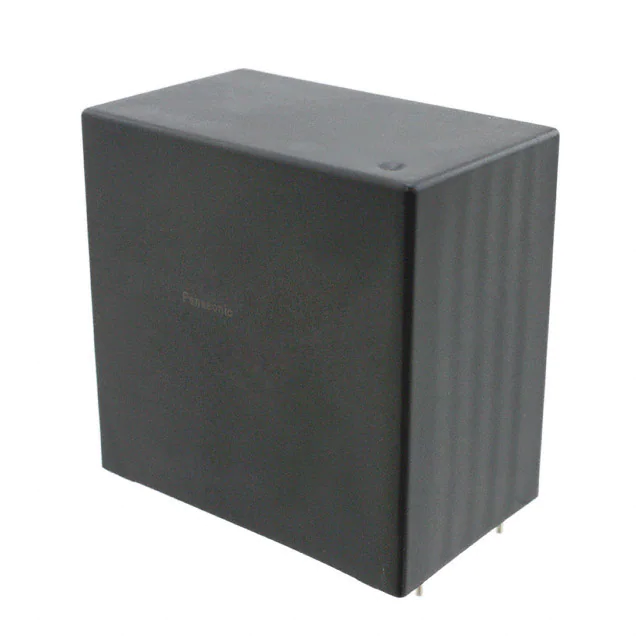

EZP-E50117MTACAP FILM 110UF 10% 500VDC RADIAL |
125 |
|
Datasheet |
Radial - 4 Leads | 110 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.224" (56.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|

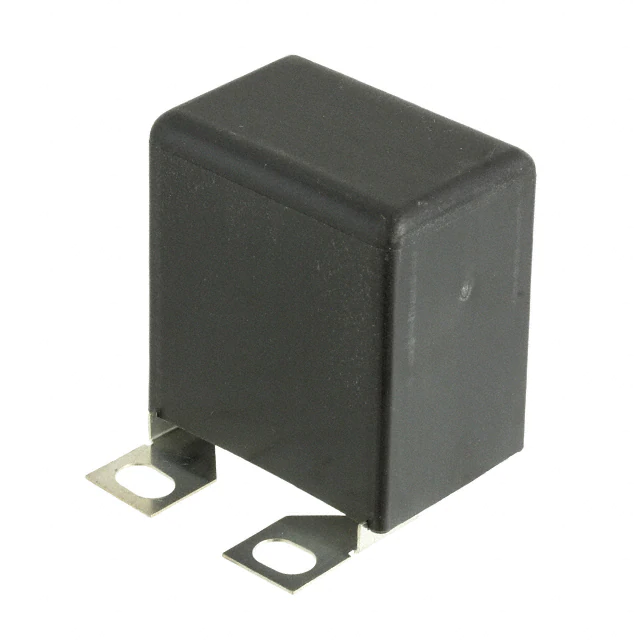

MKP386M520125JT4CAP FILM 2UF 5% 1.25KVDC SCREW |
220 |
|
Datasheet |
Rectangular Box | 2 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | - | Low ESR |
|
C878AG35800AA0JCAP FILM 80UF 5% 470VAC RADIAL |
188 |
|
Datasheet |
Radial, Can | 80 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
23FD3750A-FCAP FILM 50UF 10% 370VAC RADIAL |
322 |
|
Datasheet |
Radial, Can | 50 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.125" Dia (53.98mm), Lip | 4.090" (103.88mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
B32361A4406J080CAP FILM 40UF 5% 480VAC RADIAL |
223 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
