Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C878AG35600AA0JCAP FILM 60UF 5% 470VAC RADIAL |
297 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
EZP-V60406MTBCAP FILM 40UF 10% 600V RADIAL |
269 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.083" W (41.50mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C870DF35300AA1JCAP FILM 30UF 5% 470VAC RADIAL |
350 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
106PHC250KCAP FILM 10UF 10% 250VDC AXIAL |
172 |
|
Datasheet |
Axial | 10 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Through Hole | 0.945" Dia x 1.339" L (24.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
MKP1848620094P5CAP FILM 20UF 5% 900VDC RADIAL |
178 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
C4AEJBW5300A3LJCAP FILM 30UF 5% 700VDC RADIAL |
419 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
EZP-E50556MTACAP FILM 55UF 10% 500VDC RADIAL |
572 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B32320I8117K000110MFD 800V PP 50X95 PBT 5 PIN |
190 |
|
Datasheet |
Radial, Can - 5 Lead | 110 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 3.740" (95.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
PMB2124150KSRCAP FILM 1.5UF 10% 1.2KVDC SCREW |
194 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
564PMB122KSP2CAP FILM 0.56UF 1.2KVDC CHAS MT |
1,218 |
|
Datasheet |
Rectangular Box | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C274AC35200SA0JCAP FILM 20UF 5% 470VAC RADIAL |
251 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

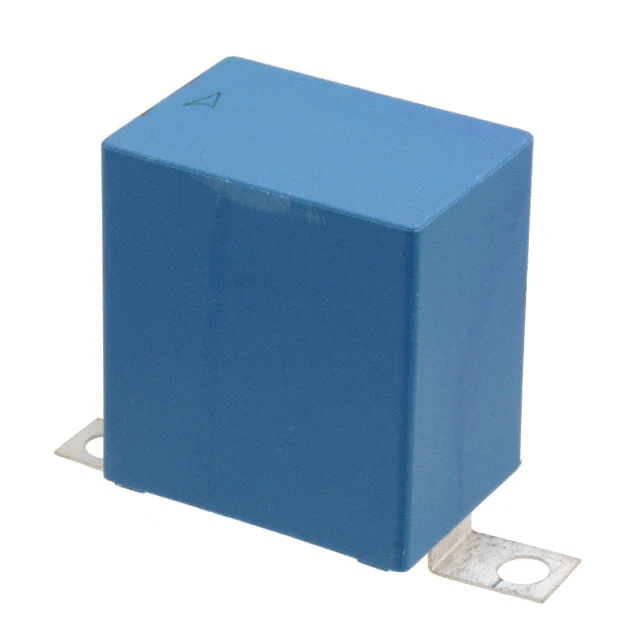

B32656S2104J564CAP FILM 0.1UF 5% 2KVDC SCREW |
984 |
|
Datasheet |
Rectangular Box | 0.1 µF | ±5% | 800V | 2000V (2kV) | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.984" (25.00mm) | Snubber | - | Low ESL |
|
32FD3702A-FCAP FILM 2UF 10% 370VAC RADIAL |
1,058 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.156" L x 1.313" W (54.76mm x 33.35mm), Lip | - | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
C4ASMBW4200A3HJCAP FILM 2UF 5% 850VDC RADIAL |
238 |
|
Datasheet |
Radial - 4 Leads | 2 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Snubber | - | - |
|
|
EZP-E50406MTACAP FILM 40UF 10% 500VDC RADIAL |
114 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
PMB2104200KVRCAP FILM 2UF 10% 1KVDC SCREW |
359 |
|
Datasheet |
Rectangular Box | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4BSYBX3220ZAFJCAP FILM 0.22UF 5% 3KVDC SCREW |
154 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AEOBW5200A3LJCAP FILM 20UF 5% 900VDC RADIAL |
164 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKP1839610164CAP FILM 10UF 5% 160VDC AXIAL |
118 |
|
Datasheet |
Axial | 10 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.866" Dia x 1.634" L (22.00mm x 41.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
C4AQIBW5600M3NJCAP FILM 60UF 5% 800VDC RADIAL |
272 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
