Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C276CCF5250LG0JCAP FILM 25UF 5% 470VAC RADIAL |
197 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
C4AQJBW5500M3OJCAP FILM 50UF 5% 700VDC RADIAL |
121 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
FFB14D0336K--CAP FILM 33UF 10% 75VDC RADIAL |
490 |
|
Datasheet |
Radial | 33 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
C4ATDBW5300A30JCAP FILM 30UF 5% 250VDC RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4ATFBW5200A3LJCAP FILM 20UF 5% 400VDC RADIAL |
224 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

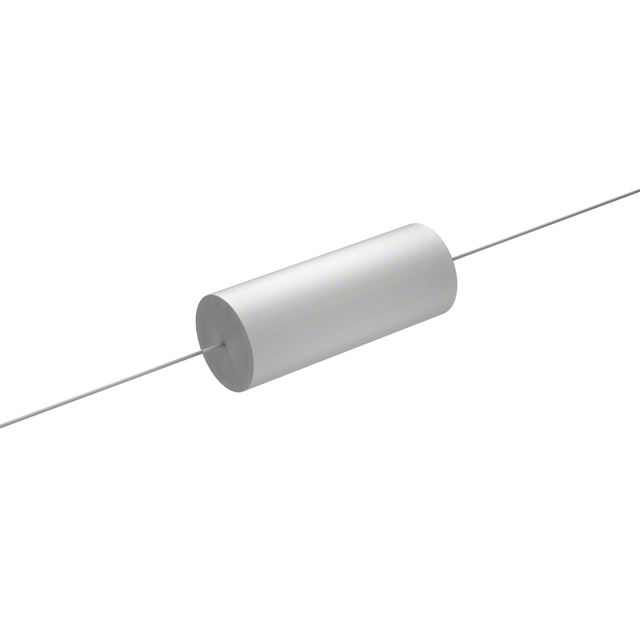

MMWA4W2K-FCAP FILM 2UF 10% 400VDC AXIAL |
380 |
|
Datasheet |
Axial | 2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.669" Dia x 1.748" L (17.00mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
|
C4BSYBX3330ZALJCAP FILM 0.33UF 5% 3KVDC SCREW |
122 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
B32678G3476K000CAP FILM 47UF 10% 300VDC RADIAL |
179 |
|
Datasheet |
Radial | 47 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32718H5806K000MKP DC FILTERING - 500VDC, 80UF |
499 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
C4ATHBW5200A3NJCAP FILM 20UF 5% 600VDC RADIAL |
289 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
224PPA302KSCAP FILM 0.22UF 10% 3KVDC AXIAL |
107 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -55°C ~ 85°C | Through Hole | 1.142" Dia x 2.323" L (29.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C878BF35460SA0JCAP FILM 46UF 5% 470VAC RADIAL |
112 |
|
Datasheet |
Radial, Can | 46 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C276CCF5300LG0JCAP FILM 30UF 5% 470VAC RADIAL |
187 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
PMB2124200KVRCAP FILM 2UF 10% 1.2KVDC SCREW |
418 |
|
Datasheet |
Rectangular Box | 2 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32758G7556K000CAP FILM 55UF 10% 560VDC RADIAL |
210 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | - |
|

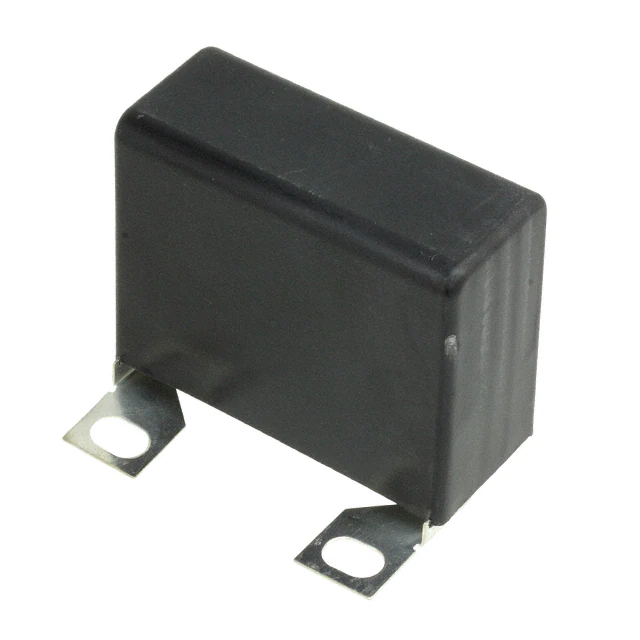

MKP386M530125YT4CAP FILM 3UF 5% 1.25KVDC SCREW |
185 |
|
Datasheet |
Rectangular Box | 3 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 0.984" W (58.00mm x 25.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
940C20P56K-FCAP FILM 0.56UF 10% 2KVDC AXIAL |
321 |
|
Datasheet |
Axial | 0.56 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.220" Dia x 2.126" L (31.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FFB56L0475K--CAP FILM 4.7UF 10% 1.1KVDC RAD |
136 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
940C16P68K-FCAP FILM 0.68UF 1.6KVDC AXIAL |
126 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.280" Dia x 1.811" L (32.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
C878BG35600SA0JCAP FILM 60UF 5% 470VAC RADIAL |
363 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
